ASSEMBLY INFORMATION
9
117
EN
5.
Perform the operations described in Par. 8.5.4.
6.

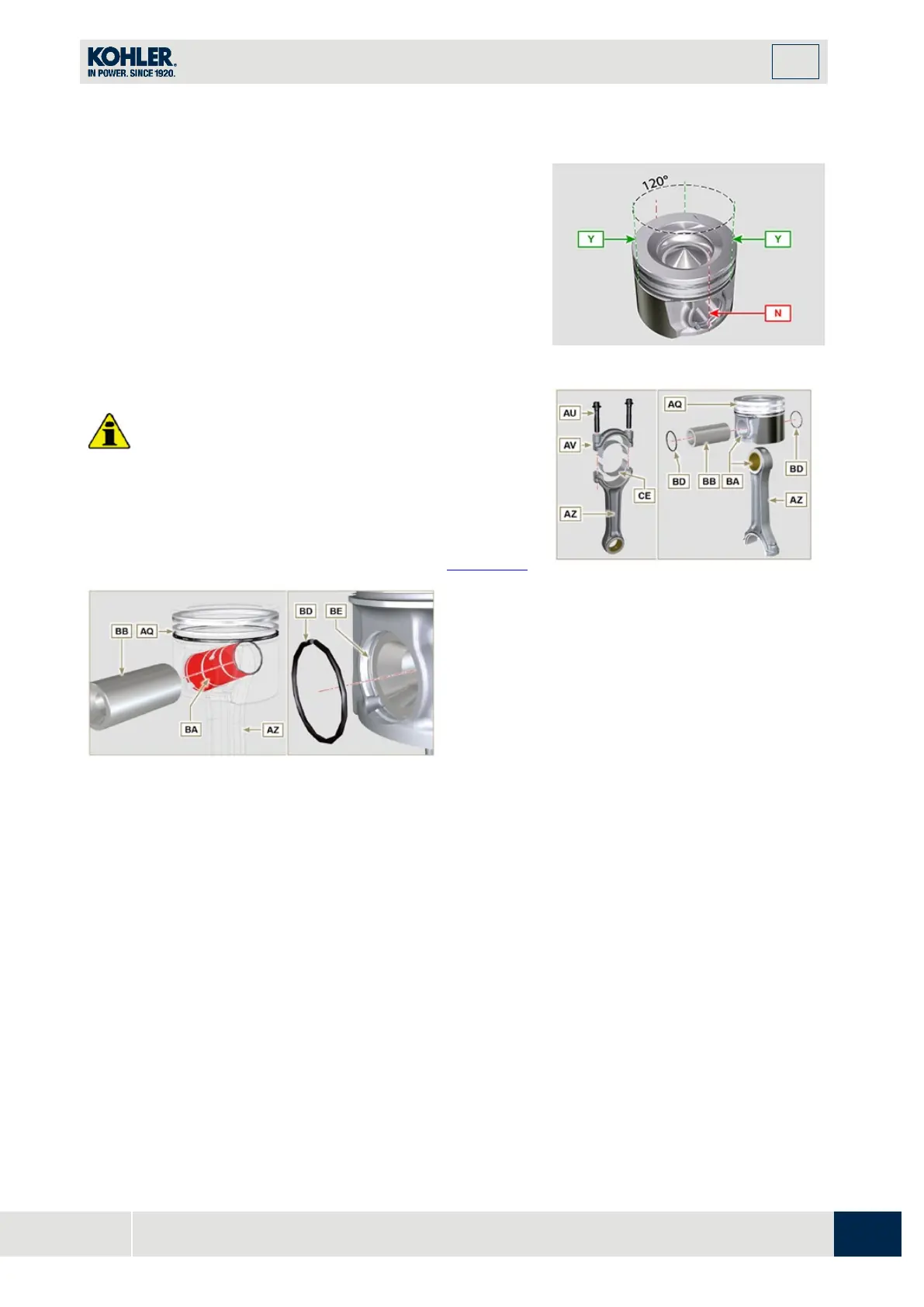

Position the segment openings with a 120° angle
between them (Y).
NOTE:
do not use the segment opening with the pin hole (
N
)
7.
Lubricate the piston skirt and piston rings with oil.
Fig 9.11
Important
•
Before proceeding to the assembly of the piston and
connecting rod, carry out the checks described in Par.
8.5.1.
•
Always replace the bearings CE after each assembly.
•
Mate components respecting references at Par. 7.13.5.
1.
Loosen the screws AU and remove the connecting rod
cap AV.
2.
Fit the new bearings CE.
3.
Insert the connecting rod AZ into the piston AQ an
d
al
ign the seats BA.
4.
Insert the gudgeon pin BB into the seat BA for the
assembly of the connecting rod and piston unit.
5.
Insert the lock rings BD inside the seat BE of the piston
AQ to
lock the gudgeon pin BB.
Fig 9.13
Fig 9.12
