Kohler KDI 2504TM

TECHNICAL INFORMATION
2
23
EN

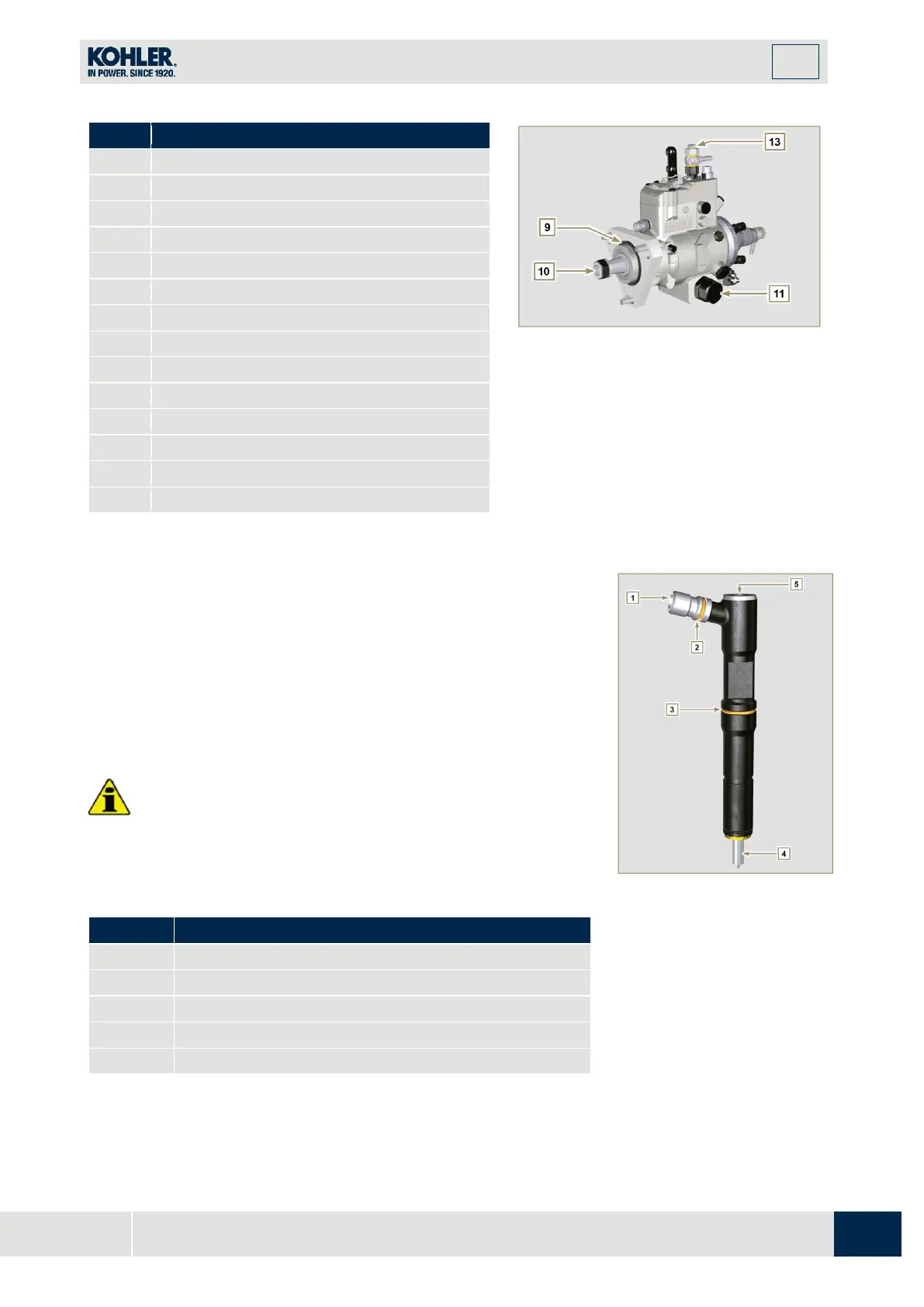

POS.
COMPONENTS DESCRIPTION
1
Accelerator lever
2
Min Adjustment
3
Max Adjustment
4
Torque adjustment
5
High pressure delivery to injectors
6
Return to fuel tank
7
Inlet suction fuel
8
Cold starting device
9
Gasket
10
Shaft
11
Advance settings (locked)
12
Pump identification label
13
Air bleeding screw
14
Pump control shaft blocking device.
Fig 2.7
2.9.4 Injector
It is a device used to introduce fuel, in the form of one or more jets that
are adequately pulverised and suitably oriented directly into the
combustion chamber. They consist of a metallic body that internally
provides a mobile element that acts on the needle: this, rising against
the action of a calibrated spring, allows the release of fuel under high
pressure.
Opening pressure: 260-268 bar (3770-3886 PSI)
Important
•
The injectors are calibrated individually.
•
Fuel contamination causes serious damage to the injection
system.
Tab 2.15
POS.
COMPONENTS DESCRIPTION
1
Inlet fuel
2
Gasket
3
Gasket
4
Nozzle
5
Hole for fuel return to fuel tank
Fig 2.8
