Kohler KDI 2504TM

INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
6
67
EN
4. Undo the capscrew
K
and shift the slotted plate
AB
in the direction of arrow
AA
.
5. Tighten screw
K
(tightening torque to
5.5 Nm
)
.
T
he injection pump is unlocked.
6. Remove the tool
ST_30
and
ST_34
.

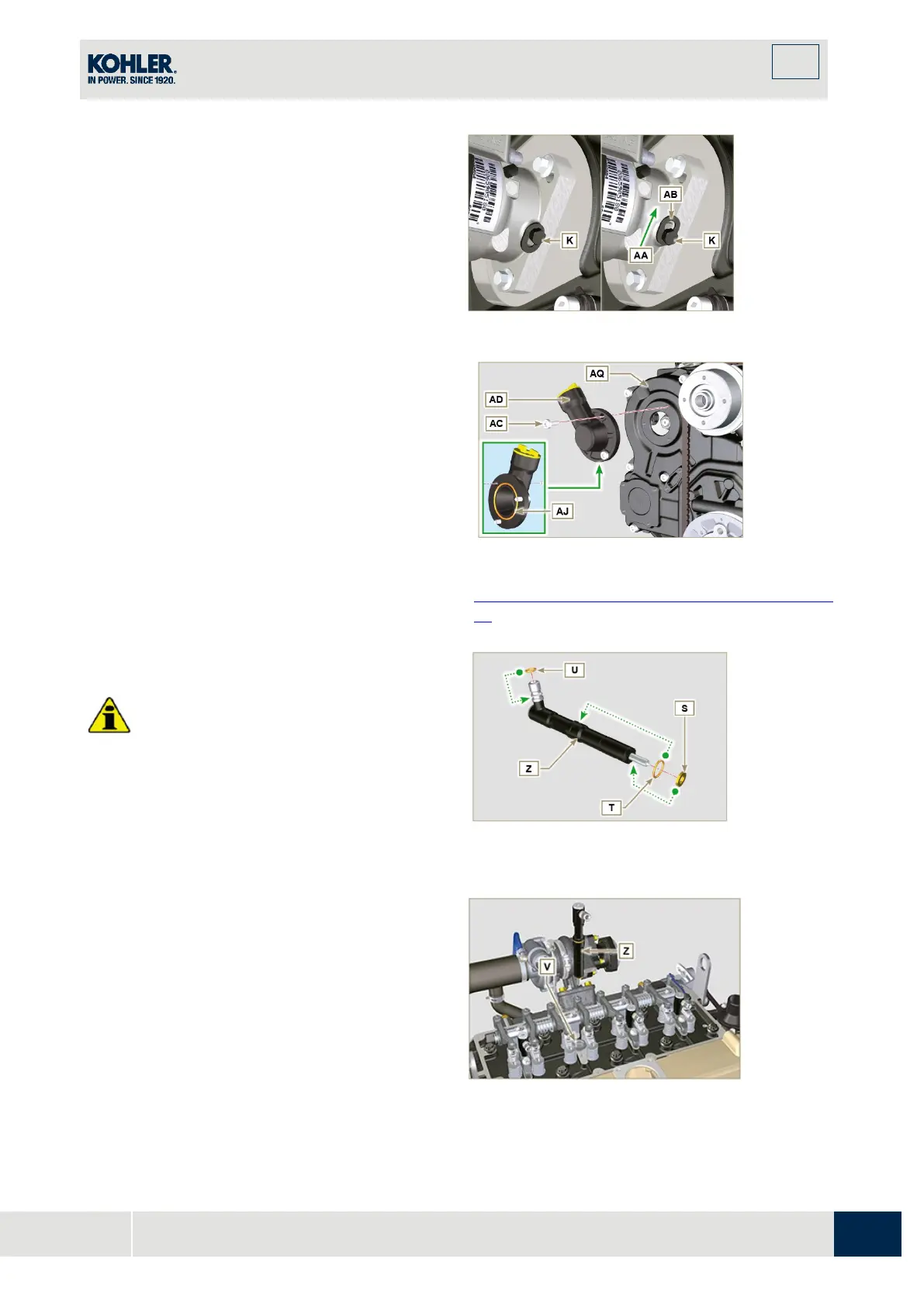

Fig 6.18
NOTE
: Always replace the gasket
AJ
after each
assembly.
7. P
osition the gasket
AJ
in the set on the flange
AD
.
8. Fix the flange
AD
on the crankcase
AQ
with the
screws
AC
(tightening torque at
10 Nm
).
Fig 6.19
NOTE
: Click on the right to play the procedure.
https://www.youtube.com/embed/XsOMihldXno?rel
=0
6.1.7 Injector assembly
Important
•
To prevent damaging the injection system,
the protection caps (Par. 2.9.7) must be
removed during assembly.
1.
Lubricate the gaskets U, T, S and fit them
on the injector Z.
Fig 6.20
2. Fit the injector
Z
in the sleeve
V
.
Fig 6.21
