INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
6
69
EN

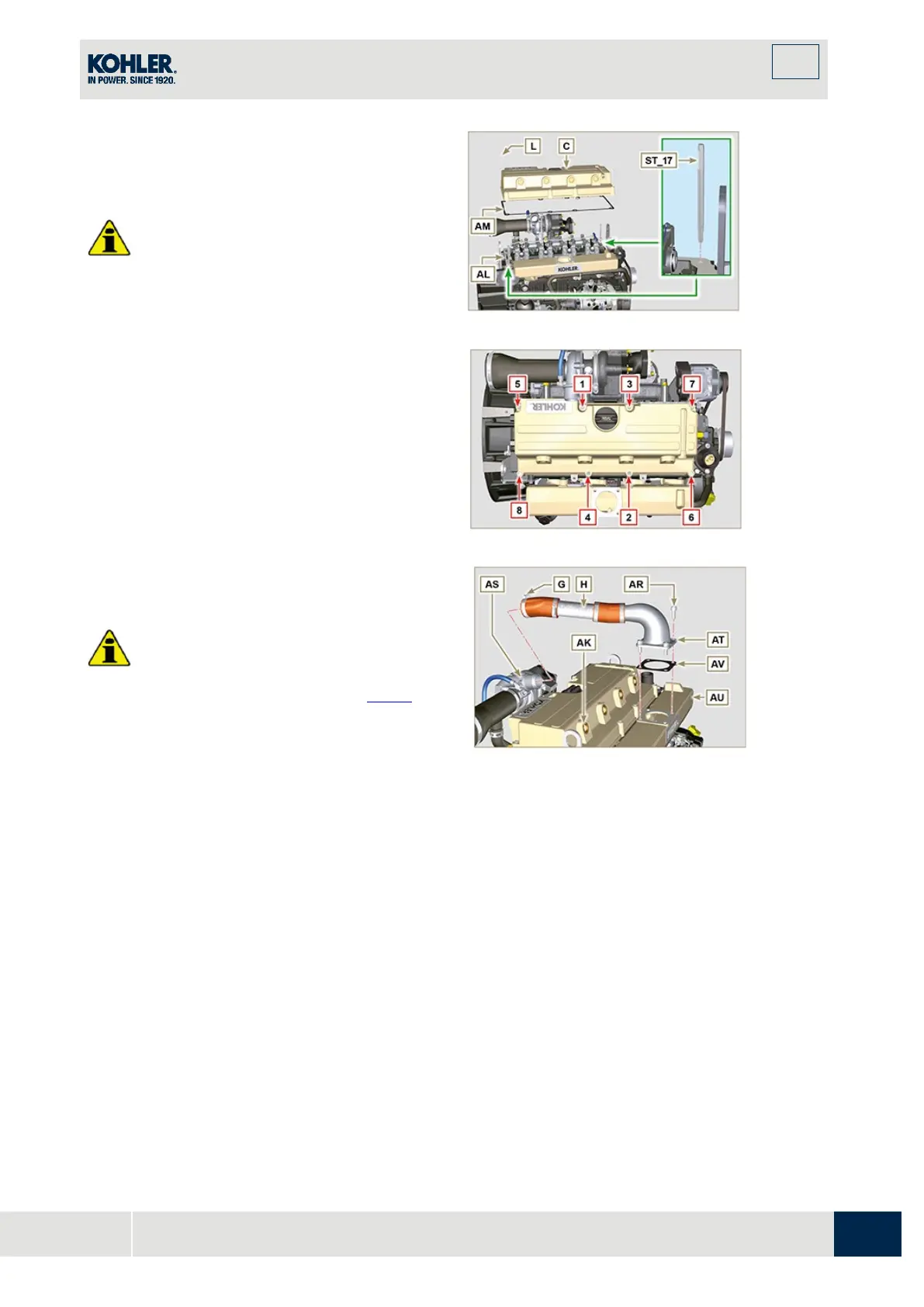

6.1.9 Assembly Rocker arm cover
Important
•
The gasket AM between the rocker arm
cover and the cylinder head must always b
e
replaced every time it is disassembled.
1.
Position the two guide pins ST_17 befor
e
m
ounting the rocker arm cover.
2.
Position the gasket AM on the head AL
respecting the fastening screw holes L.
3.
Attach the rocker arm cover C on the hea
d
AL w
ith the screw L adhering to the
tightening sequence shown in Fig. 6.26.
4.
Connect pipe H and tighten the clamp G.
5.
Connect tube H to turbine AS and tighte
n
cl
amp G.
6.
Fasten flange AT by means of capscrews
AR to manifold AU, inserting gasket AV.
Im
portant
•
Always replace the gaskets AK (ST_36) -
AV after each disassembly.
Fig 6.25
Fig 6.26
Fig 6.28
