4-18
bizhub PRESS C71cf
4

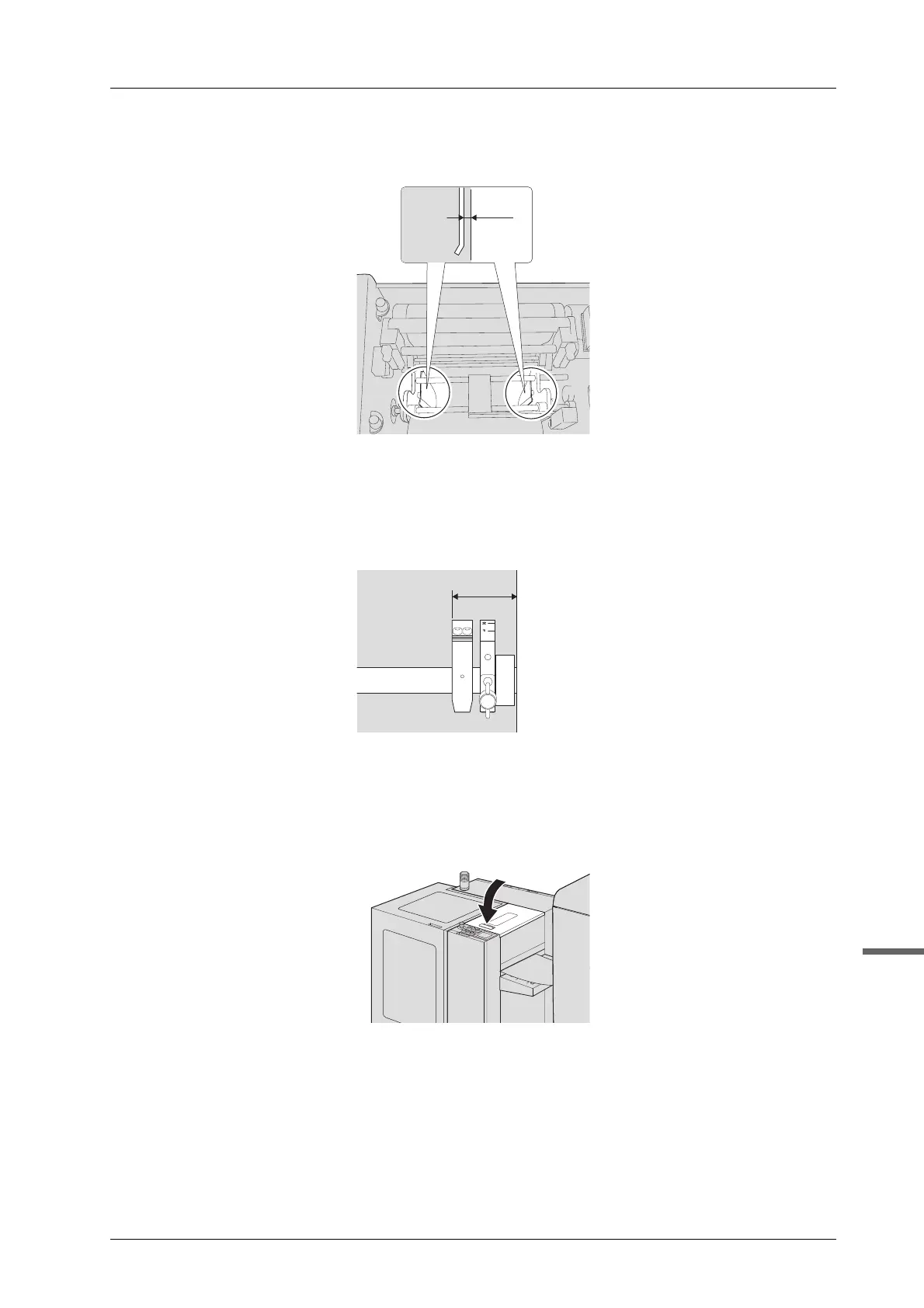

E Open the top cover of Roll Winder RW-201 and make sure that the side plates are
positioned 2 mm (±1 mm) / 0.08" (±0.04") away from the edges of the media.
F Make sure that the media guide (back side) is positioned 105 mm (±0.25 mm) / 4.13"
(±0.01") away from the metal plate.
Position the media guide (front side) 0.5 mm (±0.25 mm) / 0.02" (±0.01") away from
the media.
G Close the top cover of Roll Winder RW-201.
105
mm
To Next Page
