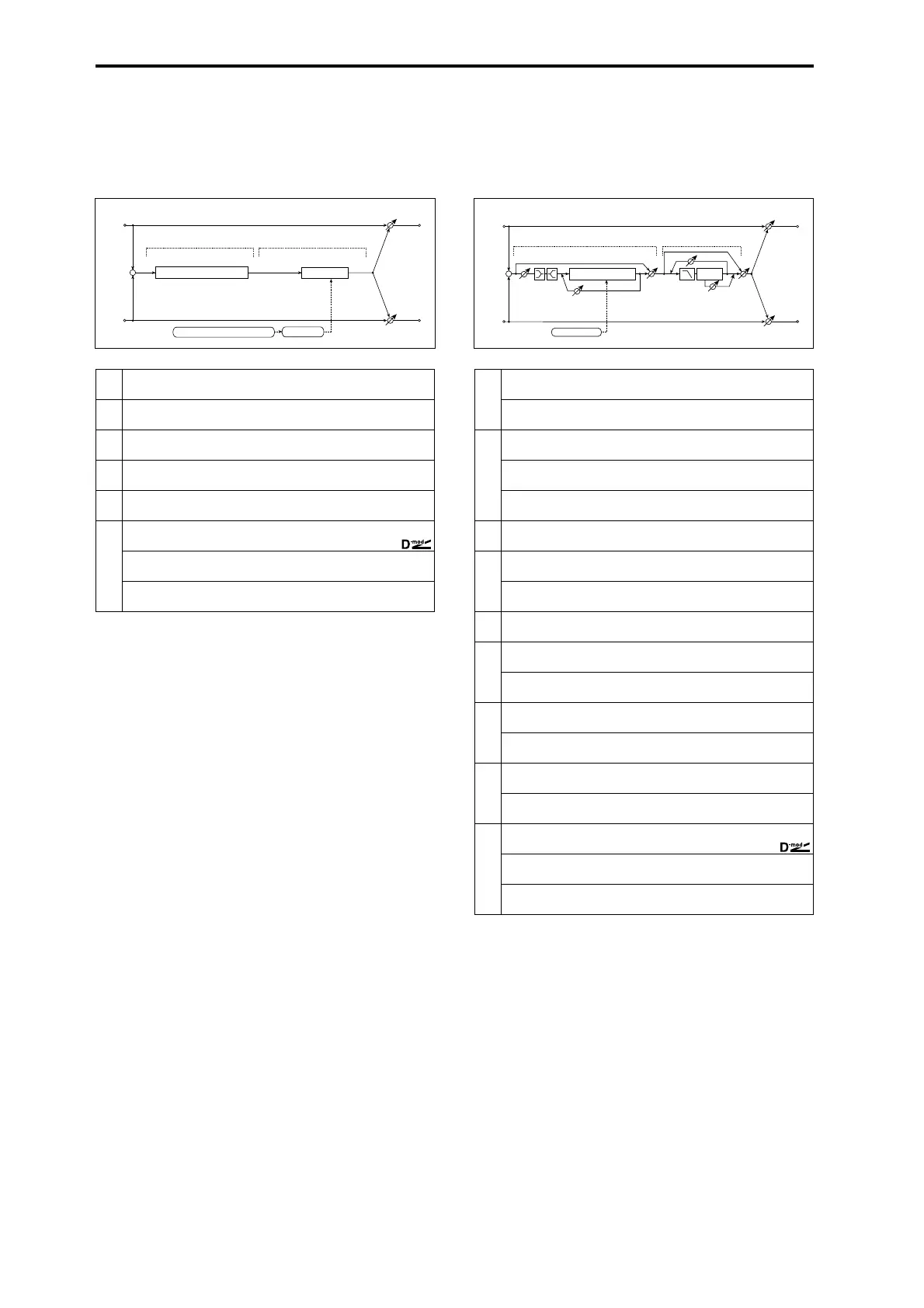

086: AmpSim–Trml
(Amp Simulation – Tremolo)
This effect combines a mono-type amp simulation and a trem-
olo.
087: Cho/Fl–M.Dly
(Chorus/Flanger – Multitap Delay)
This effect combines a mono-type chorus/flanger and a mult-
itap delay.
a
[AMP] Amplifier Type
Selects the type of guitar amplifier
SS, EL84, 6L6
b
[TRML] LFO Wave (LFO Waveform) Triangle, Sine, Vintage, Up, Down
Selects LFO Waveform
☞ Fx:032
c
LFO Shape –100...+100
Determines how much the LFO waveform is changed
☞ Fx:020
d
Freq (LFO Frequency)
Sets the LFO speed
0.02...20.00Hz
e
Depth
Sets the depth of LFO modulation
0...100
f
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Amp Simulation Tremolo
Amp Simulation Filter
Tremolo
LFO: Tri/Sin/Vintage/Up/Down
LFO Shape
a
[CH/FL] LFO (LFO Waveform)
Selects the LFO waveform of the chorus/flanger
Tri, Sine
F (LFO Frequency)
Sets the LFO speed
0.02...20.00Hz
b
Dly (Delay Time)
Sets the delay time
0.0...50.0ms
Dep (Depth)
Sets the depth of LFO modulation
0...100
Fb (Feedback)
Sets the feedback amount
–100...+100
☞ Fx:020
c
Pre EQ Trim
Sets the EQ input level
0...100
d
LoEQ (Pre Low EQ Gain)
Sets the gain of Low EQ
–15...+15dB
HiEQ (Pre High EQ Gain)
Sets the gain of High EQ
–15...+15dB
e
C/F W/D (Cho/Flng Wet/Dry) –Wet...–2:98, Dry, 2:98...Wet
Sets the effect balance of the chorus/flanger
☞ Fx:010, 020
f
[DLY]T1 (Tap1 Delay)
Sets the Tap1 delay time
0...680ms
T2 (Tap2 Delay)
Sets the Tap2 delay time
0...680ms
g
T1 Level (Tap1 Level)
Sets the Tap1 output level
0...100
☞ Fx:045
T2 Fb (Tap2 Feedback)
Sets the Tap2 feedback amount
–100...+100
h
Dly W/D (Delay Wet/Dry) Dry, 1:99...99:1, Wet
Sets the multitap delay effect balance
HiDamp (High Damp)
Sets the damping amount in the high range
0...100%
☞ Fx:043
i
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
LEQ HEQ
EQ
Trim
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Chorus/Flanger
Cho/Flng
Wet / Dry
Mt.Dly
Wet / Dry
Chorus/Flanger
Feedback
LFO: Tri / Sine
