Korg Triton-Rack

26

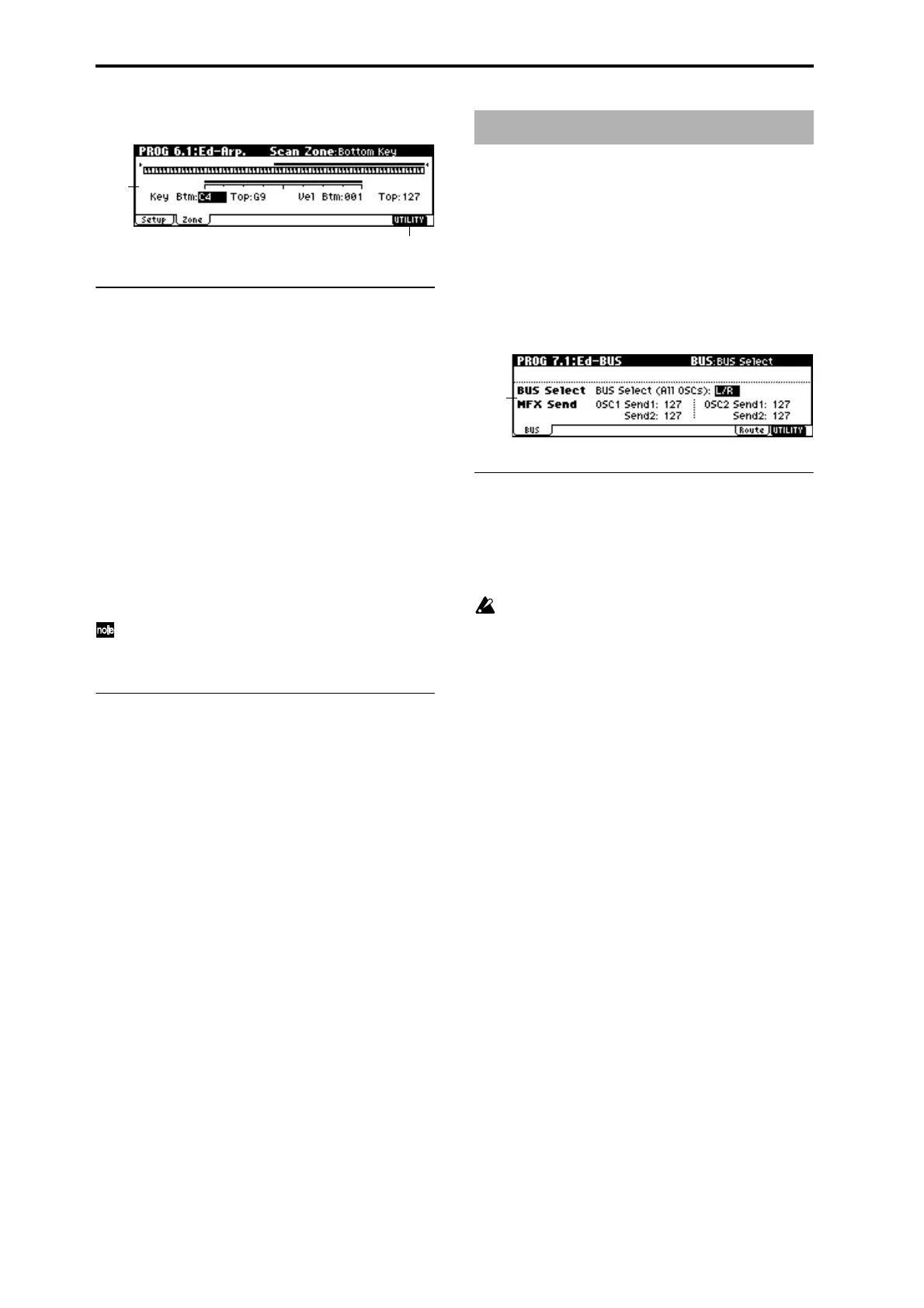

6.1–2: Zone (Scan Zone)
6.1–2a: Scan Zone
Zone Map
This shows the “Scan Zone” setting.
Key:
Btm (Bottom Key) [C–1...G9]
Top (Top Key) [C–1...G9]
These parameters specify the range of notes (keys) for which
the arpeggiator will function. “Top” is the upper limit, and
“Btm” is the lower limit.
Vel:
Btm (Bottom Velocity) [001...127]
Top (Top Velocity) [001...127]
Specifies the range of velocities for which the arpeggiator
will function. “Top” is the upper limit, and “Btm” is the
lower limit.
The note number and velocity can also be specified by
holding down the [ENTER] key and pressing a note on
the keyboard of a connected MIDI device.
■ 6.1–2b: UTILITY
☞ “Write Program” (1.1–1d), “Copy Arpeggiator” (6.1–1c)
These settings specify the bus on which the output of the
oscillator will be sent, and adjust the send levels to the mas-
ter effects.
☞ For details on insertion effects, refer to p.141 “8. Effect
Guide.”
7.1–1: BUS
The following diagram shows the LCD screen when “Mode
(Oscillator Mode)” (2.1–1a) is set to Single or Double.
7.1–1a: BUS
BUS Select
BUS Select (All OSCs)
[L/R, IFX1...5, 1...4, 1/2, 3/4, Off]
Specifies the bus to which oscillators 1 and 2 will be sent.
If this is set to 1/2 or 3/4, the oscillator pan settings (5.1–
1b, 5.2–1) will be used to output the sound in stereo
from AUDIO OUTPUT (INDIVIDUAL) 1/2 or 3/4.
When the oscillator pan is controlled by CC#10 (pan) or
AMS (Alternate Modulation Source), the sound will be
output with the pan setting that is in effect at note-on.
Unlike the case when this is set to L/R to output the
sound from (MAIN) L/MONO and R, the pan of a
sounding note will not change in realtime.
If you wish to adjust the pan in realtime during a note
and output the sound from AUDIO OUTPUT (INDI-
VIDUAL) 1/2 or 3/4, set “BUS Select” to IFX1 (or IFX2–
IFX5), set “IFX1” (or IFX2–IFX5 (7.2–1a)) to 000: No
Effect, and set the “BUS Select” (7.2–1a) after passing
through IFX to 1/2 or 3/4.
MFX Send
OSC1 Send1 [000...127]
Sets the volume (send level) at which the output of OSC1
will be sent to master effect 1. This is valid when “BUS
Select” is set to L/R or Off.
If “BUS Select” is set to IFX1, IFX2, IFX3, IFX4 or IFX5, the
send levels to master effect 1 and 2 are set by “S1
(Send1(MFX1))” and “S2 (Send2(MFX2))” (7.2–1a) after
passing through IFX 1/2/3/4/5 of the InsertFX pages.
OSC1 Send2 [000...127]
Sets the volume (send level) at which the output of OSC1
will be sent to master effect 2 (
☞“OSC1 Send1”).
OSC2 Send1 [000...127]
OSC2 Send2 [000...127]
Sets the volume (send level) at which the output of OSC2
will be sent to master effects 1 and 2. These parameters will
be valid when “Mode (Oscillator Mode)” (2.1–1a) is set to
Double and “BUS Select” is set to L/R or Off.
6.1–2a
6.1–2b
PROG 7.1: Ed–BUS
7.1–1a
