4.2–2: MIDI 2–2 (MIDI Filter 2–2)
4.2–2a: JS X/Bend as AMS, Ribbon CC#16
JS X/Bend as AMS [Off, On]
Specifies whether MIDI pitch bend messages (the X axis of
the joystick on a TRITON etc.) will be received as the AMS
(
☞p.205 “Alternate Modulation Source”) for which JS X is
selected. (This is not a filter for MIDI pitch bend message
reception.)
Ribbon CC#16 [Off, On]
Specifies whether MIDI control change message #16
(selected as assignment B for REALTIME CONTROLS [1]–
[4] knobs, or assigned to the ribbon controller of a TRITON
etc.) will be received.
■ 4.2–2b: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1d)
Specifies whether the A and B mode effects of REALTIME
CONTROLS knobs [1], [2], [3], and [4] will be transmitted
and received. The A mode of each knob is fixed as a MIDI
control message. For B mode, you can assign a message in
2.2: Ed-Ctrl.
4.3–1: MIDI 3–1 (MIDI Filter 3–1)
4.3–2: MIDI 3–2 (MIDI Filter 3–2)
4.3–1a: Realtime Control Knob 1, 2
Knob1 [Off, On]
Specifies whether MIDI control change message #74 (inter-
nal low pass filter cutoff frequency) for the A mode of knob
[1] and the MIDI control change message assigned to the B
mode of knob [1] will be transmitted and received.
Knob2 [Off, On]
Specifies whether MIDI control change message #71 (inter-
nal low pass filter resonance or high pass filter cutoff fre-
quency) for the A mode of knob [2] and the MIDI control
change message assigned to the B mode of knob [2] will be
transmitted and received.
4.3–2a: Realtime Control Knob 3, 4
Knob3 [Off, On]
Specifies whether MIDI control change message #79 (inter-
nal filter EG intensity) for the A mode of knob [3] and the
MIDI control change message assigned to the B mode of
knob [3] will be transmitted and received.
Knob4 [Off, On]
Specifies whether MIDI control change message #72 (inter-
nal filter and amp EG release time) for the A mode of knob
[4] and the MIDI control change message assigned to the B
mode of knob [4] will be transmitted and received.
■ 4.3–1(2)b: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1d)
Specifies whether the effects of “SW1” and “SW2” will be
transmitted and received. “SW1” and “SW2” correspond to
the messages specified in 2.2: Ed-Ctrl. You can also specify
whether other control change messages will be transmitted
and received.
4.4–1: MIDI 4–1 (MIDI Filter 4–1)
4.4–1a: SW1, SW2
SW1, SW2 [Off, On]
Specifies whether or not the effect of the “SW1” and “SW2”
will be transmitted and received.
This filter setting is valid for settings of SW1 Mod.(CC#80),
SW2 Mod.(CC#81), or Porta.SW(CC#65).
■ 4.4–1b: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1d)

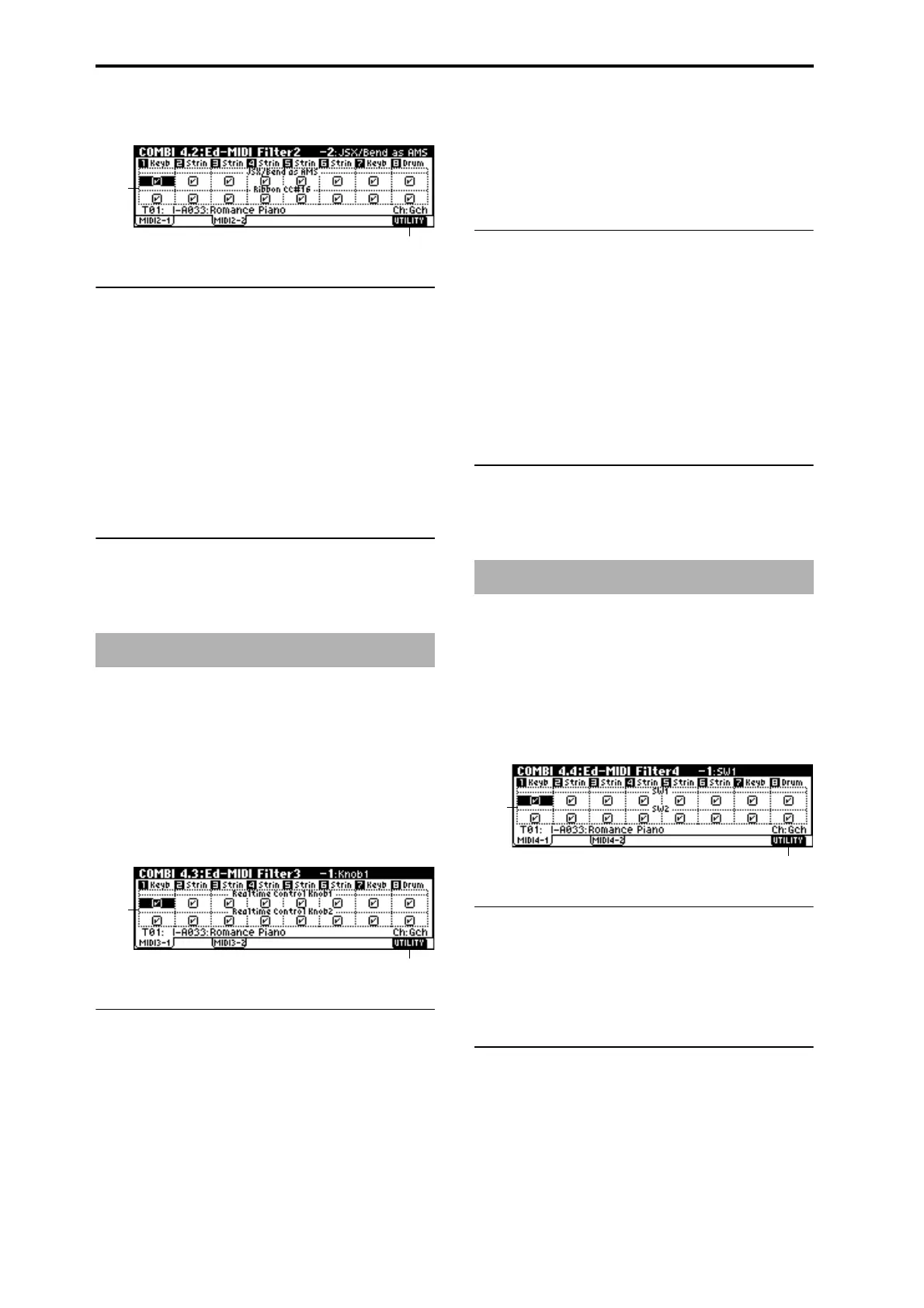

COMBI 4.3: Ed–MIDI Filter3
4.2–2a
4.2–2b
4.3–1a
4.3–1b
COMBI 4.4: Ed–MIDI Filter4
4.4–1a
4.4–1b
