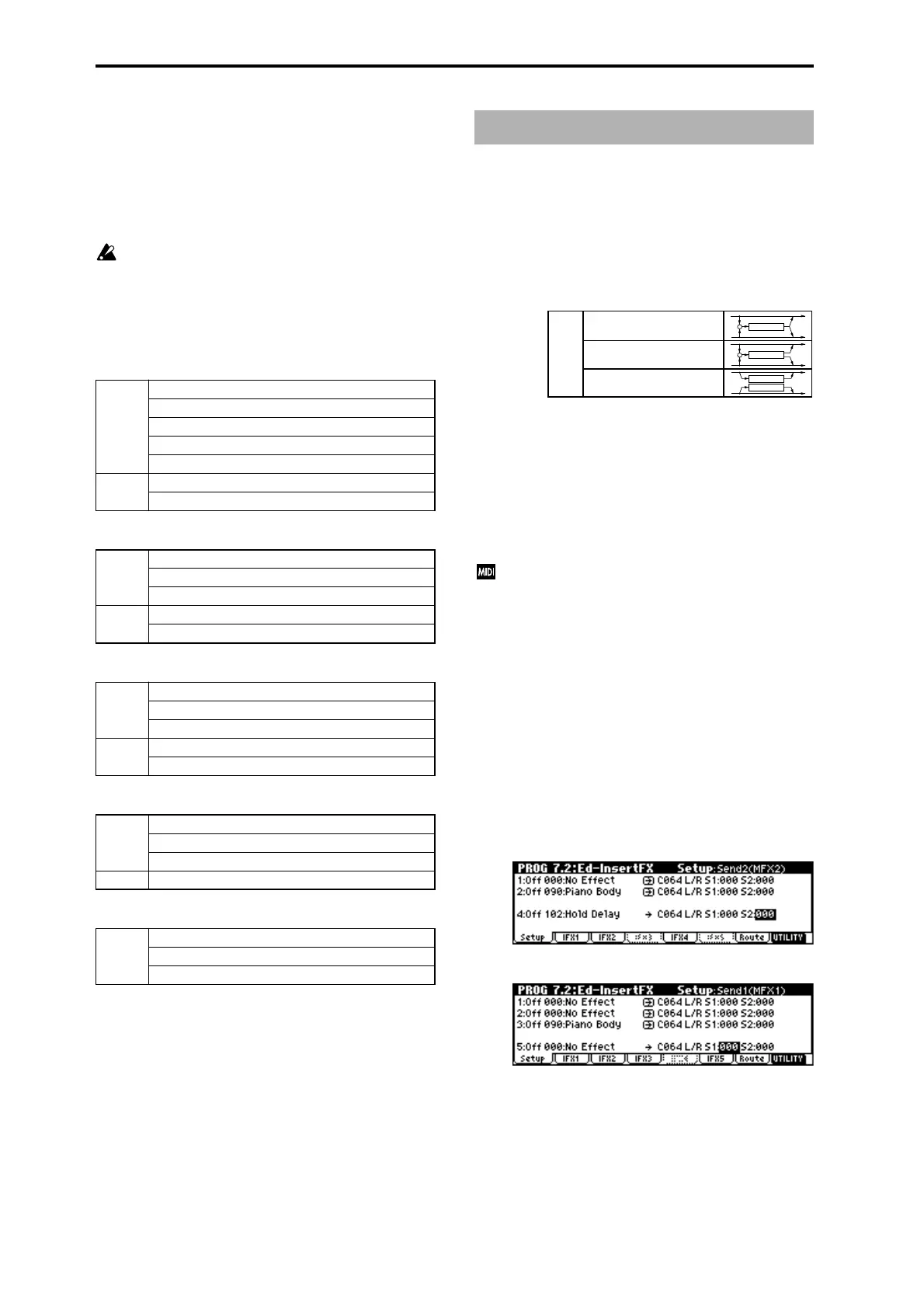

3. Effect I/O
To achieve the best tonal quality, signals sent to the Insert
Effects and the Master Effects should be output at the maxi-
mum level without clipping. Also, use the “W/D” parame-
ter for the Insert Effects and the “Output Level” or “Rtn
(Return1, 2)” parameter for the Master Effects to adjust the
effect output level.
The TRITON-Rack does not have an input level meter
that monitors the input level of the effect. If the input
level is insufficient, the S/N ratio will decrease. If the
input level is excessive, distortion may occur.
The following table shows the parameters related to the
level settings:
Program mode
Combination mode
Multi mode
Sampling mode
Global mode
*2
*1
Some effects may not have these parameters.
*2
Use this parameter to set the Audio Input Level in all
modes other than Sampling mode.
1. In/Out
Insert Effects (IFX 1, 2, 3, 4, 5) have a stereo input and a ste-
reo output. If you select Dry (no effect) for the “W/D”
parameter, the stereo input signal will be output in stereo
without being processed by the effect. If you select Wet
(effect applied), the processed signal will be output in one of
the following ways:
If you select 000: No Effect, stereo input signals are output
in stereo without being processed.
The possible routing of effect inputs and outputs is indi-
cated in the upper left corner of the block diagram.
These can be switched on/off by the “On/Off” settings in
7.2: Ed-Insert FX, Setup pages IFX1–5 in each mode. When
off, the effect will be bypassed. In the same way as for 000:
No Effect, the stereo input sound will be output in stereo
without modification.
Separately from this “On/Off” setting, MIDI control
change CC#92 can be received to turn all IFX1–5 effects
off. A value of 0 is off, and a value of 1–127 restores the
original setting. You can also use “FX SW” (GLOBAL
1.1–1b) to turn off IFX1–5 in the same way. This is con-
trolled on the global MIDI channel “MIDI Channel”
(GLOBAL 2.1–1a).
Double-size effects
Double-size effects 090–102 use twice the area of what
other effects use.
You can select them for Insert Effects IFX2, IFX3, and IFX4.
Note that if you select a double-size effect for IFX2, you can-
not use IFX3. In the same way, if you select a double-size
effect for IFX3 or IFX4, you cannot use IFX4 or IFX5 respec-
tively.
Selecting double-size effects for IFX2 and IFX4
Selecting a double-size effect for IFX3
Input OSC1/2 High, Low Level (PROG 2.1)
Filter1/2 Trim (PROG 4.1)
Amp1/2 Level (PROG 5.1)
OSC1/2 Send1/2 (PROG 7.1)
Effect Trim parameter *1 (PROG 7.2, 7.3)
Output Effect W/D parameter (PROG 7.2, 7.3)
Rtn1/2 (Return1, 2) (PROG 7.3)
Input Volume (COMBI 1.1, 2.1)
S1/2 (Send1/2) (COMBI 7.1)
Effect Trim parameter *1 (COMBI 7.2, 7.3)
Output Effect W/D parameter (COMBI 7.2, 7.3)
Rtn1/2 (Return1, 2) (COMBI 7.3)
Input Volume (MULTI 1.1)
S1/2 (Send1/2) (MULTI 7.1)
Effect Trim parameter*1 (MULTI 7.2, 7.3)
Output Effect W/D parameter (MULTI 7.2, 7.3)
Rtn1/2 (Return1, 2) (MULTI 7.3)
Input AUDIO INPUT
Input1/2 Lvl (Level) (SMPL 1.1)
Effect Trim parameter *1 (SMPL 7.2)
Output Effect W/D parameter (SMPL 7.2)
Input AUDIO INPUT
Input1/2 (Level) (GLOBAL 1.1)
Input1/2 Send1/2 (GLOBAL 1.1)
Insert Effects (IFX 1, 2, 3, 4, 5)
Stereo In - Stereo Out
Mono In - Mono Out
Mono In - Stereo Out
Effect
Effect
Effect
+
Effect
+
Wet
To Next Page
