PROG
1.1
2.12.22.33.14.14.25.15.25.36.17.17.27.3
29
■ 7.2–2(...6)a: UTILITY
☞ “Write Program” (1.1–1d)

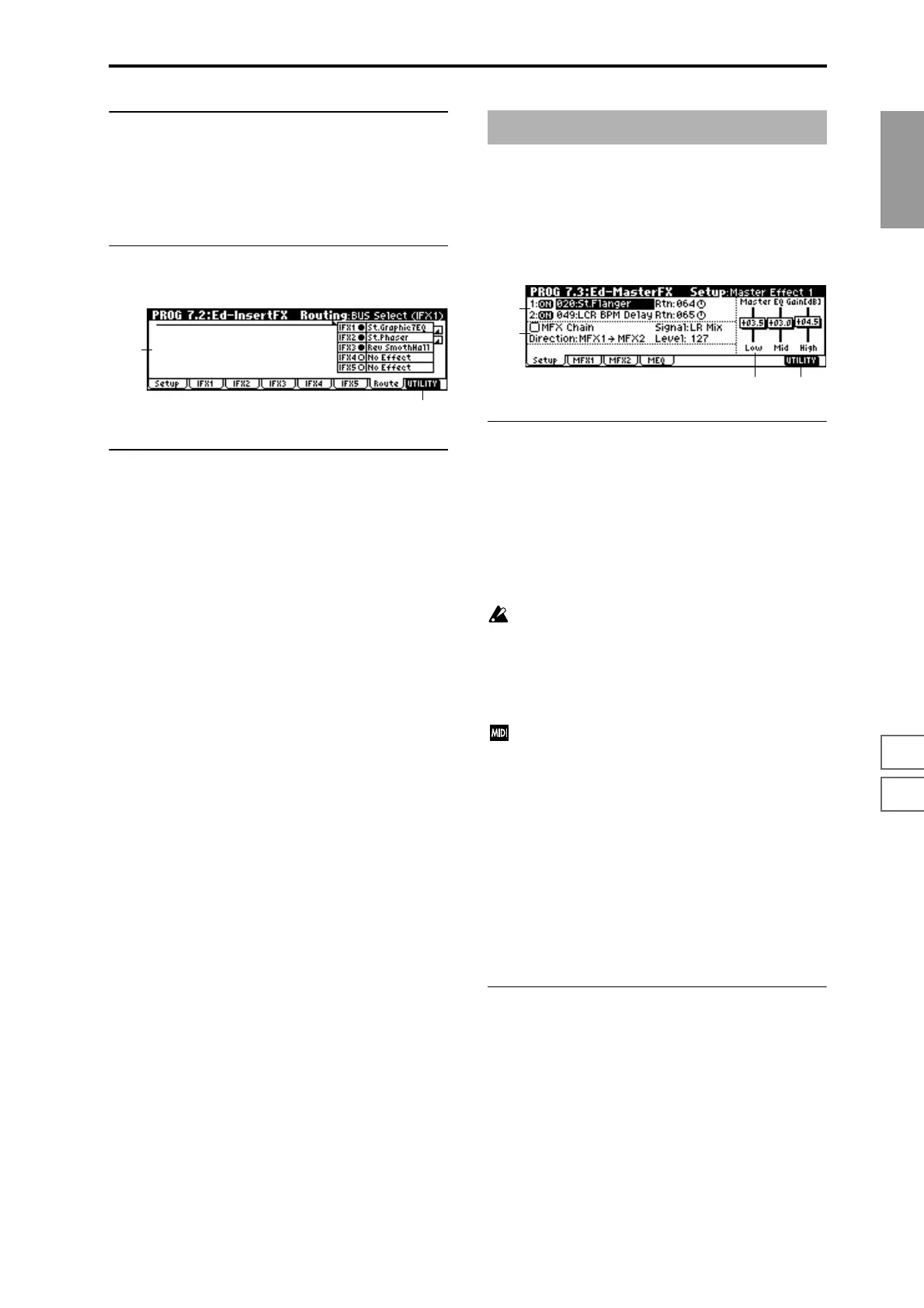

7.2–7: Routing
7.2–7a: Routing
This shows the status of the insert effect settings. (☞7.1–2a)
■ 7.2–1b: UTILITY
☞ “Write Program” (1.1–1d), “Copy Insert Effect,” “Swap
Insert Effect” (7.1–1c)
☞ For details on the master effects, refer to p.146.
7.3–1: Setup
Here you can select the master effect types, switch them on/
off, specify chaining, and set the master EQ.
7.3–1a: Master Effect Setup
The master effects do not output the direct sound (Dry). The
return level (“Rtn 1, 2”) sends the effect sound (Wet) to the L
and R bus, and this is mixed with the direct sound (“BUS
Select” L/R: 7.1–1a, 7.2–1a).
The master effects are monaural input. The sound that is
panned to L and R after passing through the oscillator and
insert effects is mixed to a monaural signal as adjusted by
the “S1 (Send1 (MFX1))” and “S2 (Send2 (MFX2))” levels,
and input to the master effects.
The master effects are mono-in stereo-out. Even when
a stereo-input type effect is selected, the input will be
monaural.
MFX1 On/Off, MFX2 On/Off [Off, ON]
Switch master effect 1, 2 on/off. When off, the output will be
muted.
Separately from this setting, you can use CC#94 to switch
master effect 1 on/off, CC#95 to switch master effect 2
on/off. A value of 0 will be off, and a value of 1–127 will
be the original setting. This is controlled on the global
MIDI channel “MIDI Channel” (GLOBAL 2.1–1a).
Master Effect 1, 2 [000...089: name]
Selects the effect type for master effect 1, 2. You can select
from 90 types of effect: 000: No Effect–089: Reverb-Gate.
(Double-size effects cannot be selected.) If 000: No Effect is
selected, the output from the master effect will be muted.
Rtn 1, 2 (Return 1, 2) [000...127]
Adjusts the return levels from the master effects to the L/R
bus (main output L/MONO, R).
7.3–1b: Chain
MFX Chain [Off, On]
On (Checked): Chain (series connection) will be turned on
for MFX1 and MFX2. (
☞p.148)
Direction (Chain Direction)
[MFX1→MFX2, MFX2→MFX1]
Specifies the direction of the connection when MFX1 and
MFX2 are chained.
MFX1→MFX2: Connect from MFX1 to MFX2.
MFX2→MFX1: Connect from MFX2 to MFX1.
7.2–7a
7.2–7b
PROG 7.3: Ed–MasterFX
7.3–1a
7.3–1b
7.3–1d7.3–1c
