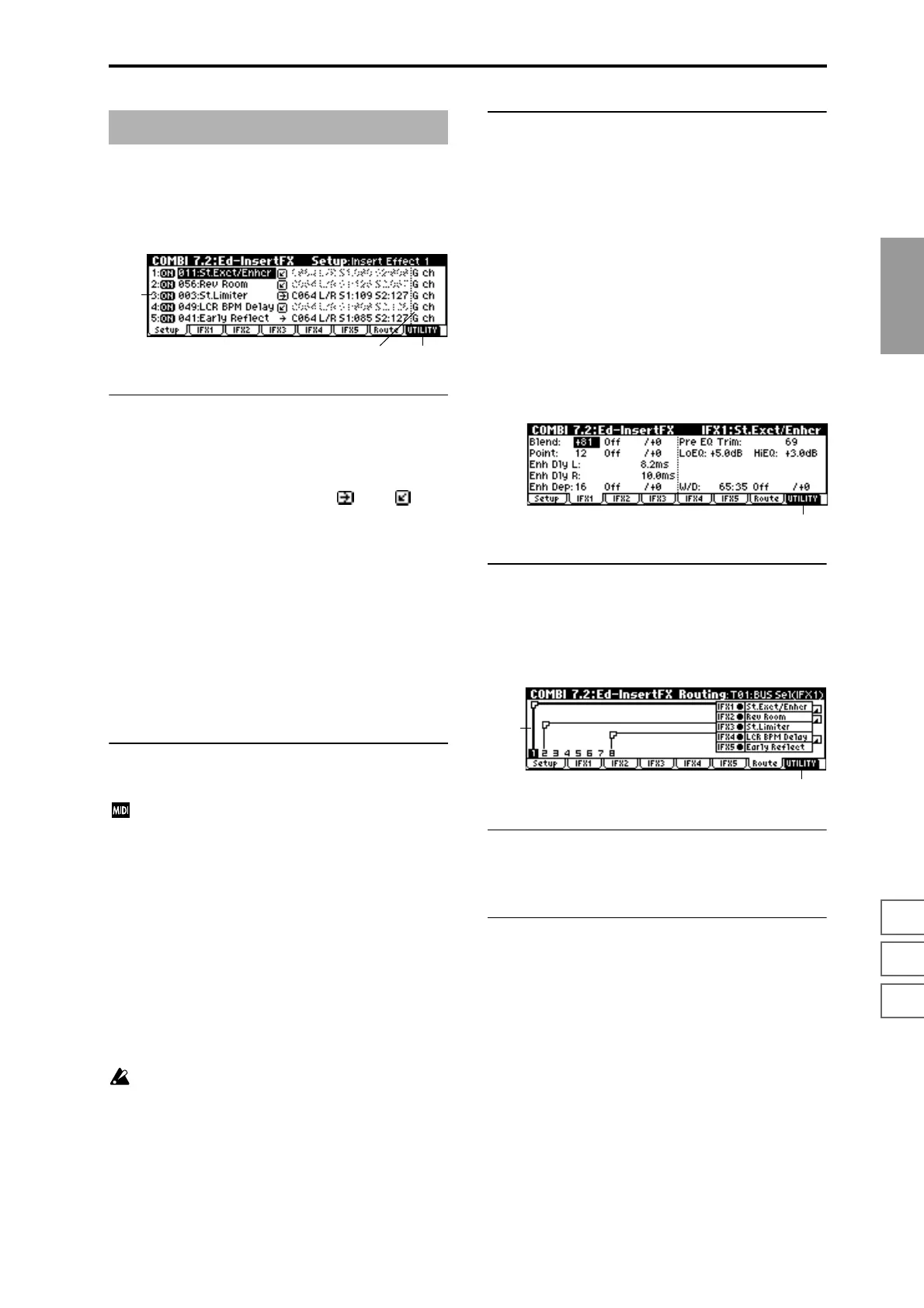

7.2–1: Setup
Here you can select the type of each insert effect, turn it on/
off, and make chain settings etc.
7.2–1a: Ed-InsertFX Setup
IFX1 On/Off — IFX5 On/Off
Insert Effect 1, 5 [000...089: name]
Insert Effect 2, 3, 4 [000...102: name]
Chain [ (Off), (ON)]
Pan(CC#8) [L000...C064...R127]
BUS Select [L/R, 1, 2, 3, 4, 1/2, 3/4, Off]
S1 (Send1 (MFX1)) [000...127]
S2 (Send2 (MFX2)) [000...127]
These parameters are the same as in Program mode.
(
☞PROG 7.2–1)
However, dynamic modulation (Dmod) of the insert effects
and the “Pan (CC#8), “Send 1 (MFX1),” and “Send 2
(MFX2)” that follow the insert effects will be controlled on
the “Control Channel” (7.2-1b) MIDI channel, unlike in Pro-
gram mode. The control changes used are the same as in
Program mode.
7.2–1b: Control Channel
Control Channel [Ch01...16, G ch, All Rt.]
Specifies the MIDI channel on which dynamic modula-
tion (Dmod) of the insert effects and the “Pan (CC#8),
“Send 1 (MFX1),” and “Send 2 (MFX2)” that follow the
insert effects will be controlled.
The channel number of the timbre routed through this IFX
will be followed by a “*” displayed at the right of Ch01–16.
If two or timbres with different MIDI channel settings are
routed through the same IFX, this parameter specifies which
of these channels will be used to control the effect.
G ch: The global MIDI channel “MIDI Channel” (GLOBAL
2.1–1a) will be used to control the effect. Normally you will
set this to G ch.
All Rt. (All Routed): The channel of any timbre routed
through this effect can be used to control the effect. (Chan-
nels of each routed timbre will be indicated by “*”.)
If the “BUS Select” (7.1–1a) of a timbre for which a
drum program is selected is set to DKit, the MIDI chan-
nel of that timbre will be valid if any IFX1–5 is set to All
Routed, regardless of the “BUS Select” (GLOBAL 5.1–
3a) settings or the settings of the Utility “DrumKit IFX
Patch” (7.1–1b).
■ 7.2–1c: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1d),
“Copy Insert Effect,” “Swap Insert Effect” (7.1–1b), “Select
by Category” (PROG 7.2–1b)
7.2–2: IFX 1
7.2–3: IFX 2
7.2–4: IFX 3
7.2–5: IFX 4
7.2–6: IFX 5
These are the parameters for IFX 1, 2, 3, 4, and 5 that were
selected in the Setup page (
☞p.151).
■ 7.2–2(...6)a: UTILITY
☞ “Write Combination” (1.1–1d)
7.2–7: Route (Routing)
7.2–7a: Routing Map
This shows the status of the insert effects. This shows the
same content as the 7.1: BUS, Routing page. (
☞7.1–2a)
■ 7.2–7b: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1d),
“Copy Insert Effect,” “Swap Insert Effect,” “DKit IFX
Patch” (7.1–1b)
