48
☞ For details on master effects, refer to p.146.

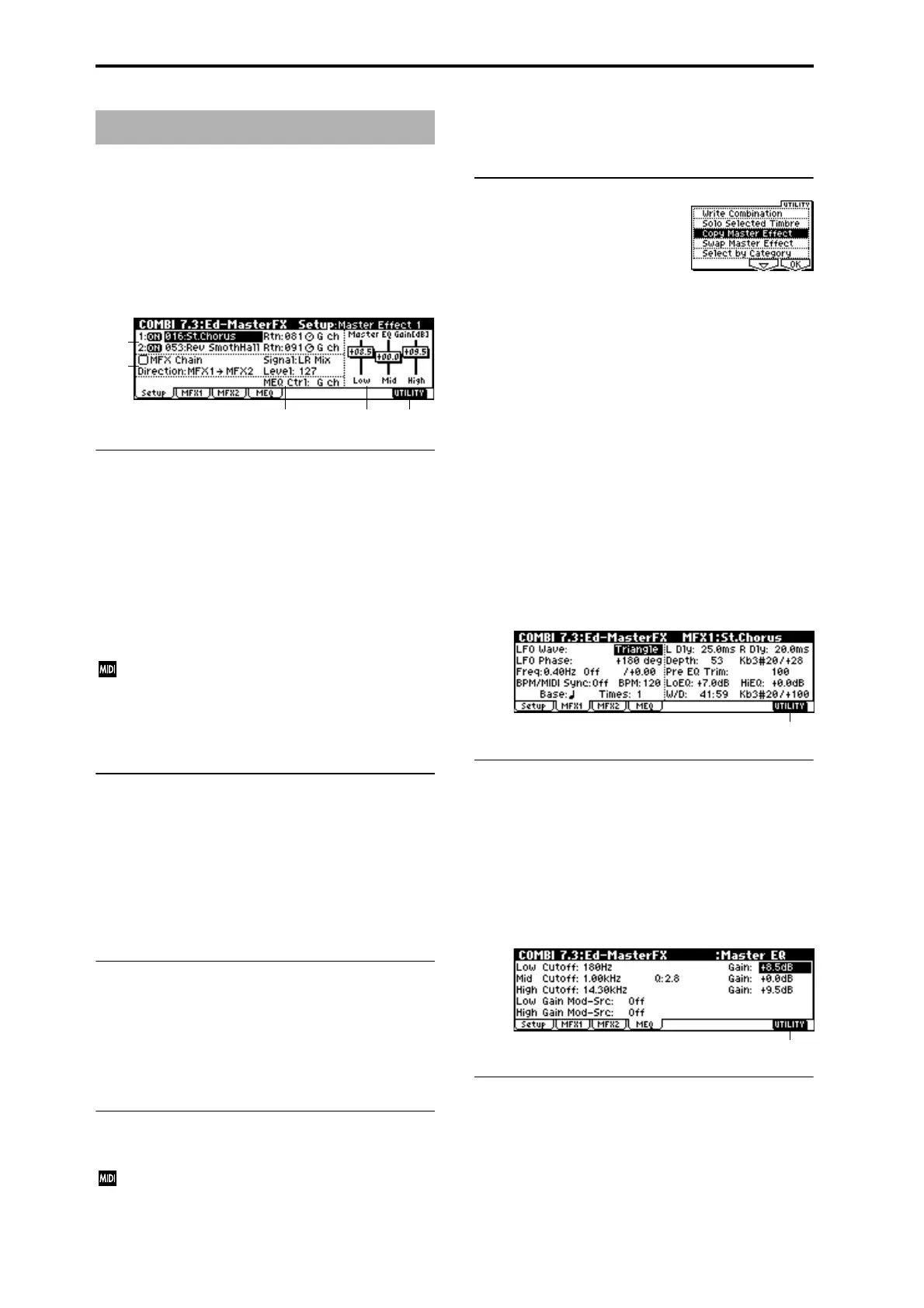

7.3–1: Setup
Here you can select the type of each master effect, turn it
on/off, and make chain and master EQ settings.
With the exception of “MFX1 Control Ch,” “MFX2 Control
Ch,” and “MEQ Control Ch,” this is the same as in Program
mode. (
☞PROG 7.3: Ed-MasterFX)
7.3–1a: MasterFX Setup
MFX1 On/Off, MFX2 On/Off [Off, ON]
Master Effect 1, 2 [000...089: name]
Rtn 1, 2 (Return 1, 2) [000...127]
These are the same as in Program mode. Refer to “PROG
7.3-1: Setup.” However, the master effects will be controlled
on the “MFX 1, 2 Control Ch” MIDI channel, unlike in Pro-
gram mode.
The control changes used are the same as in Program mode.
MFX 1, 2 Control Ch [Ch001...16, G ch]
Selects the MIDI channel that will control dynamic
modulation (Dmod) for the master effects.
G ch: The global MIDI channel “MIDI Channel” (GLOBAL
2.1-1a) will be used for control. Normally you will set this
parameter to G ch.
7.3–1b: MasterFX Chain
MFX Chain
Direction (Chain Direction)
[MFX1→MFX2, MFX2→MFX1]
Signal (Chain Signal) [LR Mix, L Only, R Only]
Level (Chain Level) [000...127]
These are the same as in Program mode. (☞“PROG 7.3–1:
Setup”)
7.3–1c: Master EQ Gain [dB]
Low [–18.0...+18.0]
Mid [–18.0...+18.0]
High [–18.0...+18.0]
These are the same as in Program mode. (☞“PROG 7.3–1:
Setup”)
7.3–1d: MEQ Ctrl
MEQ Ctrl (MEQ Control Ch) [Ch01...16, G ch]
Selects the MIDI channel that will control dynamic
modulation (Dmod) for the master EQ.
G ch: The global MIDI channel “MIDI Channel” (GLOBAL
2.1–1a) will be used for control. Normally you will set this
parameter to G ch.
■ 7.3–1e: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1d),
“Select by Category” (PROG 7.3–1d)
Copy Master Effect
(☞PROG 7.3–1d)
Note, the MIDI control channel that is specified by “MFX1, 2
Control Ch” (7.3–1a) will not be copied.
Swap Master Effect
(☞PROG 7.3–1d)
Note, the MIDI control channel that is specified by “MFX1, 2
Control Ch” (7.3–1a) will not be swapped.
7.3–2: MFX1 (Master Effect1)
7.3–3: MFX2 (Master Effect2)
Here you can set the parameters for the “Master Effect1”
and “Master Effect2” effects that were selected in the Setup
page (
☞p.151).
■ 7.3–2(3)a: UTILITY
☞ “Write Combination” (1.1–1d)
7.3–4: MEQ (Master EQ)
The master EQ is a three-band stereo EQ. It is located imme-
diately before the AUDIO OUTPUT (MAIN OUT) L/
MONO and R from the L/R bus, and adjusts the overall
tonal character of the sound (
☞p.203).
■ 7.3–4a: UTILITY
☞ “Write Combination” (1.1–1d)
COMBI 7.3: Ed–MasterFX
7.3–1a
7.3–1b
7.3–1e7.3–1c7.3–1d
7.3–2a
7.3–4a
