page 110 Appendix

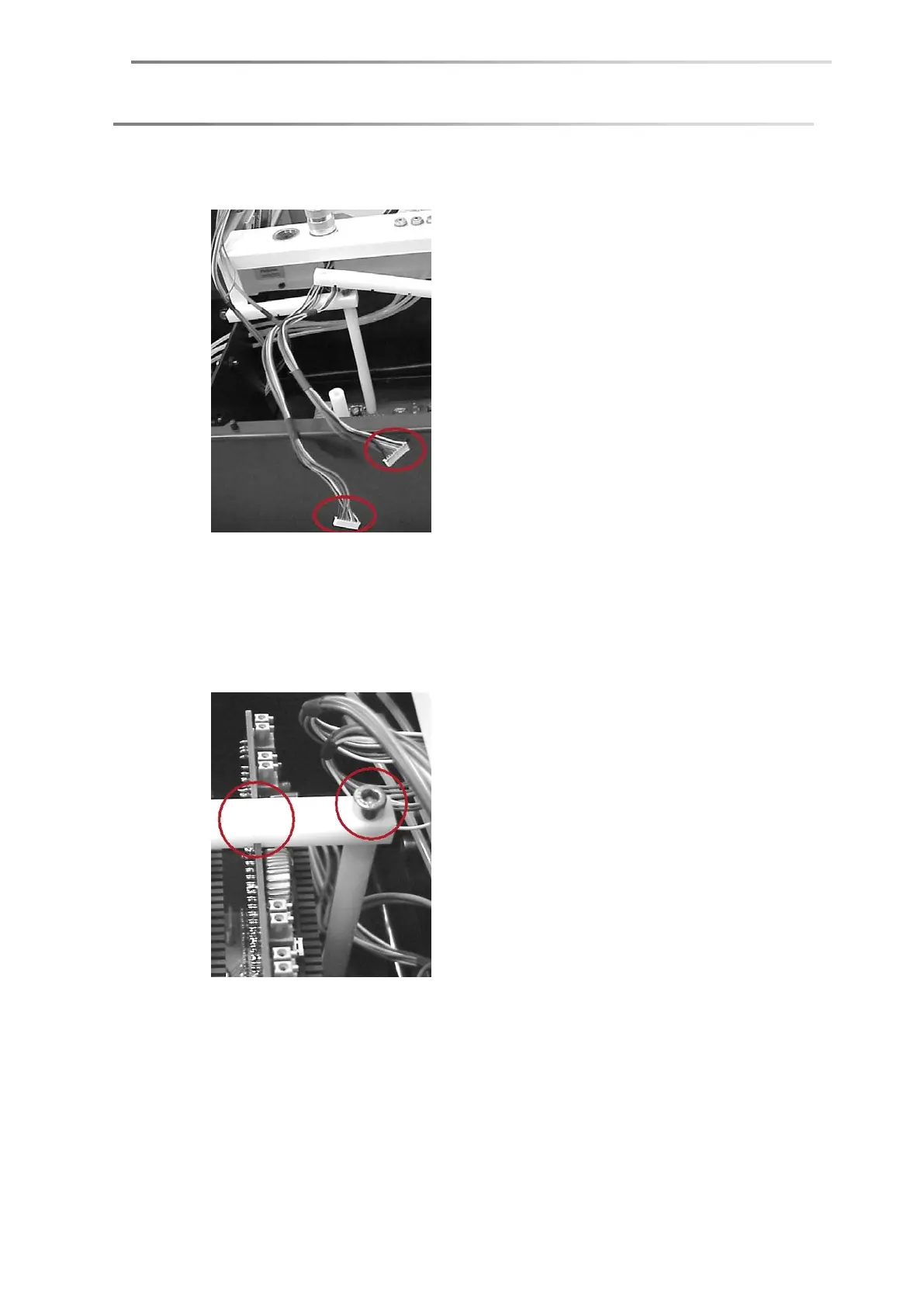

6. Connect the two plugs coming from the connection of the dosing unit to the
two ports 1 and 2 of the installed electronics board in an arbitrary order.
7. Only for multi-dosing unit DS3222-3228: Connect the other ports of all
electronic modules as described in the table on page 105.
Pay attention to the assignment of the plugs 1-4 and 5-8 coming from the
syringe drives to the ports 1-4 of the modules to be connected.
8. Return the supporting frames and fix them.
Take care that the edge of the board lies in the gaps of the frames.
9. Reassemble the covers removed in steps 2-3.
SPAC S PA C S PAC SPAC
