KTM 1190 RC8 R User Manual

10 TUNING THE CHASSIS 142
10.12 Vehicle level
100693-01
Warning
Danger of accidents Modifications to the suspension settings can seriously alter the
vehicle's ride behavior.
– Following modifications, ride slowly at first to get the feel of the new ride behav-
ior.

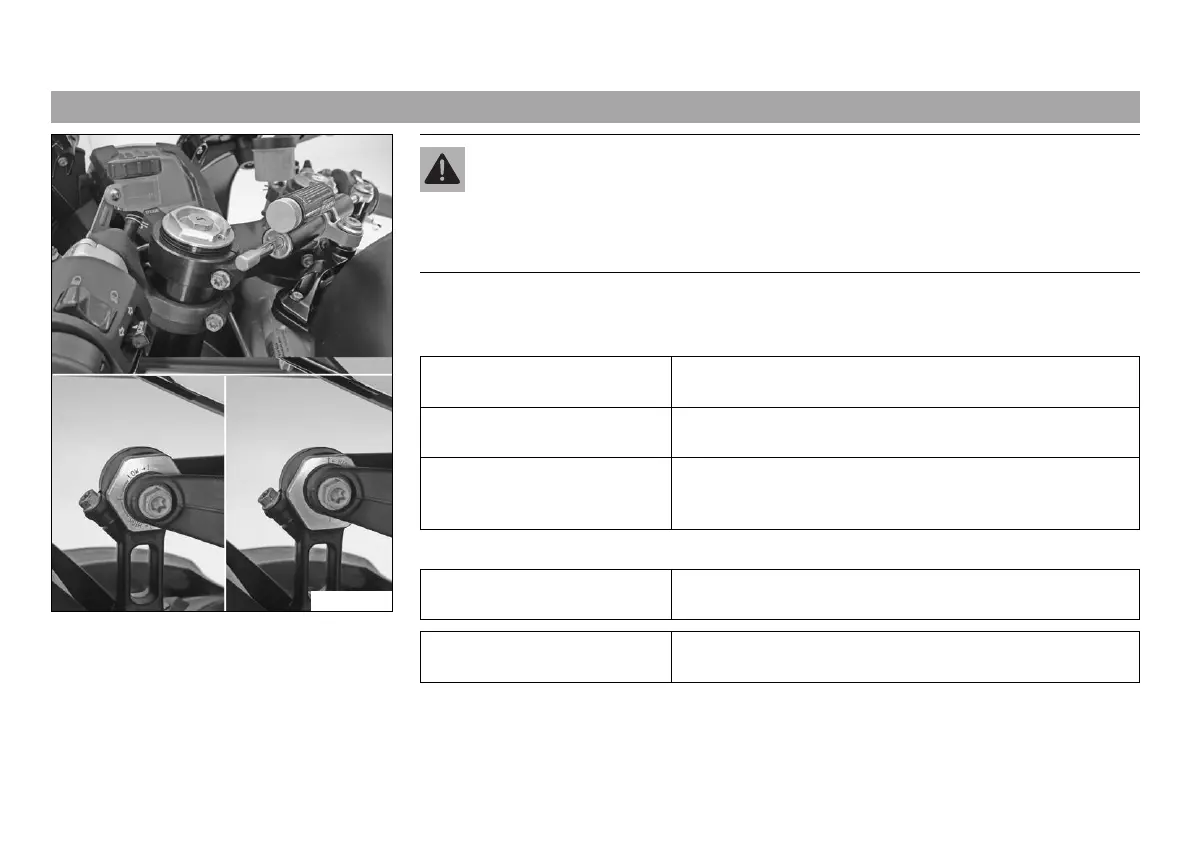

The vehicle level can be adjusted at the front by means of the fork leg clamp and at the
rear by the eccentric shaft.
The fork legs can be clamped at three positions in the triple clamp.
Upper triple clamp flush with
upper edge of fork legs
0 mm (0 in)
Upper triple clamp flush with
1st ring of fork legs
2.5 mm (0.098 in)
Upper triple clamp flush with
2nd ring of fork legs (stan-
dard)
5 mm (0.2 in)
The infinitely variable frame height setting can be adjusted by turning the eccentric shaft.
Frame height difference HIGH
- LOW
12 mm (0.47 in)
Maximum adjustment range
between HIGH - LOW
180°

KTM 1190 RC8 R Specifications

General

Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Compression Ratio	13.5:1
Transmission	6-speed
Rear Suspension	WP Monoshock
Fuel Tank Capacity	16.5 liters
Dry Weight	184 kg
Fuel System	Electronic fuel injection
Engine Type	V-twin, 4-stroke
Power	129 kW (175 hp) @ 10, 250 rpm
Torque	123 Nm @ 8, 000 rpm
Frame	Chromium-Molybdenum trellis frame, powder coated
Front Brake	2 x Brembo four-piston calipers, 320 mm discs
Rear Brake	220 mm disc, 2-piston caliper
Seat Height	805 mm
