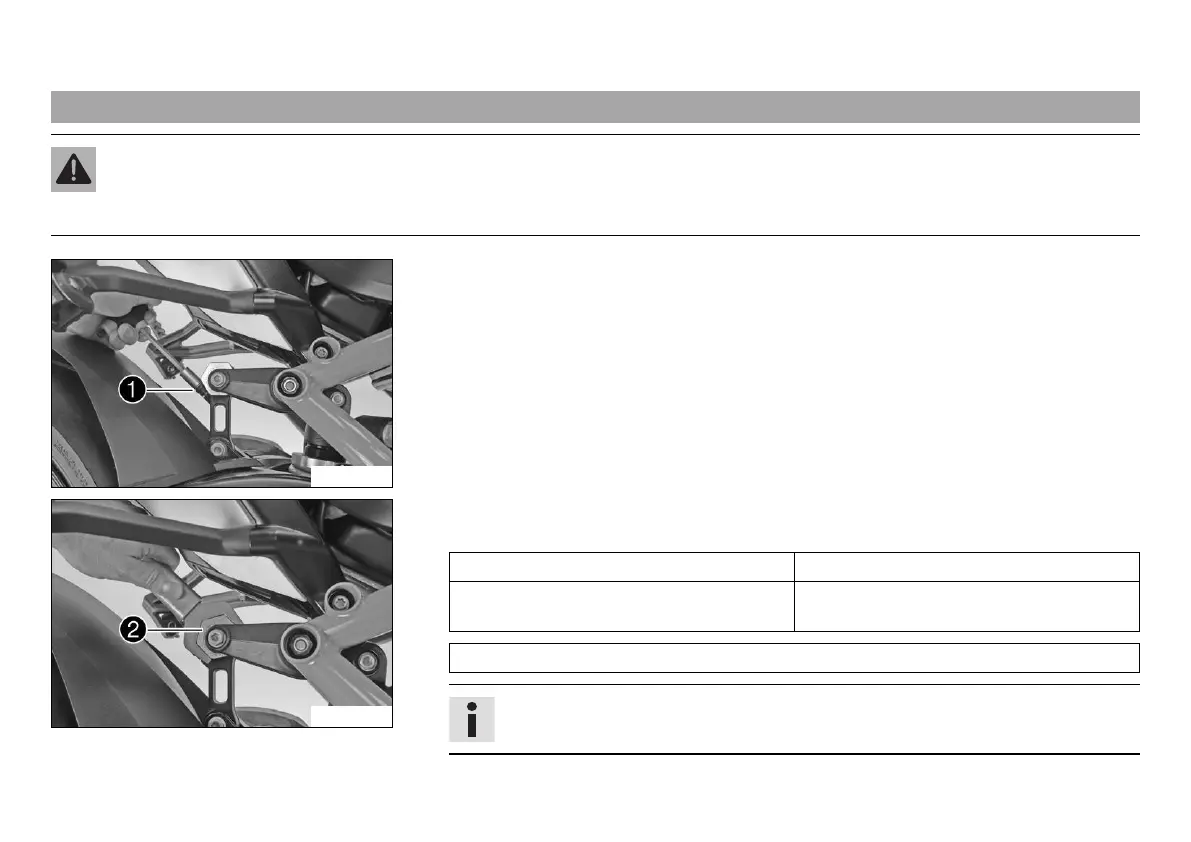

10 TUNING THE CHASSIS 145
10.14 Adjusting the vehicle level at the rear
Warning
Danger of accidentsModifications to the suspension settings can seriously alter the vehicle's ride behavior.
Following modifications, ride slowly at first to get the feel of the new ride behavior.
100696-10
Loosen screw
.
100697-10
Turn eccentric shaft
to the desired position using the tool from the tool set.
Guideline
Standard LOW
Maximum adjustment range between
HIGH - LOW
180°
Open end wrench SW 38 (69012021000)
Info
The chassis height can be adjusted in both directions.
