KTM 1190 RC8 R - Adjusting Shift Lever Stub

10 TUNING THE CHASSIS 149
10.17 Adjusting shift lever stub
B00563-10
–

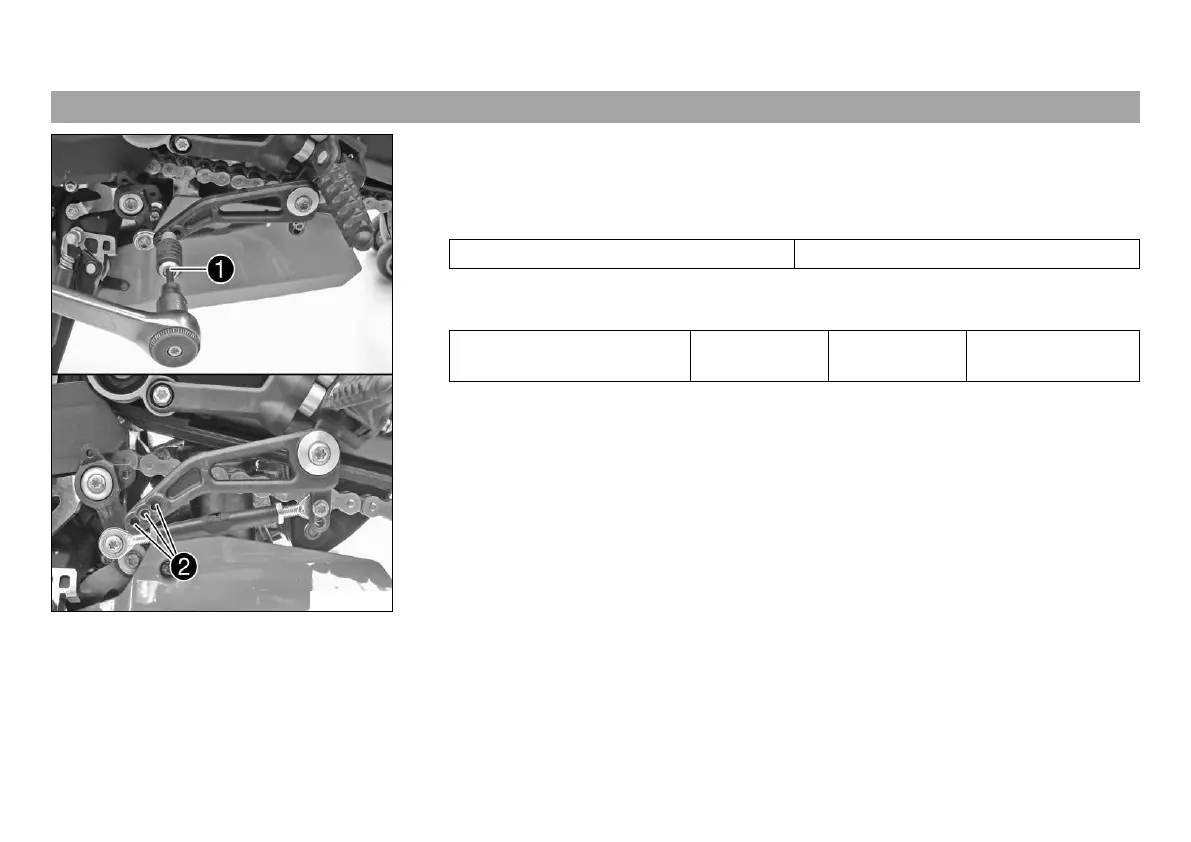

Remove the screw

with the shift lever stub.
–
Position the shift lever stub with the screw in one of the holes

according to the
desired lever length.
Guideline
Standard Central hole
– Tighten screw.
Guideline
Screw, shift lever stub M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
