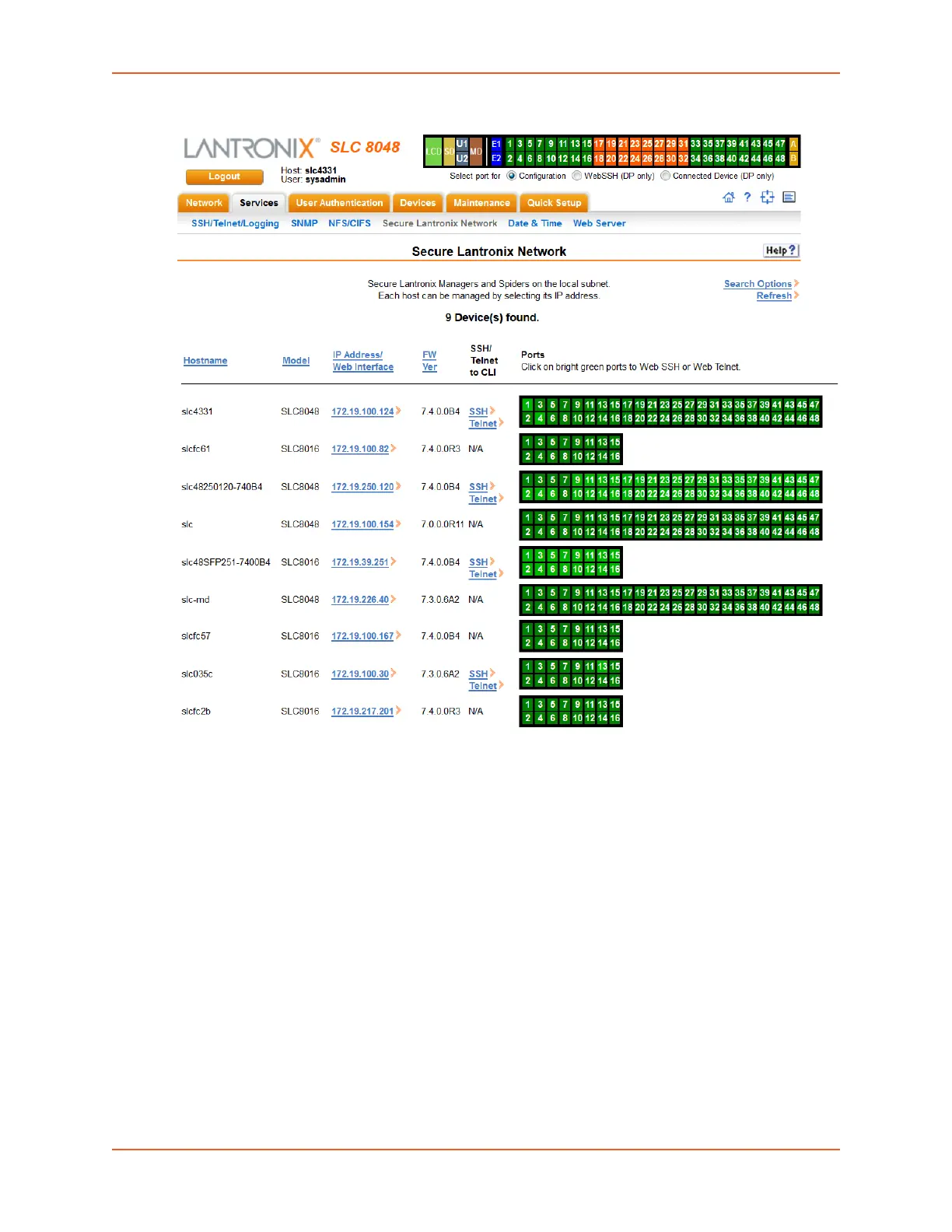

Figure 7-4 Services > Secure Lantronix Network

2. Access your device or device port through any of the methods below.

To directly access the web interface for a secure Lantronix device:

1. Make sure Web Telnet and Web SSH is enabled for the specific device or device port.

2. Click the IP address of a specific secure Lantronix device to open a new browser page with

the web interface for the selected secure Lantronix device.

3. Log in as usual.
