10: Remote Power Managers

SLC™ 8000 Advanced Console Manager User Guide 197

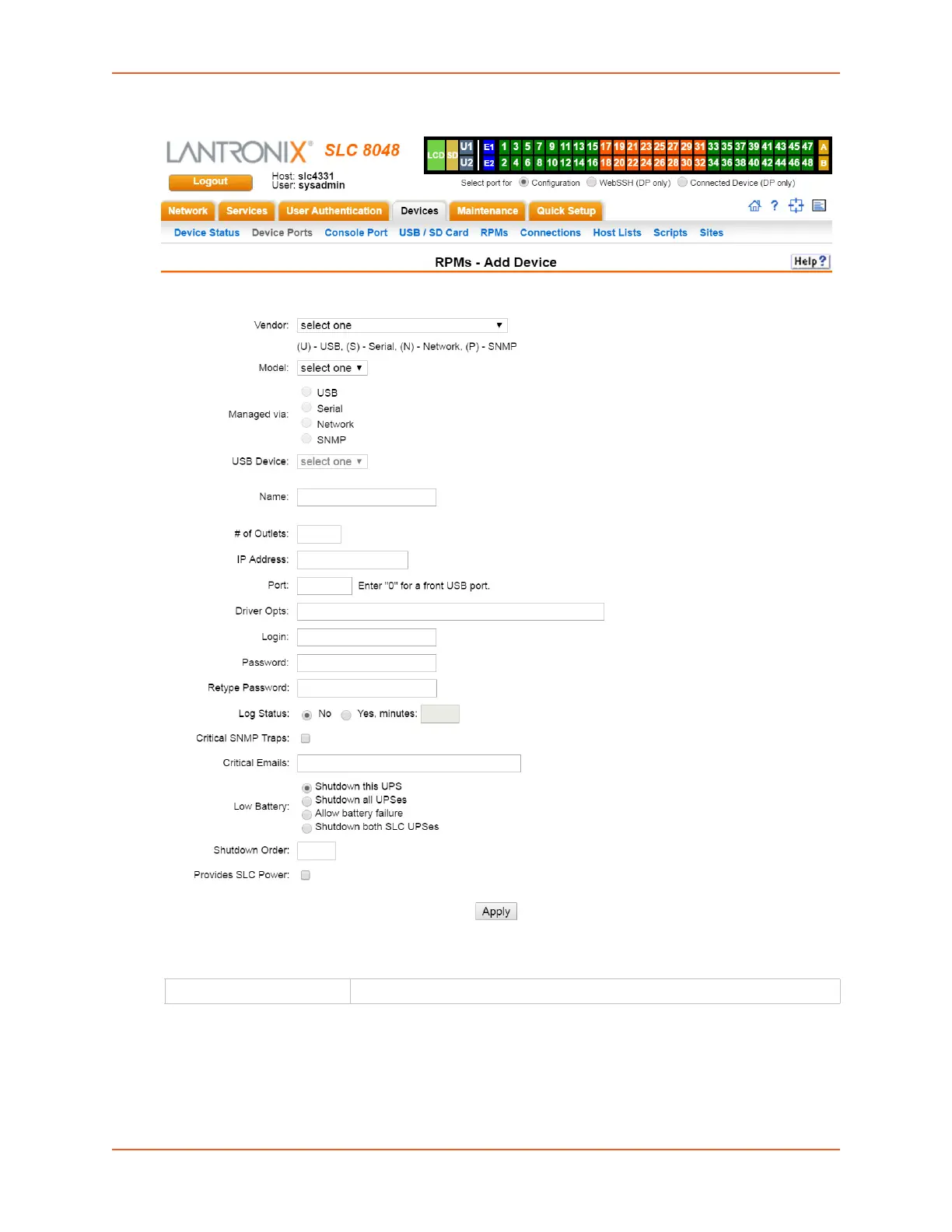

Figure 10-7 Device Ports > RPMs - Add Device

3. Enter the following:

Vendor Select the correct vendor from the drop-down menu.
