13: Maintenance
SLC™ 8000 Advanced Console Manager User Guide 282
3. Click the View Log button. Your specified system log displays. For example, if you select the
type All and the level Error, the SLC unit displays a log similar to this:

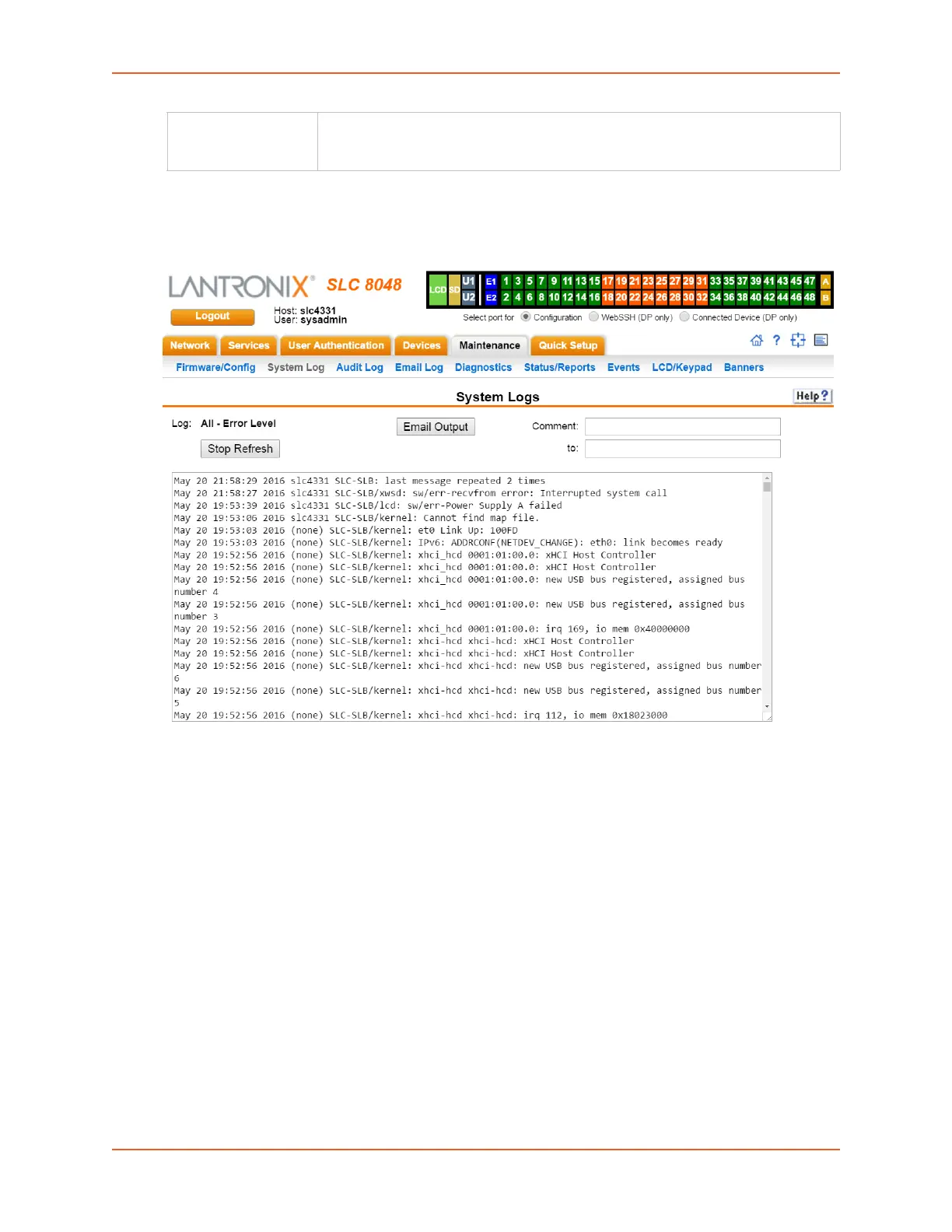

Figure 13-4 System Logs
From a queried system log (e.g., Figure 13-4), you may email this information to a specific
individual or to Lantronix Technical Support. See Emailing Logs and Reports (on page 293).
To clear system logs:
1. From the Maintenance > System Logs page, select Maintenance - System Logs.
2. Click the Clear Log button to clear all log information.
System Log Command
The following command for the command line interface corresponds to the web page entries
described above.
To view the system logs containing information and error messages:
show syslog [<parameters>]
Parameters
[email <Email Address>]
Ending at Select the endpoint of the range you want to view:
 End of Log: to view the log from the latest available ending time and date.
 Date: to view the log up to the last available log ending date and time.

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
