Appendix C: Adapters and Pinouts

SLC™ 8000 Advanced Console Manager User Guide 391

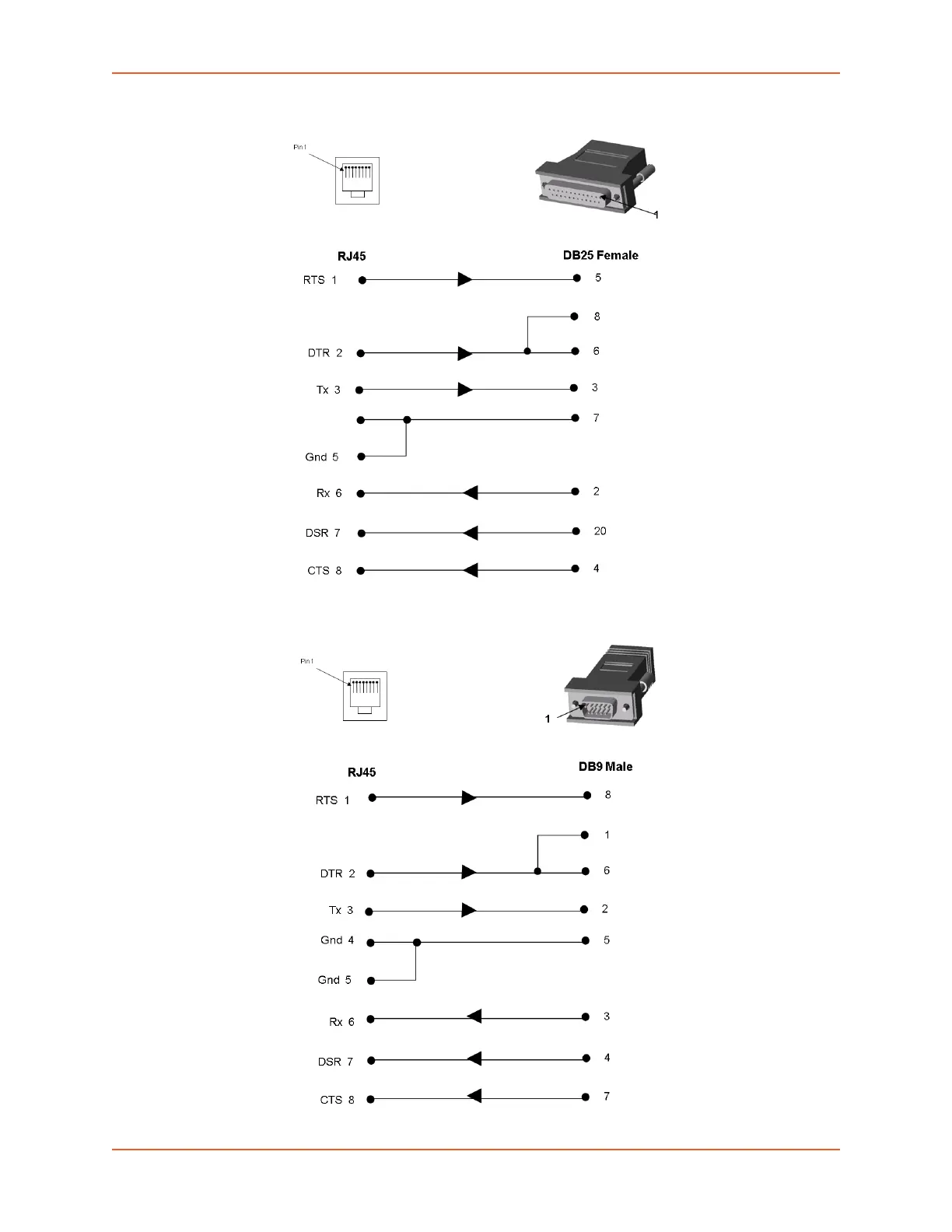

Figure C-2 RJ45 Receptacle to DB25F DCE Adapter for the SLC unit (PN 200.2067A)

Figure C-3 RJ45 Receptacle to DB9M DCE Adapter for the SLC unit (PN 200.2069A)
