13: Maintenance

SLC™ 8000 Advanced Console Manager User Guide 285

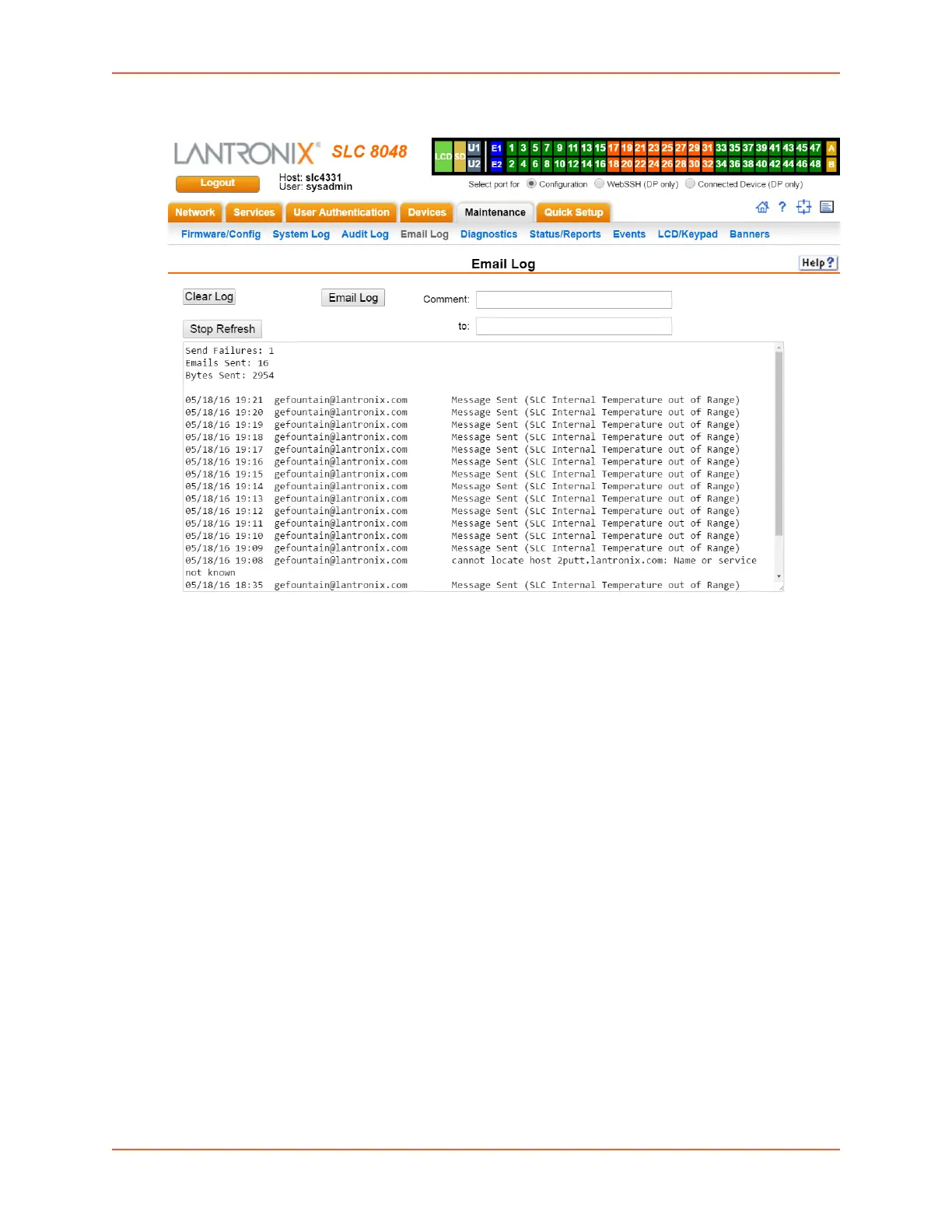

Figure 13-6 Maintenance > Email Log

2. To email this log, follow the instructions in Emailing Logs and Reports (on page 293).

3. To clear the log, click the Clear Log button.
