2: Introduction
SLC™ 8000 Advanced Console Manager User Guide 24

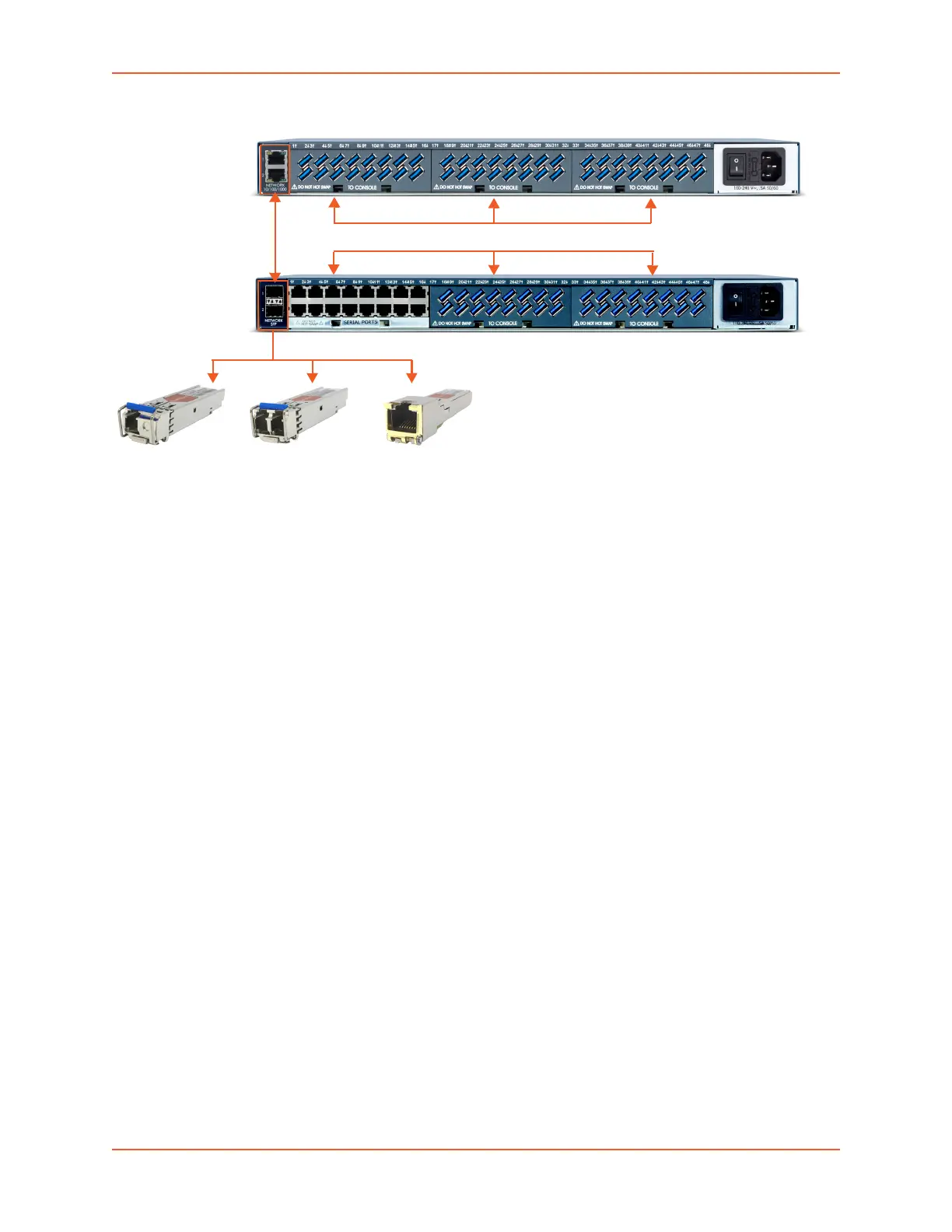

Figure 2-2 SLC 8048 Unit Samples (Back Side) - Part Number SLC80482201S
System Features
The SLC 8000 firmware has the following basic capabilities:
Software reversible device port pinouts (serial RJ45 ports only)
Connects up to 48 RS-232 serial consoles or up to 48 USB consoles
Support use of simple straight-through cables for use with Cisco, Sun and other devices that
use the “Cisco” RJ-45 serial pinouts
10/100/1000 Base-T Ethernet network compatibility or SFP port to support single or multi-
mode 1 Gigabit SFP transceiver modules
Buffer logging to file
Email and SNMP notification
ID/Password security, configurable access rights
Secure shell (SSH) security; supports numerous other security protocols
Network File System (NFS) and Common Internet File System (CIFS) support
RAW TCP, Telnet or SSH to a serial port by IP address per port or by IP address and TCP port
number
Configurable user rights for local and remotely authenticated users
Supports an external modem
No unintentional break ever sent to attached servers (Solaris Ready)
Simultaneous access on the same port - “listen” and “direct” connect mode
Remote power manager (RPM) control of UPS and PDU devices
The SLC 8000 supports the use of single mode, multi-mode
fiber optic and copper SFP transceiver modules in dual SFP
port models. SFP modules are provided by the user.
The back of the SLC unit appearance and function
will depend upon:
1) The type(s) of I/O modules installed in Bay 1, Bay
2 and Bay 3. See Table 3-8 on page 39.
2) The type of I/F card (dual Ethernet port or dual
SFP port) installed. If a dual SFP port is installed,
then the type of SFP transceiver module (single
mode optic fiber, multi-mode optic fiber, or copper)
inserted into the SFP port will also impact
appearance and function.
Dual Ethernet Port
OR
Dual SFP Port
Three I/O Modular Device Port Bays
