SLC™ 8000 Advanced Console Manager User Guide 303
14: Application Examples
Each SLC advanced console manager has multiple serial ports and two network ports. Each serial
port can be connected to the console port of an IT device. Using a network port (in-band) or a
modem (out-of-band) for dial-up connection, an administrator can remotely access any of the
connected IT devices using Telnet or SSH.

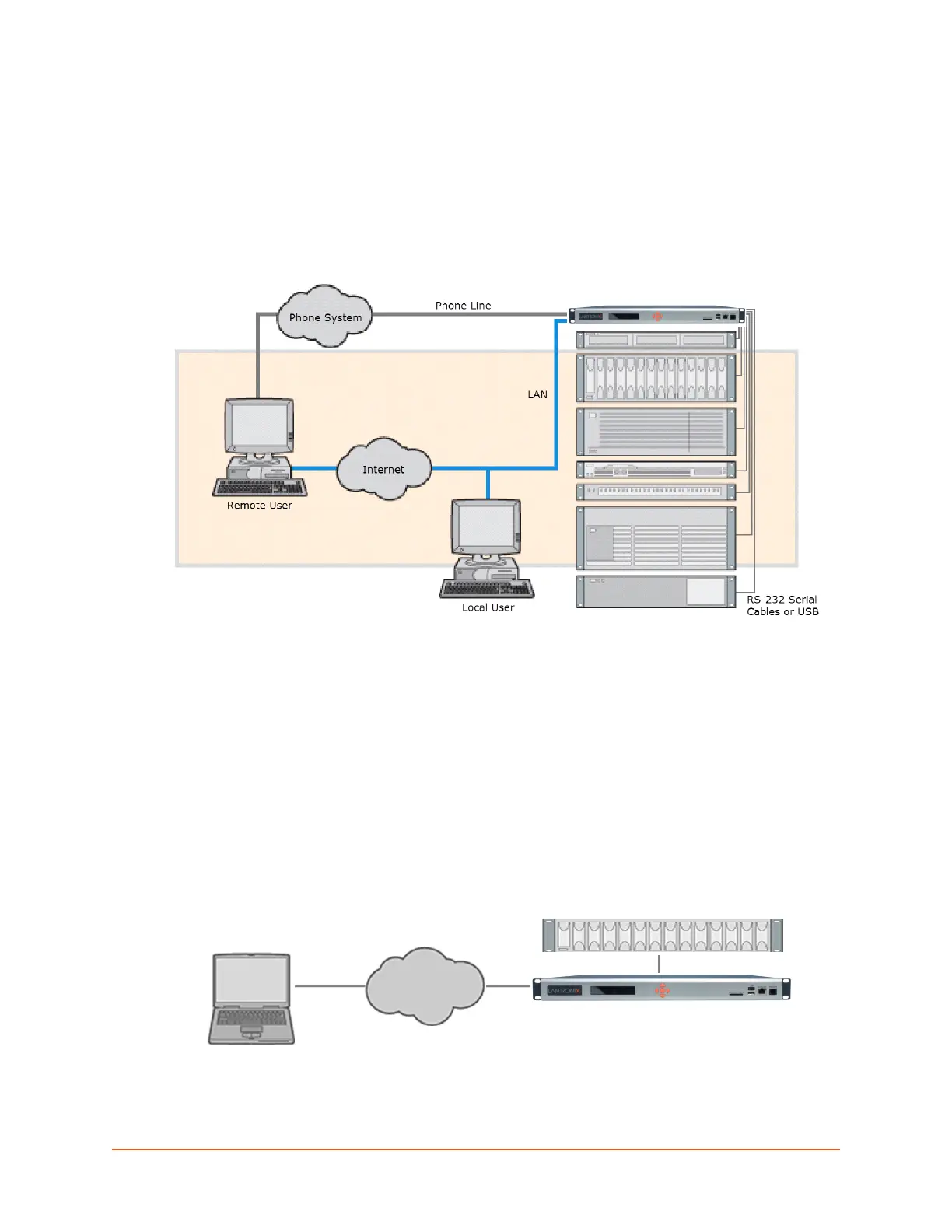

Figure 14-1 SLC - Console Manager Configuration
This chapter includes three typical scenarios for using the SLC unit. The scenarios assume that
the SLC 8000 advanced console manager is connected to the network and has already been
assigned an IP address. In the examples, we use the command line interface. You can do the
same things using the web page interface except for directly interacting with the SLC unit (direct
command).
Telnet/SSH to a Remote Device
The following figure shows a Sun server connected to port 2 of the SLC 8000 advanced console
manager.
Figure 14-2 Remote User Connected to a SUN Server via the SLC unit
In this example, the sysadmin would:
1. Display the current settings for device port 2:
SLC 8000 Advanced Console Manager
Remote User
Internet
Sun Server
SLC 8000 Advanced Console Manager

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
