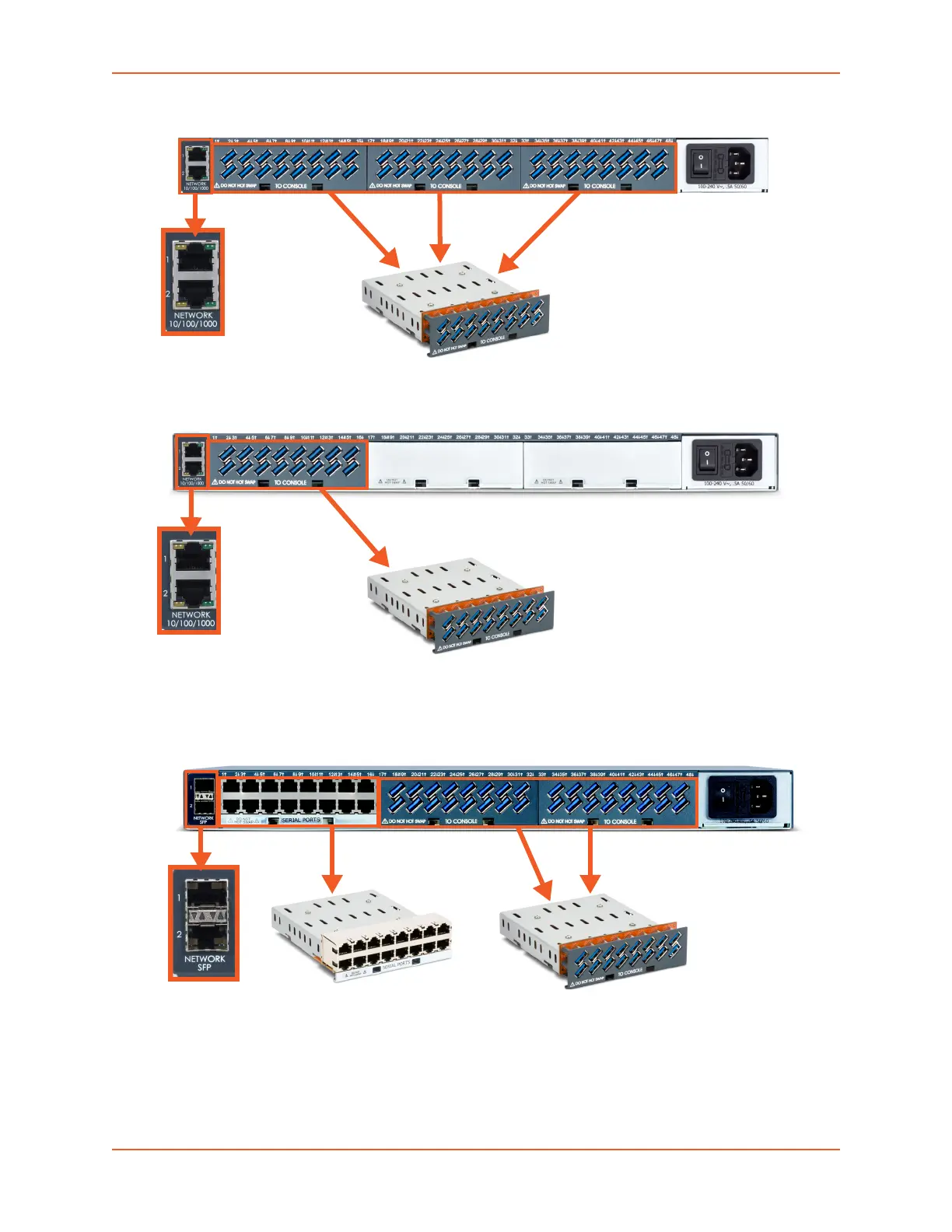

Figure 2-3 Three 16-Port USB I/O Modules Installed in Bays 1, 2, & 3 with Dual Ethernet Port
Figure 2-4 One 16-Port USB I/O Module Installed in Bay 1 with Dual Ethernet Port
Figure 2-5 One 16 RJ-45 Serial Port I/O Module Installed in Bay1 & Two 15 USB I/O Module Installed
Bays 2 & 3 with Dual SFP Port
Bay 1 Bay 2 Bay 3
Bay 1 Bay 2 Bay 3
Bay 1 Bay 2 Bay 3
