6: Basic Parameters

SLC™ 8000 Advanced Console Manager User Guide 68

To enter settings for one or both network ports:

1. Click the Network tab and select the Network Settings option. The following page displays:

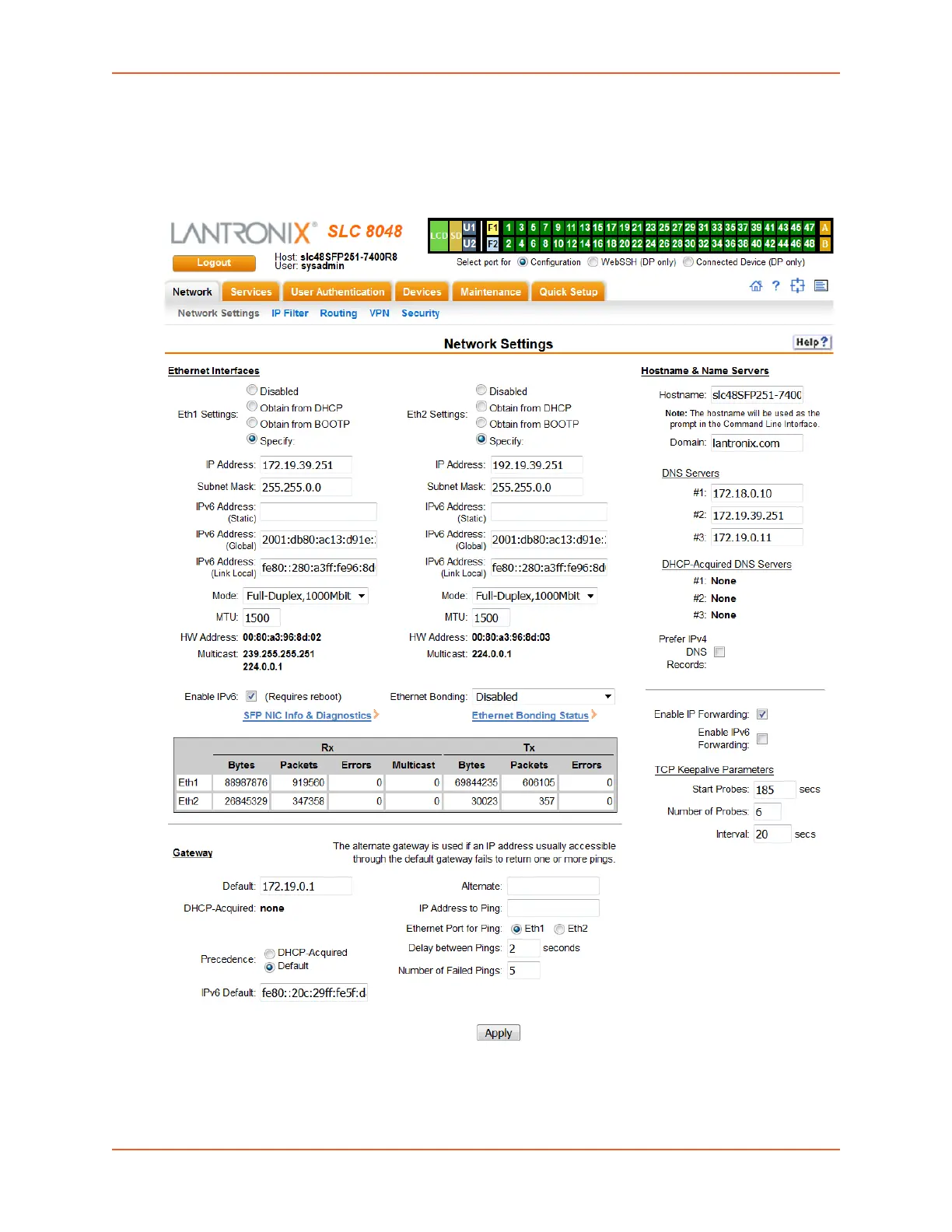

Figure 6-1 Network > Network Settings

Note: The SFP NIC Info & Diagnostics link in the Network > Network Settings page only

appears in SLC units equipped with an SFP NIC board.
