3: Installation

SLC™ 8000 Advanced Console Manager User Guide 43

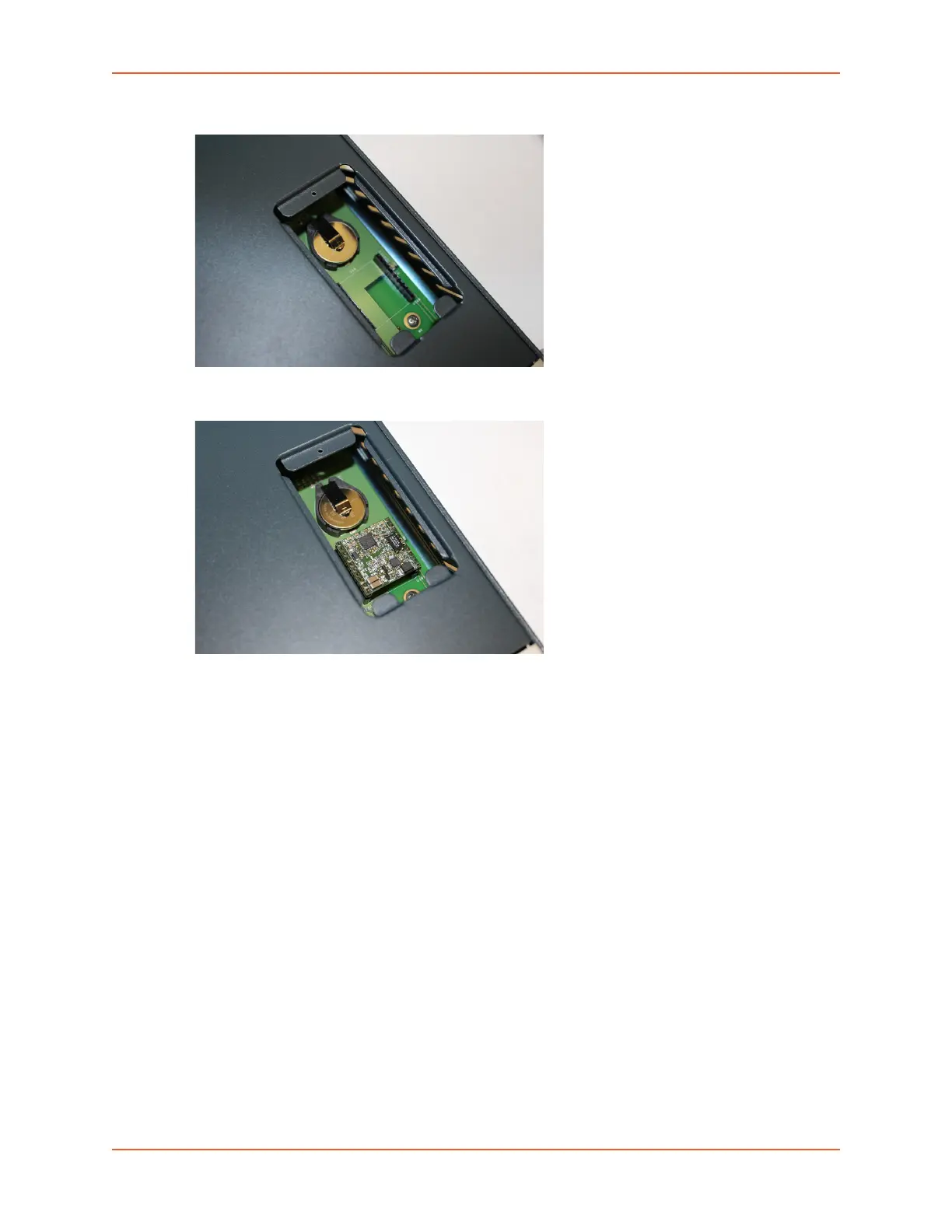

7. Make sure to have correct pin alignment.

8. Press the modem down to make sure it sits down all the way in the socket.

9. Double-check the new modem placement to make sure it is done properly.

10. Place the battery/modem door back.

11. Carefully tighten the door screw.
