3: Installation

SLC™ 8000 Advanced Console Manager User Guide 42

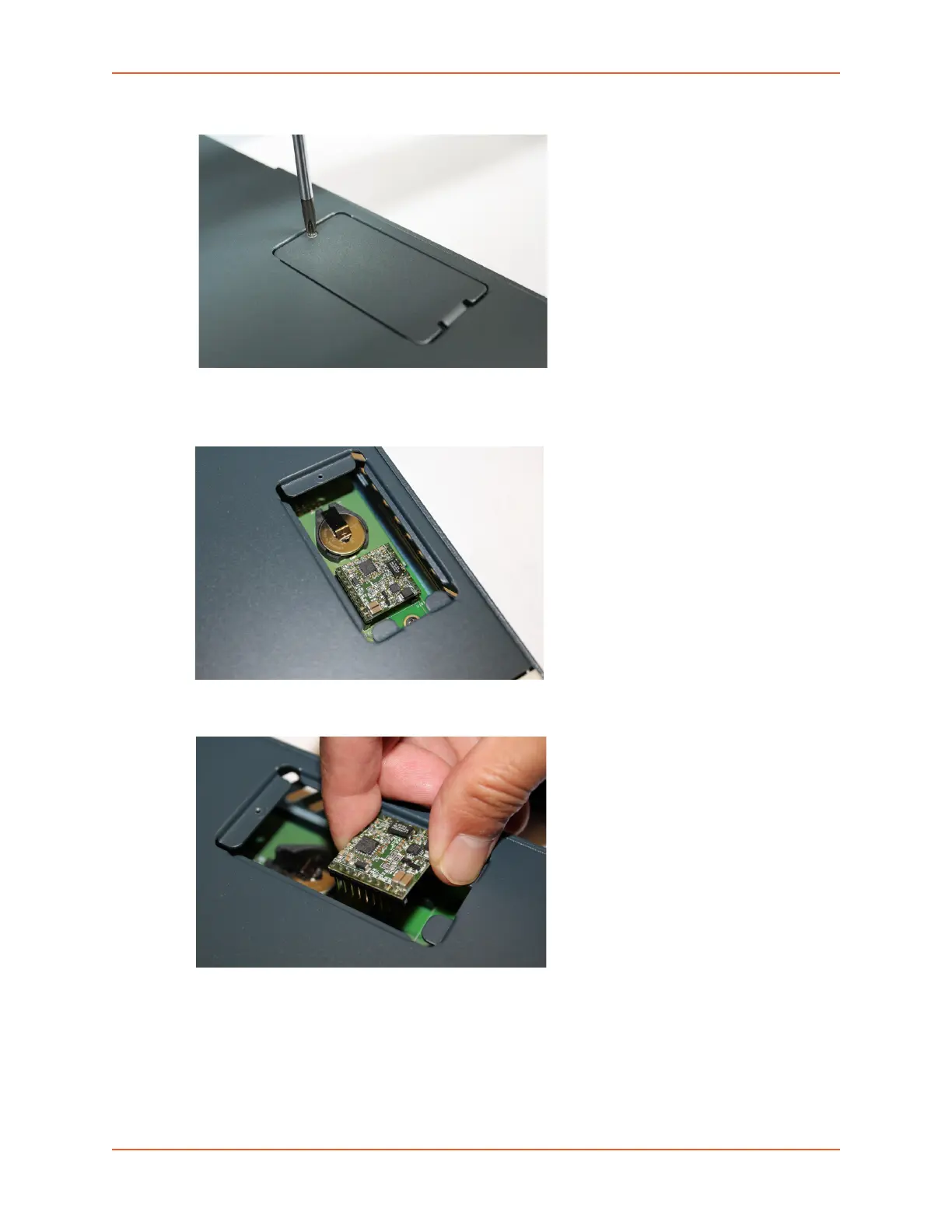

3. Carefully unscrew and lift the door off with the screw driver.

4. Take note of the orientation of the modem in the photograph so that you can install a new

modem correctly with the same orientation.

5. If there is a modem replacement, carefully lift the old modem out of its socket.

6. Install the new modem with correct orientation.
