Lantronix SLC 8000 User Manual

3: Installation
SLC™ 8000 Advanced Console Manager User Guide 46

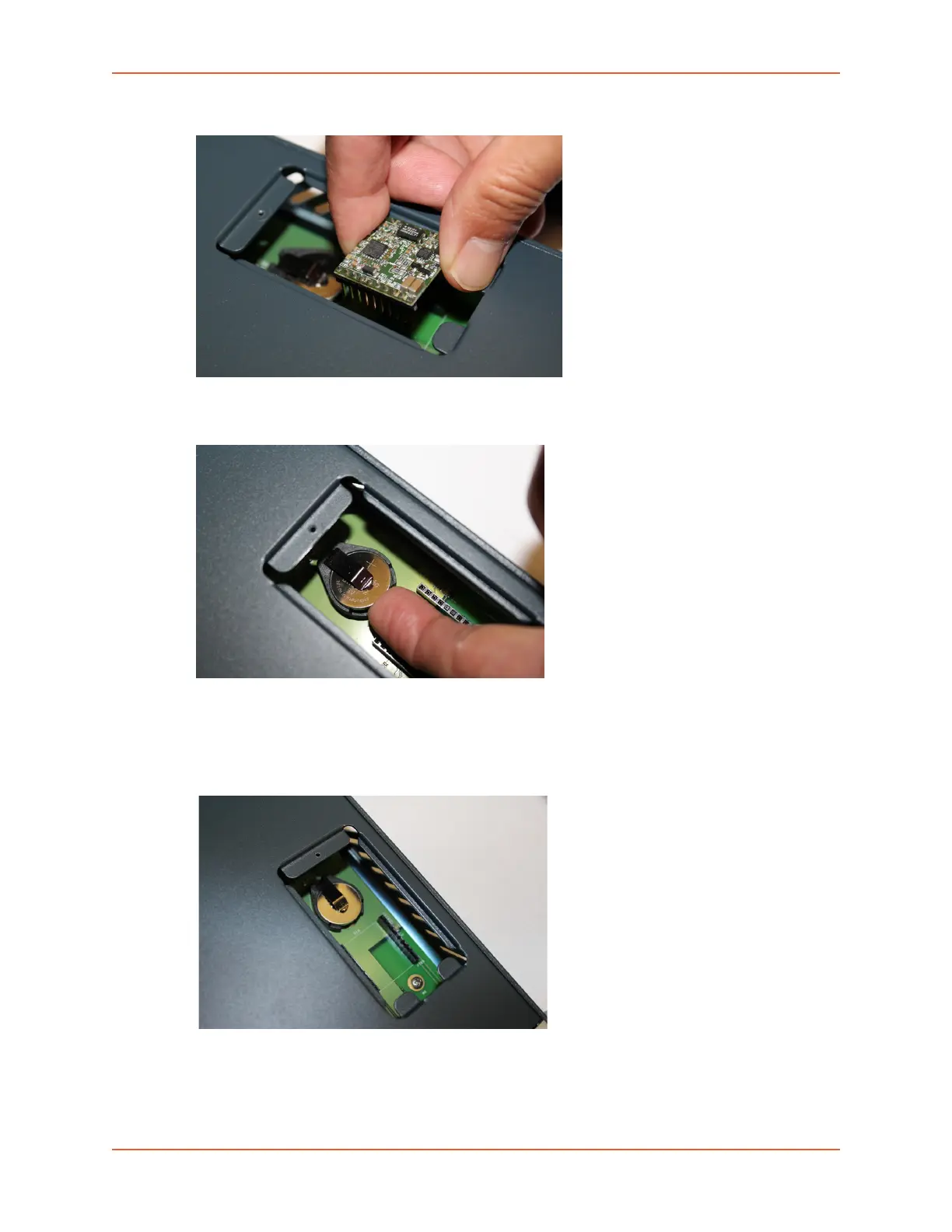

5. If there is a modem installed, carefully lift the modem out of its socket.
6. Use fingers to lift the battery out of the socket.
Caution: DO NOT USE A METAL OBJECT TO PRY OUT THE BATTERY. IT MAY
SHORT THE BATTERY AND DAMAGE THE BATTERY HOUSING.
7. Install the new battery with the (+) side up making sure the battery sits completely and
securely in the housing.
8. Re-install the modem with correct orientation.
a. Make sure also to have correct pin alignment.

Lantronix SLC 8000 Specifications

General

Rack mounting	Yes
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	2
AC input voltage	120-230 V
Power source type	AC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	5030 g
Dimensions (WxDxH)	436.9 x 304.8 x 43.18 mm
