a. Remove the top cover. See “Remove the top cover” on page 225.
Step 2. Unfasten the screw that secures the network adapter to the chassis; then, lift it out of the chassis.

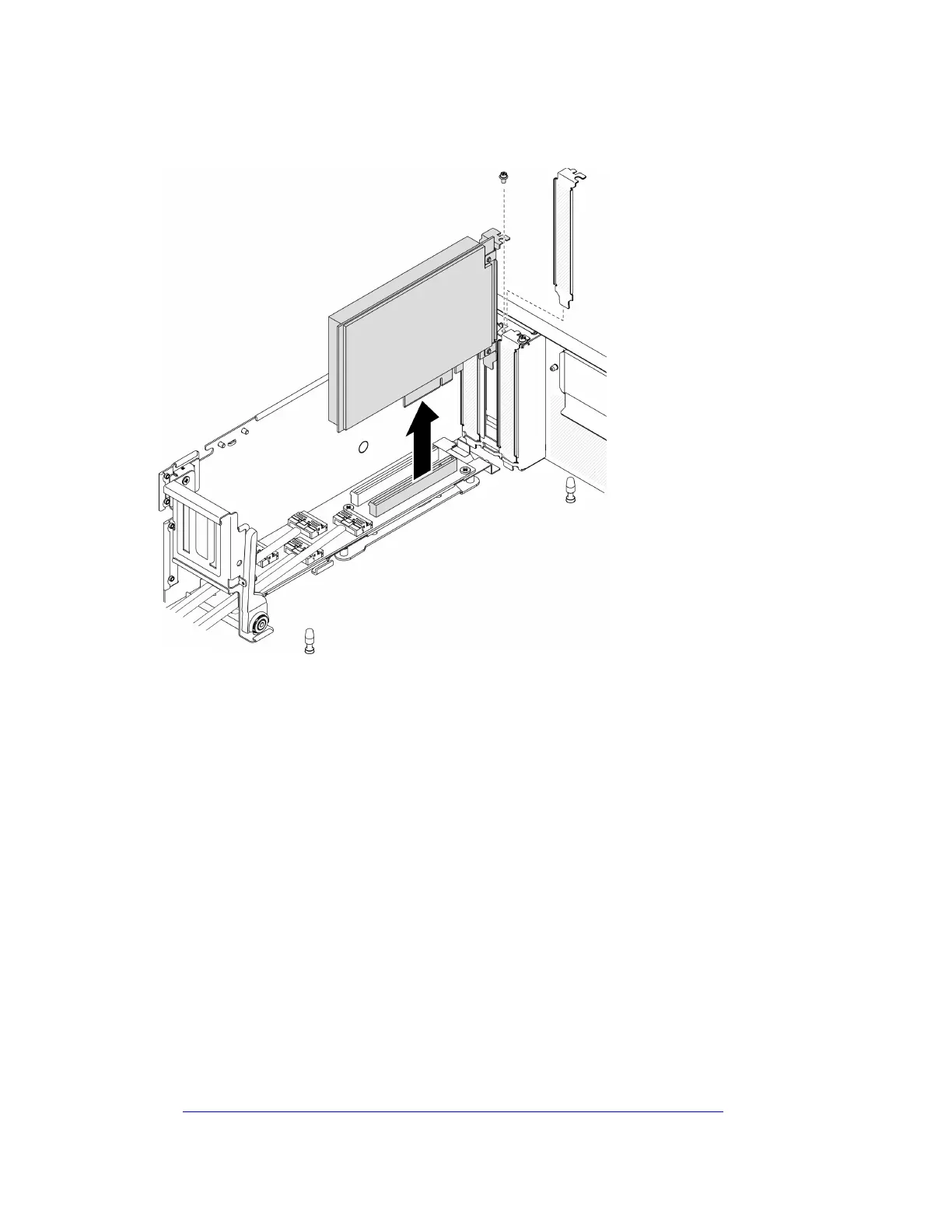

Figure 120. Removing the network adapter
After you finish
• Install a replacement unit. See “Install a network adapter” on page 180.
• If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Install a network adapter
Follow instructions in this section to install a network adapter to the front I/O expansion board or the front I/O
expansion board module.
About this task
Attention:
• Read “Installation Guidelines” on page 121 and “Safety inspection checklist” on page 122 to ensure that
you work safely.
• Touch the static-protective package that contains the component to any unpainted metal surface on the
server; then, remove it from the package and place it on a static-protective surface.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-BXei6L6c05osQVLt4w5XYx
180 ThinkSystem SR670 V2 Maintenance Manual
