EMC shield and filler panel from the bay or PCI or PCIe adapter slot cover in the event that you later
remove the device.
• For a complete list of supported optional devices for the server, see
https://static.lenovo.com/us/en/
serverproven/index.shtml
.
• Depending on your server configuration for SXM GPU Model, the following drive types can be installed
into each drive cage with their corresponding drive bay numbers:
– Supports four or eight 2.5-inch NVMe drives

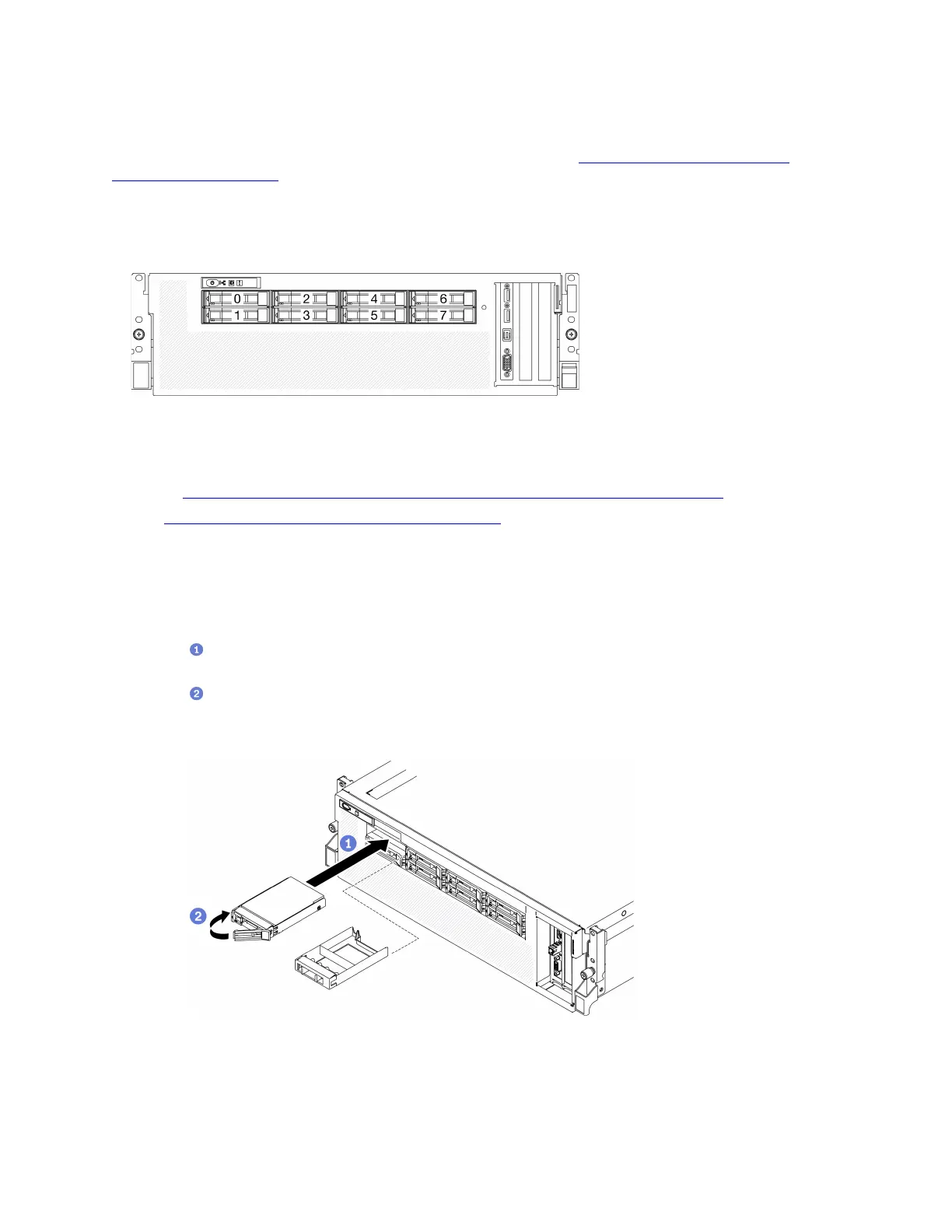

Figure 198. 2.5-inch drive bay numbering in SXM GPU Model
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-BXei6L6c05osQVLt4w5XYx
• Youku: https://list.youku.com/albumlist/show/id_59636529
Procedure
Step 1. If a drive bay filler is installed in the drive bay, pull the release lever on the filler and slide it out of the
server.
Step 2. Install a 2.5-inch drive.
a.
Make sure that the drive handle is in the open position. Then, align the drive with the guide
rails in the bay and gently push the drive into the bay until the drive stops.
b.
Rotate the drive handle to the fully closed position until the latch clicks.
Figure 199. Installing a 2.5-inch hot-swap drive in SXM GPU Model
Step 3. If you have additional drives to install, do so now; if any of the drive bays is left empty, fill it with a
drive bay filler.
After you finish
266 ThinkSystem SR670 V2 Maintenance Manual
