8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_Transient_1
1062 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010
14.1.136.3 Function 2: Evaluate rising and falling signal edges

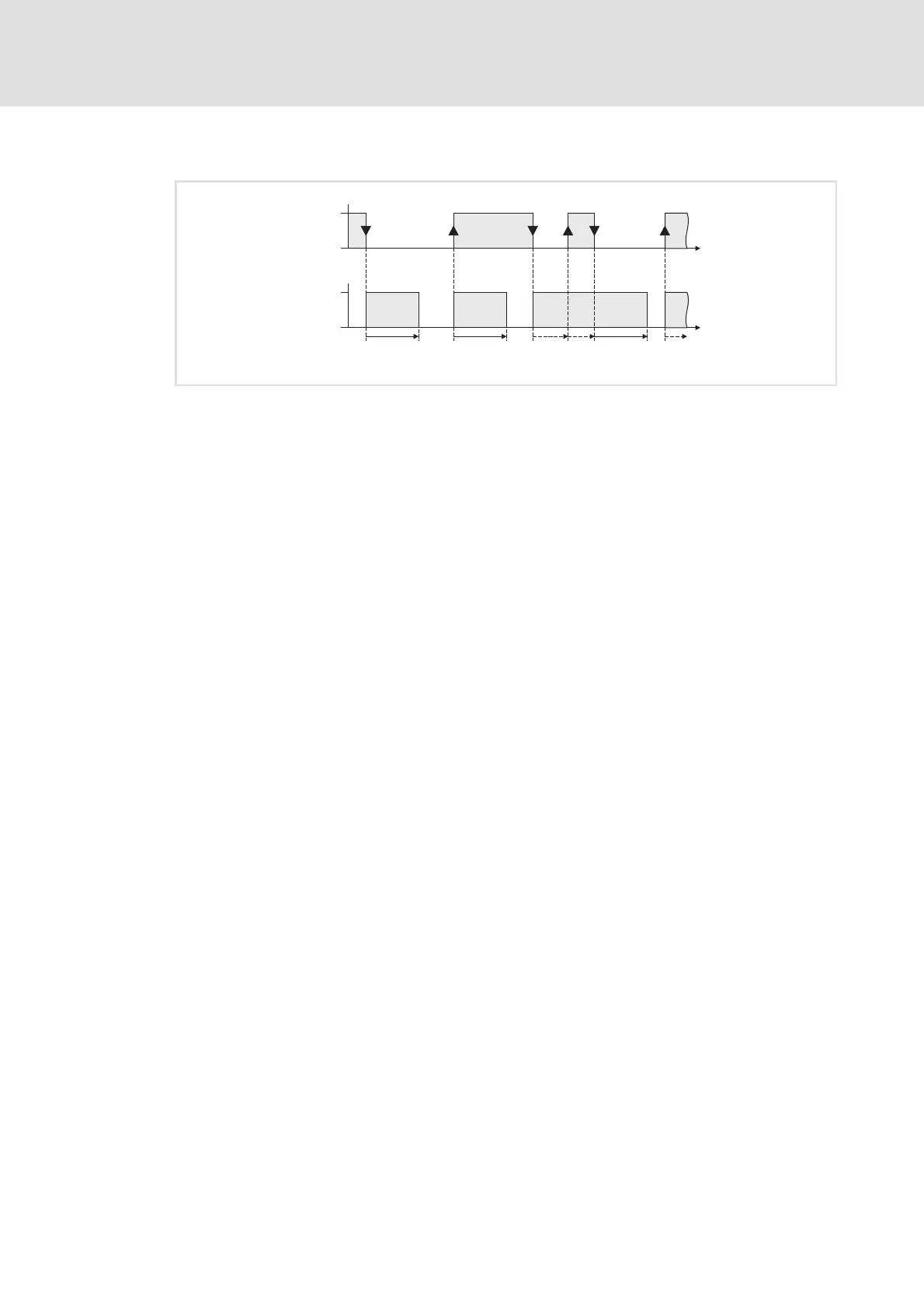

[14-46] Switching performance for function selection "2: High and low edge"
Functional sequence
1. A signal change (FALSE/TRUE edge or TRUE/FALSE edge) at the bIn input sets the bOut
output to TRUE.
2. After the parameterised pulse duration has elapsed, the bOut output is reset to FALSE
unless another signal change has taken place at the bIn input.
– In case of another signal change at the input bIn, the pulse time restarts to elapse,
i.e. the output bOut can be retriggered.
n Pulse duration
TRUE
FALSE
bOut
t
TRUE
FALSE
bIn
t
