8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_ComparePhi_1
906 L Firmware 05.00 - DMS 4.2 EN - 02/2010
14.1.27.1 Function 1: dnIn1 = dnIn2
This function compares two signals with regard to equality. It can, for instance, provide the
comparison "actual speed equals setpoint speed " (n
act
= n
set
).
Use C01672
to set the window within which the equality is to apply.
Use C01671
to set a hysteresis if the input signals are not stable and the output
oscillates.

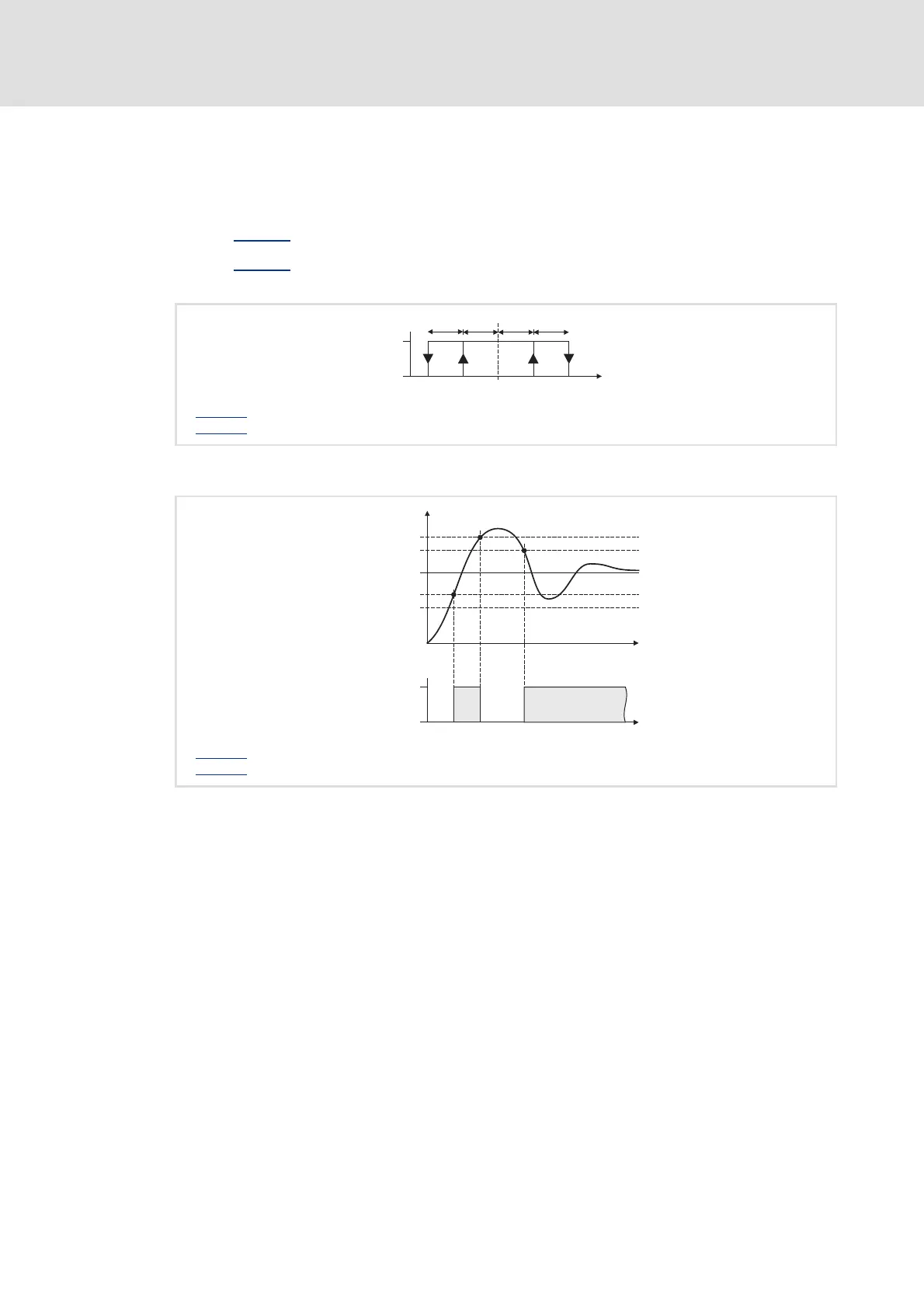

[14-12] Function 1: Switching performance
[14-13] Function 1: Example
n C001671: Hysteresis
o C001672
: Window
TRUE
FALSE
bOut
dnIn2_p
dnIn1_p

n C001671: Hysteresis
o C001672
: Window
dnIn1_p
dnIn2_p
TRUE
FALSE
bOut
t
t
