Lenze 8400 HighLine C Series User Manual

8400 HighLine | Parameter setting & configuration
System bus "CAN on board"
Process data transfer
520 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010
10.7.1.3 RPDO3 | Port block "LP_CanIn3"

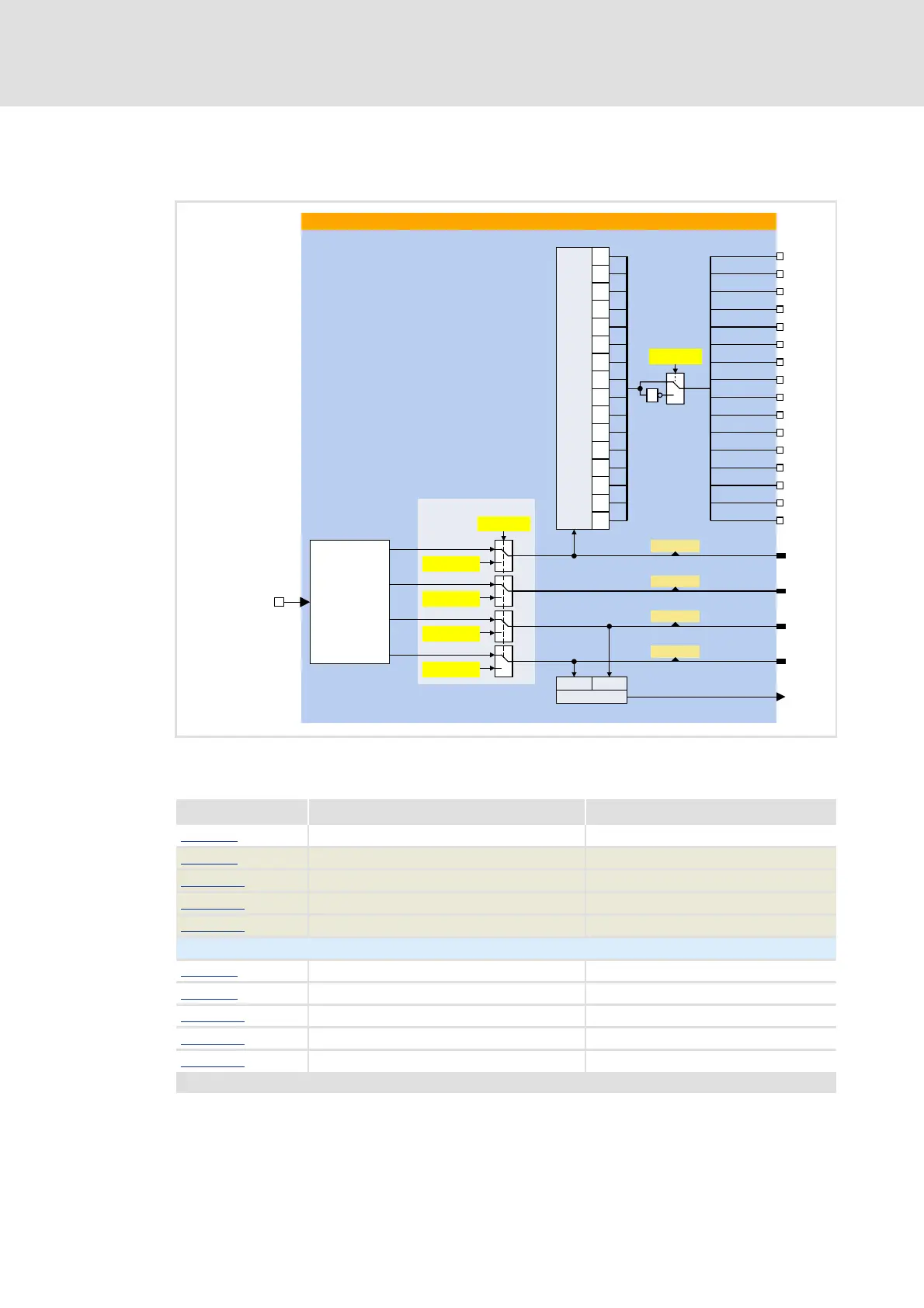

The LP_CanIn3 port block maps process data object RPDO3 in the FB Editor.
Short overview of the parameters for LP_CanIn3:
Parameter Info Lenze setting
C00401/5 LP_CanIn3: Inversion bIn1_B0..15 0x0000
C00866/9 LP_CanIn3: wIn1 -
C00866/10 LP_CanIn3: wIn2 -
C00866/11 LP_CanIn3: wIn3 -
C00866/12 LP_CanIn3: wIn4 -
PDO mapping
C00408/3
LP_CanIn3: Mapping selection CanIn
C00409/9
LP_CanIn3: wIn1 MapVal 0
C00409/10
LP_CanIn3: wIn2 MapVal 0
C00409/11
LP_CanIn3: wIn3 MapVal 0
C00409/12
LP_CanIn3: wIn4 MapVal 0
Highlighted in grey = display parameter
