Function blocks | L_Compare_1
14.1.22.1 Function 1: nIn1 = nIn2
This function compares two signals with regard to equality. It can, for instance, provide the
comparison "actual speed equals setpoint speed " (n
act
= n
set
).
Use C00682
to set the window within which the equality is to apply.
Use C00681
to set a hysteresis if the input signals are not stable and the output
oscillates.

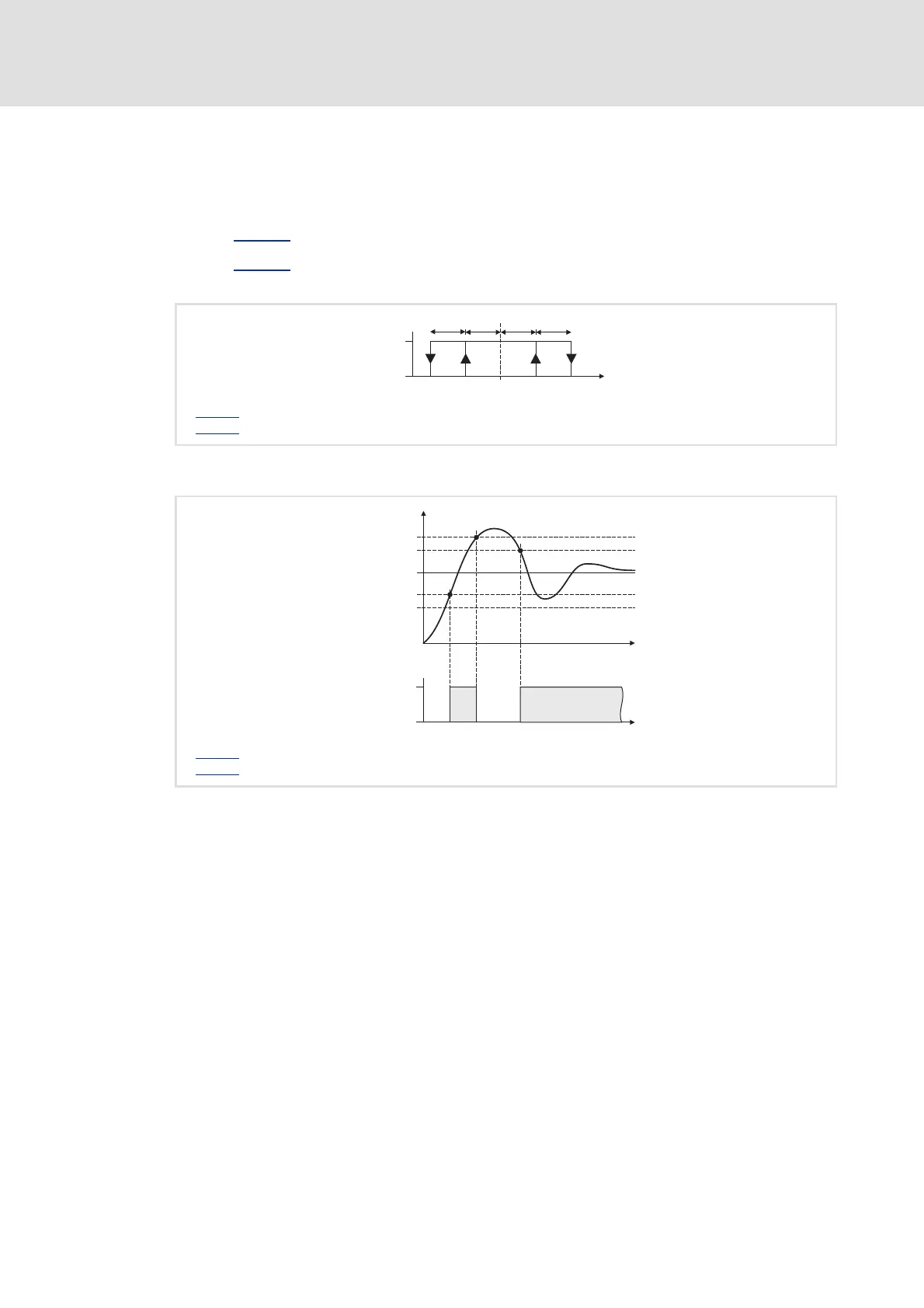

[14-6] Function 1: Switching performance
[14-7] Function 1: Example
n C00681: Hysteresis
o C00682
: Window
TRUE
FALSE
bOut
nIn2_a
nIn1_a
n C00681: Hysteresis
o C00682
: Window
nIn1_a
nIn2_a
TRUE
FALSE
bOut
t
t
