10-8
Using the LI-8150 Multiplexer
Power
Active
Chamber
V3V2
V4
System
Fai
lure
Active
Sol
enoid
Activate All Chambers

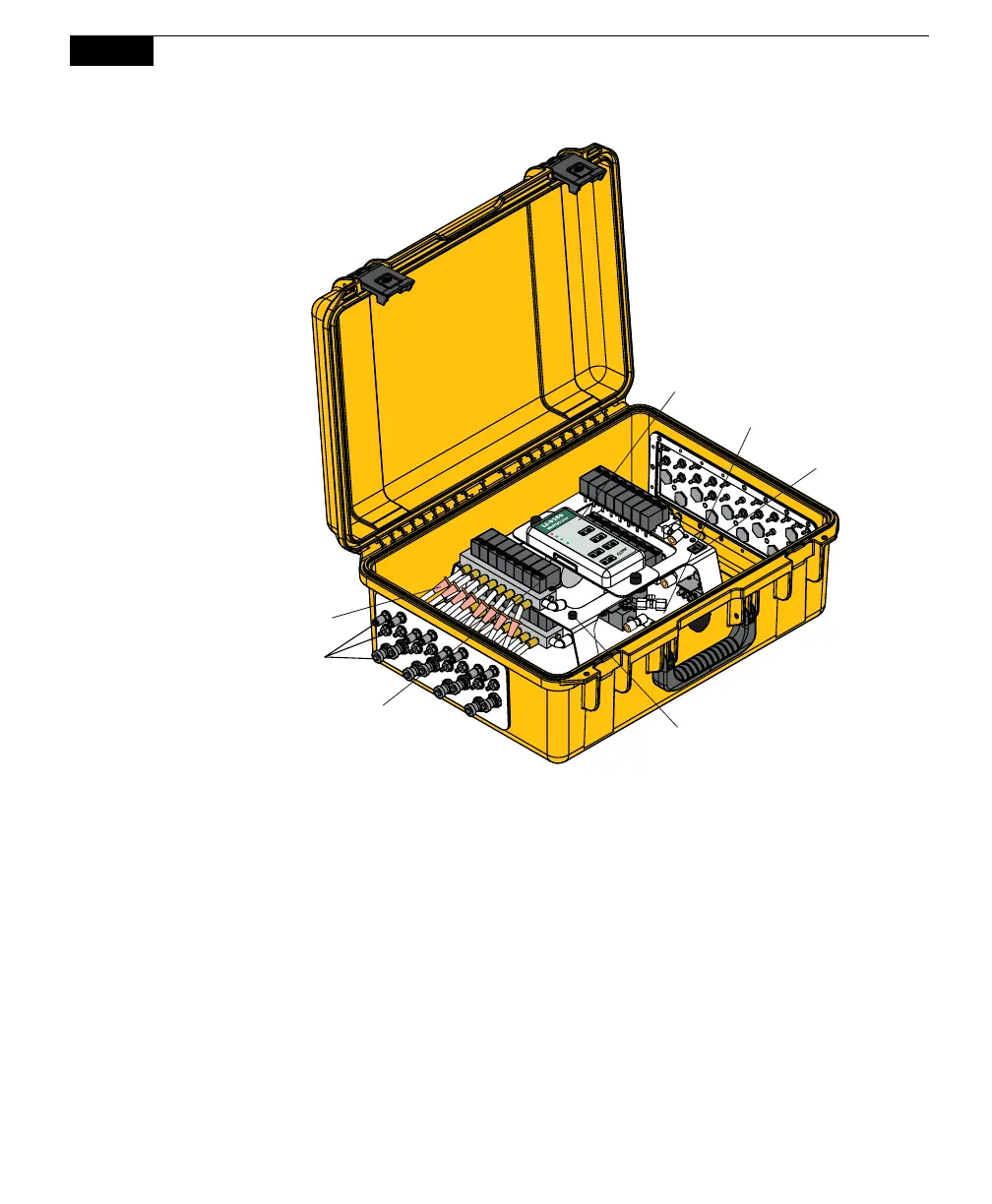

Chamber Connections
(Air In, Air Out, Electronics)
Air Filters
Solenoid Valves
Control Panel
Access Panel
Chamber Actuator Button
On/Off Switch
On either side of the LI-8150 case are connections for up to 8 chambers. The left
side shown above (optional) has only chamber connections; the right side (not
pictured) also has power and LI-8100A connections. The raised platform in the
case contains the On/Off switch and central Control Panel (below), which provides
a display of the active chamber and valve. A Chamber Actuator Button is also
located on the raised platform; pressing this button closes all attached chambers (4
at a time), which is useful when preparing the chamber(s) for transport. The plate
under the raised panel has a small access panel that can be removed to access the
fuses.
