D_ELS150-12_3x34_3t2r_Emerson_BecktonASC_RAC100108

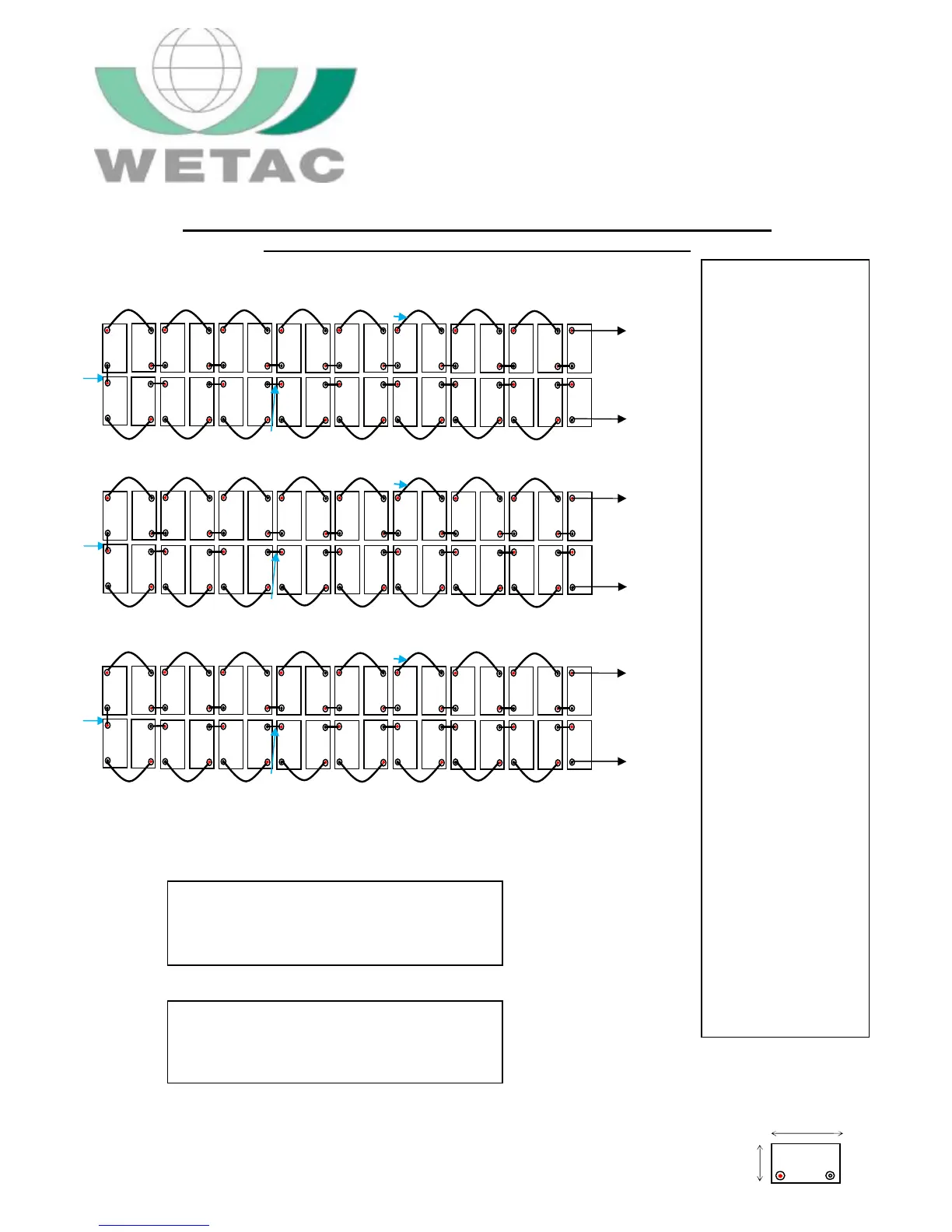

Layout Drawing for 3 x 34 ESL 150-12 on 6T2R Cladded Stand Site - Beckton
ASC – Emerson Network Power (Half stand population).
Order
for
Emerson
Network Power.
Sales o/n SO TBC (ref.
14040109470).
Supply
ESL 150-12
102 off
ACC CONN ESL55
48 off
(a) length = 75 mm
ACC CONN ESL134
3 off
(b)length = 100 mm
ACC IC CON LARGE
102 off
ACC C50356
48 off
(c) length = 350 mm
ACC IC GFL
96 off
ACC IC HAG 157
6 off
(Take off covers)
N.B. Take off covers are
included, Take off cables
are NOT included.
ACC ST 1-36
3 off
ACC ST +/-
3 off
Drawing
1 off
ACC INSTR. MAN
1 off
ESL150
-
12
482mm
170mm
Stand Specifications;
L x D x H = 3180 mm x 1175 mm x 2450 mm
Laden Weight = 9691 Kg
N.B. Inter tier height = 375 mm
N.B. – The blocks and connectors are to populate the
lower three rows of the stand. The blocks &
accessories to populate the upper three rows are to be
supplied separately.
b
a
c
-V take off
+V take off
b
a
c
-V take off
+V take off
b
a
c
-V take off
+V take off
