Liebert Hipulse E - Page 145

WETAC UK LTD
OFFICE 17
BOLTON BUSINESS CENTRE
44-46 LOWER BRIDGEMAN ST
BOLTON BL2 1DG
D_ELS150-12_3x34_6t2r_Emerson_BecktonASC_RAC100108

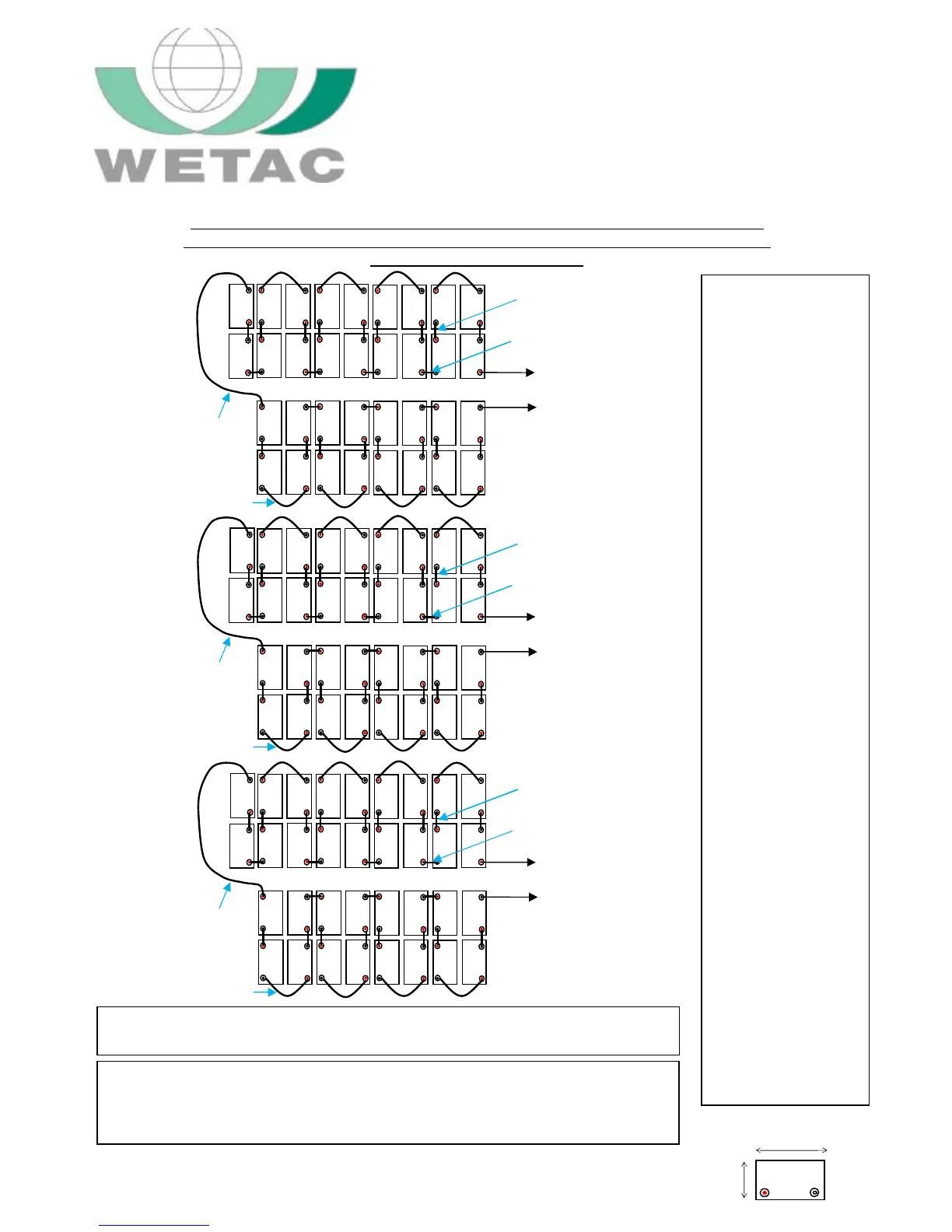

Layout Drawing for 3 x 34 ESL 150-12 on 2 x 6T2R Cladded Stand - Site - Beckton
ASC – Emerson Network Power (N.B. Second stand being supplied with this layout to
be poplulated at a future date).
Order
for
Emerson
Network Power.
Sales o/n SO TBC (ref.
14040109470).
Supply
ESL 150-12
102 off
ACC CONN ESL55
21 off
(a) length = 75 mm
ACC CONN ESL134
51 off
(b)length = 100 mm
ACC IC CON LARGE
144 off
ACC C50356
24 off
(c) length = 350 mm
ACC C501006
3 off
(c) length = 350 mm
ACC IC GFL
54 off
ACC IC HAG 157
6 off
(Take off covers)
N.B. Take off covers are
included, Take off cables
are NOT included.
ACC ST 1-36
3 off
ACC ST +/-
3 off
Drawing
1 off
ACC INSTR. MAN
1 off
ESL150
-
12
482mm
170mm
Cladded Stand Specifications (N.B. total of 2 stands to be supplied with initial order) ;
L x D x H = 1730 mm x 1175 mm x 2450 mm
Laden Weight = 4915 Kg
N.B. Inter tier height = 375 mm
N.B. – The blocks and connectors are to populate #1 stand only.
The blocks & accessories to populate the #2 stand to be supplied separately.
b
a
c
-V take off
+V take off
d
b
a
c
-
V
take off
+V take off
d
b
a
c
-V take off
+V take off
d
