Installation Manual Liebert Hipulse E Chapter 3 – Battery Installation
Single or '1+N' UPS System
(07/04) Page 3-7

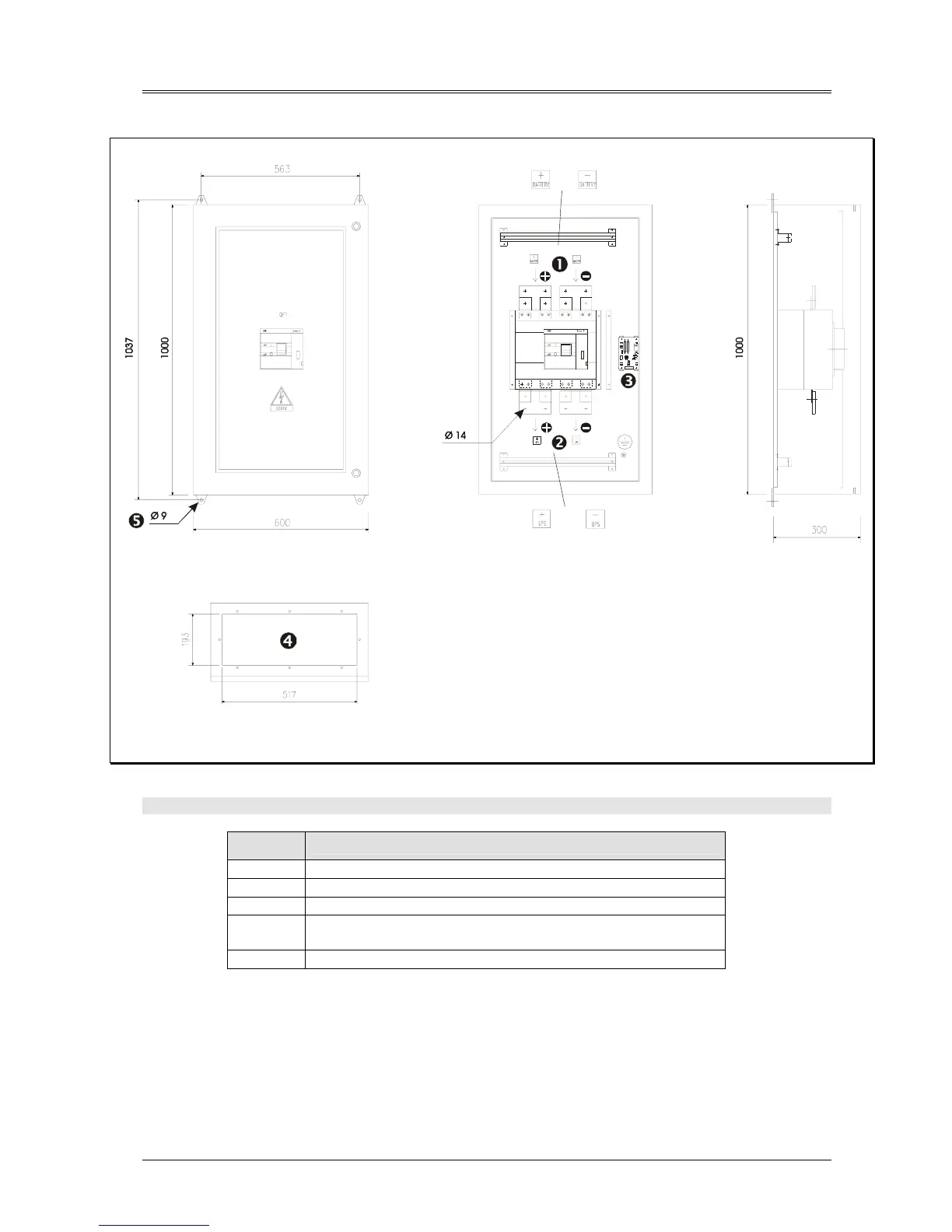

Figure 3-3 Battery circuit breaker box - 1000A
BCB 1000A
LEGEND
Battery connections (+/-)
Connections
from UPS (+/-)
Battery circuit breaker controller board
Cable entry: top and bottom. User to size and cut holes for the cables
to be used.
Wall mounting holes
