Chapter 4 – ‘1+N’ System Liebert Hipulse E Installation Manual
Single or '1+N' UPS System
Page 4-12 (07/04)

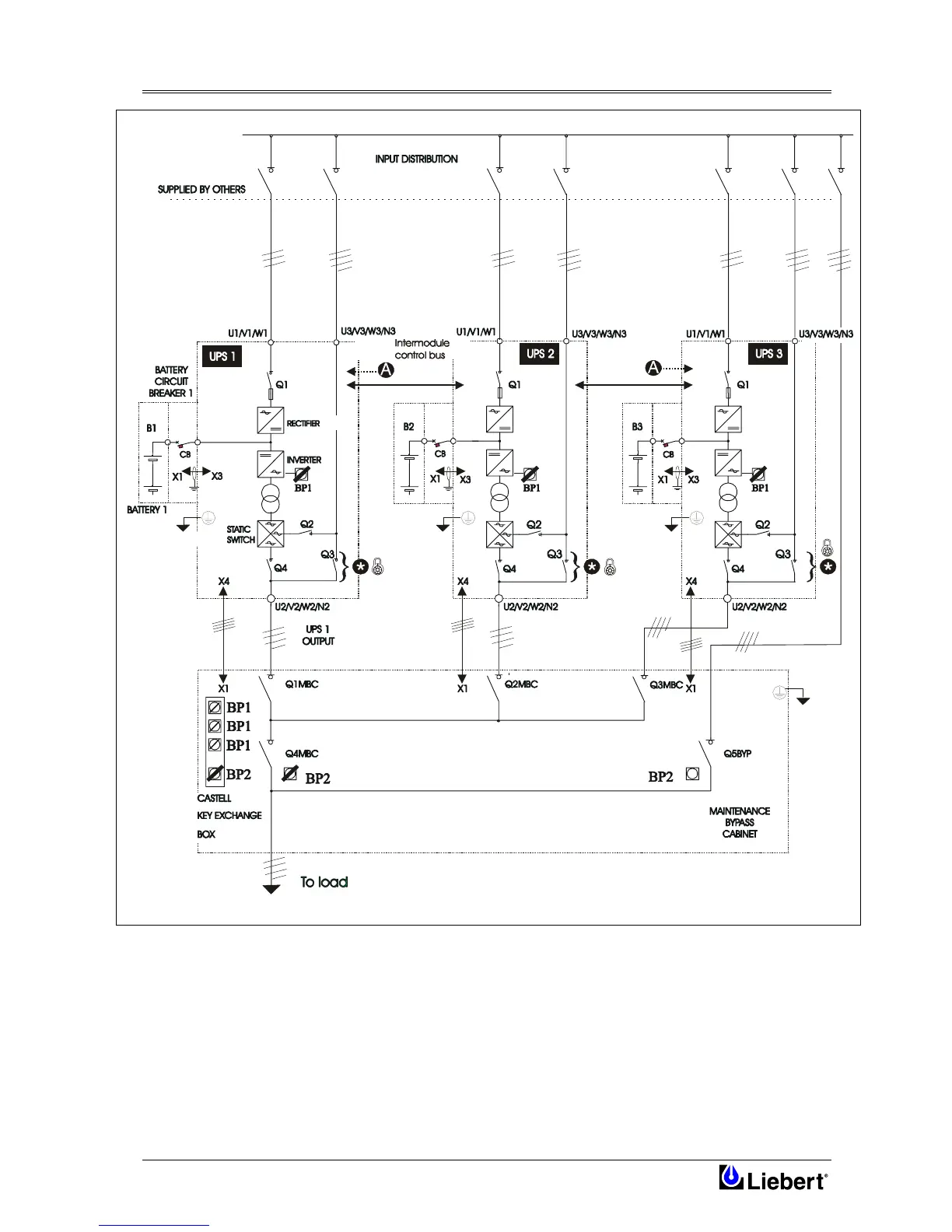

Figure 4-8 Example of configuration with three UPS's connected in parallel with the external maintenance bypass cabinet.
This drawing should show an external maintenance bypass supply for the system (with three UPS's) as referred to in the
warning message at the bottom of page 4-1.
