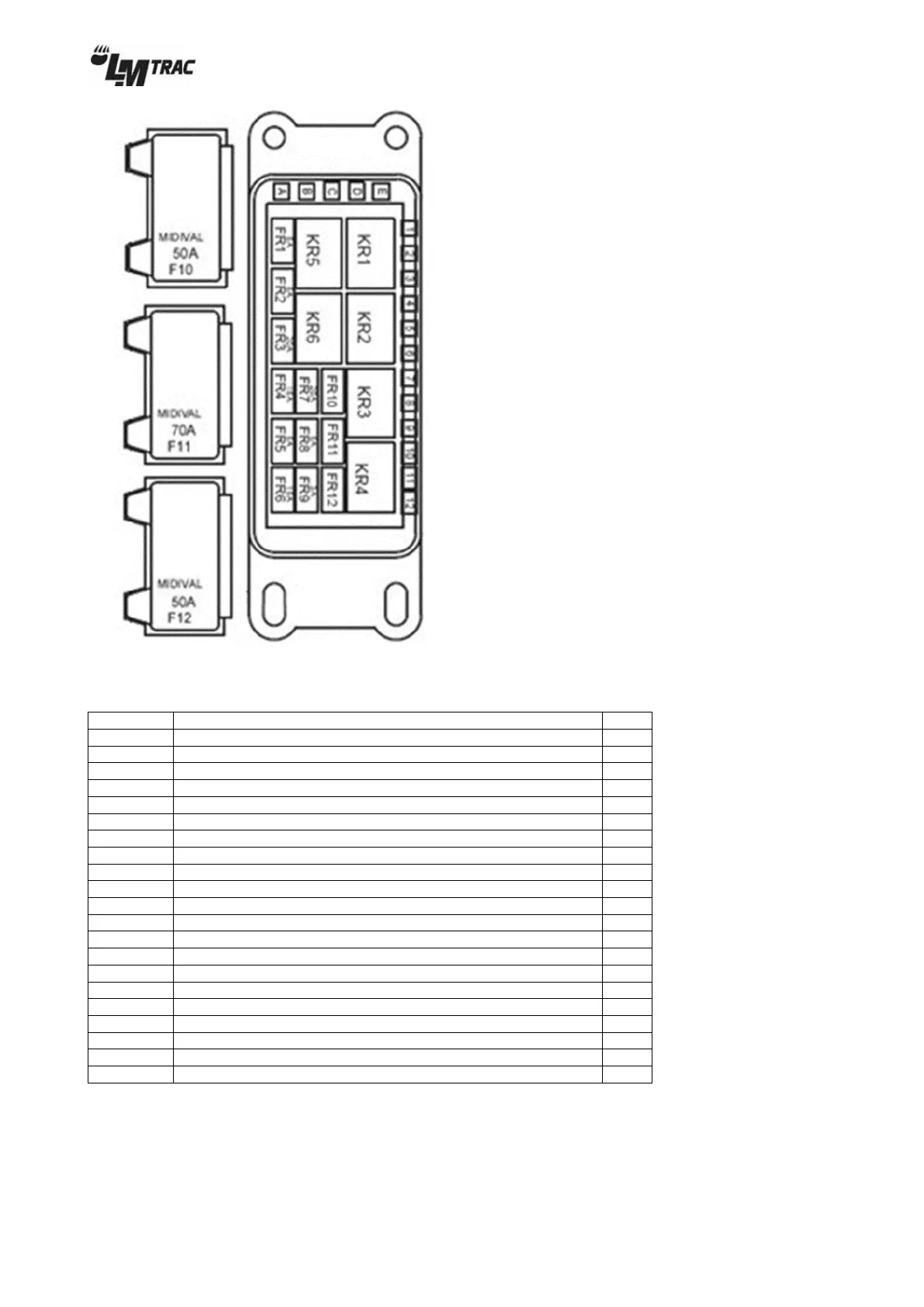

Figure 69
Fuse sizes 3A, 5A and 30A are of MINI type. Fuse sizes of 50A and 70A are of MAXI type.
Position
Function
Fuse
FR1
Power supply for preheater relay
5 A
FR2
Power supply for separate fuel lift pump relay
5 A
FR3
ECU power supply
30 A
FR4
Engine start
30 A
FR5
Separate fuel lift pump power supply
5 A
FR6
-
FR7
-
FR8
ECU wake up
5 A
FR9
Radio memory
3 A
FR10
Additional condenser on the roof
30 A
F10
Cabin main fuse
50 A
F11
Screen power core main fuse
70 A
F12
Preheater
50 A
KR1
ECU main relay
KR2
Engine start relay
KR3
Preheater relay
KR4
Separate fuel lift pump
KR5
Additional condenser on the roof
KR6
Joysticks, motor hydraulics
Only use the above fuse sizes!
