F609
Cabin interior lights & power supply (12V)
7,5 A
K3
Motor hydraulic safety relay (seat in use sensor)
K101
Turn signals
K102
Windscreen wiper, drizzle
K104
High beam left
K105
Low beam left
K106
High beam right
K107
Low beam right
K108
Automatic engine shutdown (parking brake in use sensor)
KV
Connector for optional central lubrication system
Only use the above fuse sizes!
Fuses on top of the battery:

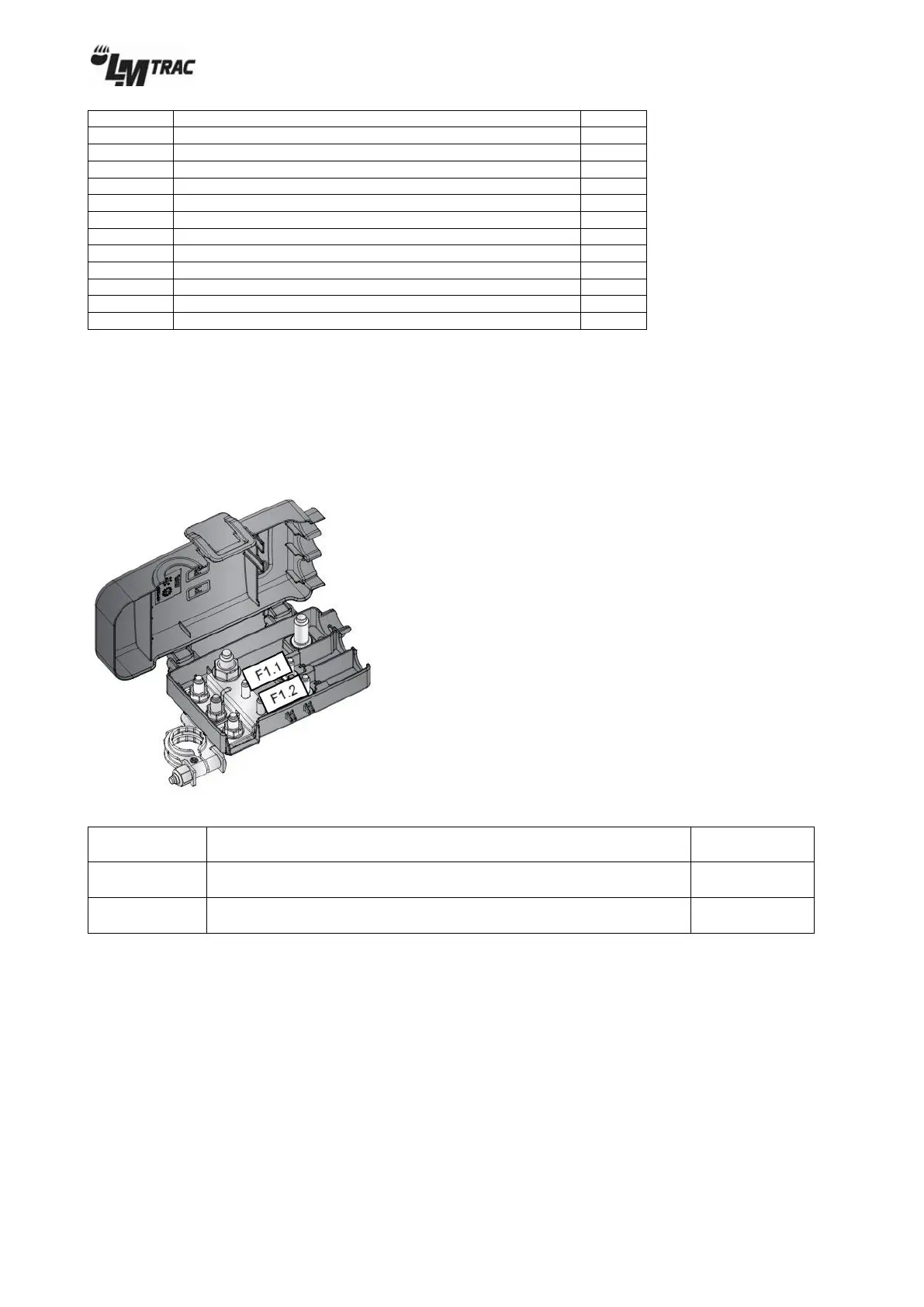

Figure 73
Position
Function
Fuse
F1.1
Main fuse
100 A
F1.2
ECU (Engine Control Unit) main fuse
60 A
Only use the above fuse sizes!
