Fuses and relays behind the right cabin door:
The fuses and relays are located behind the right cabin door. Open the door to check fuses.
Always keep the fuse box clean. Whenever a fuse needs to be replaced, you must determine the cause for its
breakdown.

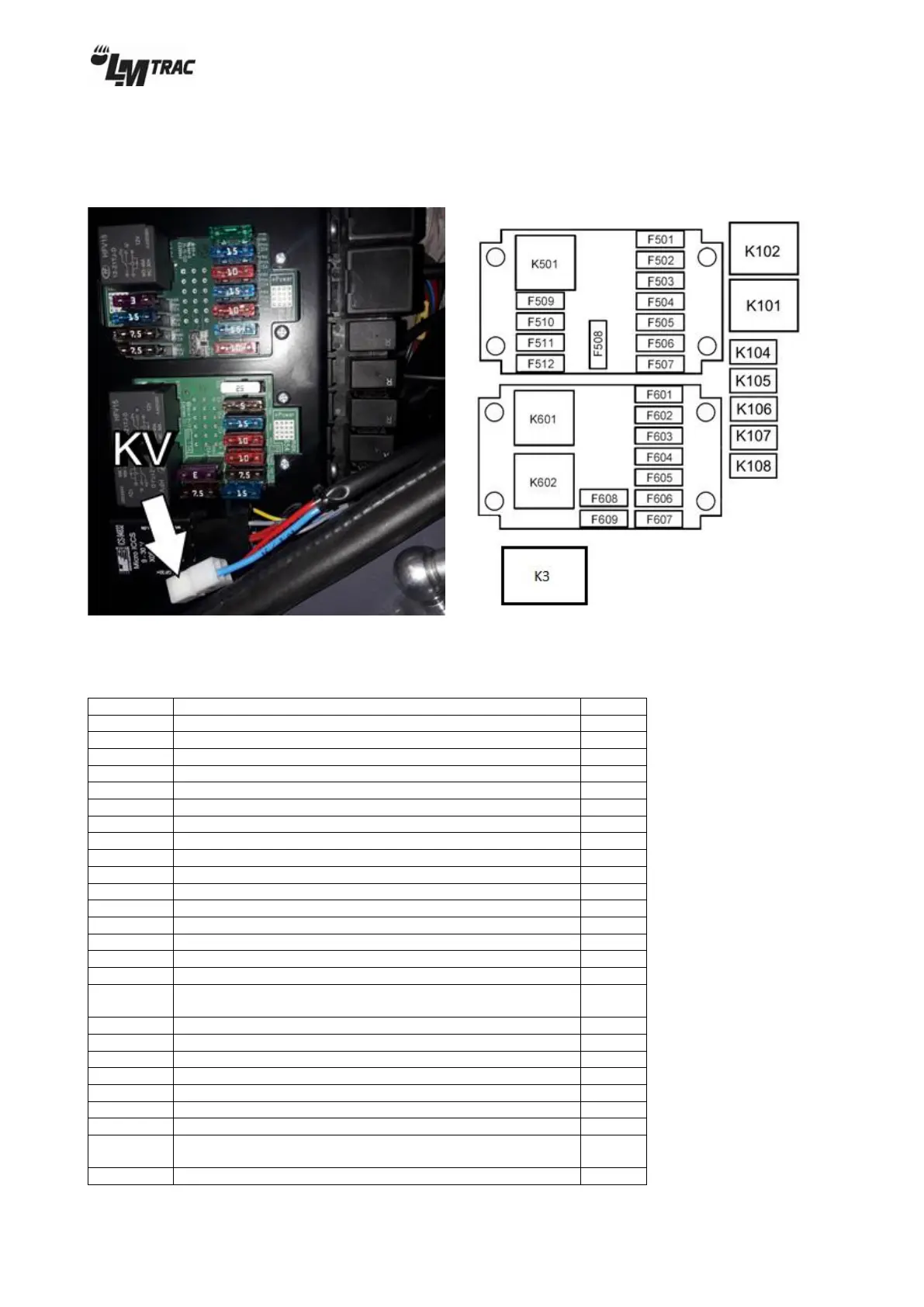

Figure 71 Figure 72
The fuses in the cabin are BLADE fuses.
Position
Function
Fuse
K501
Blower
F501
Blower and air conditioning
25 A
F502
Windscreen wiper, windscreen washer, horn
15 A
F503
Turn signals, low beams
10 A
F504
High beam left
15 A
F505
Low beam left
10 A
F506
High beam right
15 A
F507
Low beam right
10 A
F508
Break lights, parking brake, reversing buzzer (MINI-fuse)
7,5 A
F509
Parking lights right
3 A
F510
-
F511
Joysticks, display, rear view camera, speed sensor
5 A
F512
Radio
7,5 A
K601
Air suspension seat (optional accessory)
K602
Central lubrication system Safematic (optional accessory)
Power supply to connector KV
F601
Air suspension seat (optional accessory)
25A
F602
-
F603
-
F604
Hazard flasher, high beam flashing, parking lights
10 A
F605
Ignition Switch supply
10 A
F606
-
F607
Central lubrication system Safematic (optional accessory)
Power supply to connector KV
15 A
F608
Parking lights left
3 A
