Machine elements
- 16 -
02.20909.2079.9-03
1 Machine elements
11
12
1
10
9
2
3
4
5
6
8
22
21
20
19
15
14
16
17
13
18
7

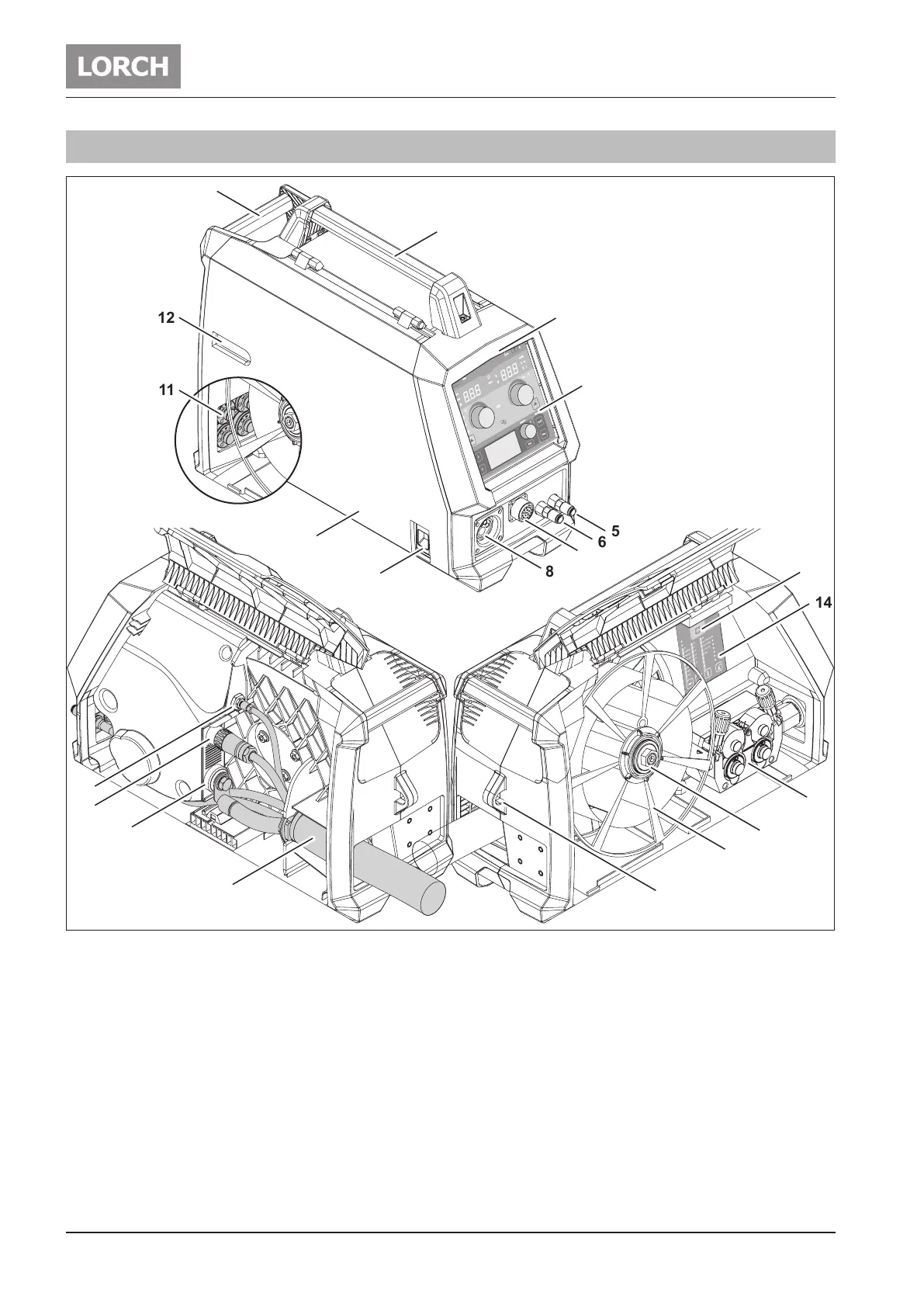

Fig. 1: Machine elements
1 Handle (hoisting point)
2 Handle (hoisting point)
3 Recessed grip
4 Control panel
5 Coolant return (red) (optional)
6 Coolant ow (blue) (optional)
7
Torch socket/digital push pull (optional)
8 Central socket
9 Closure
10 Side panel
11 Bracket for wire feed rools (replacement)
12 Inspection window for wire supply
13 Wire infeed button
14 Control panel for welding programs (for BasicPlus,
ControlPro)
15 Feed unit
16 Wire coil guide mandrel
17 Wire coil
18 Eyelet (hoisting point)
19 Interpass hose package
20 Connection for welding current
21 Connection socket for control line
22 Connection for shield gas
