To Synchronize CPs in NL220
1. Double-click on the device object in the device tree

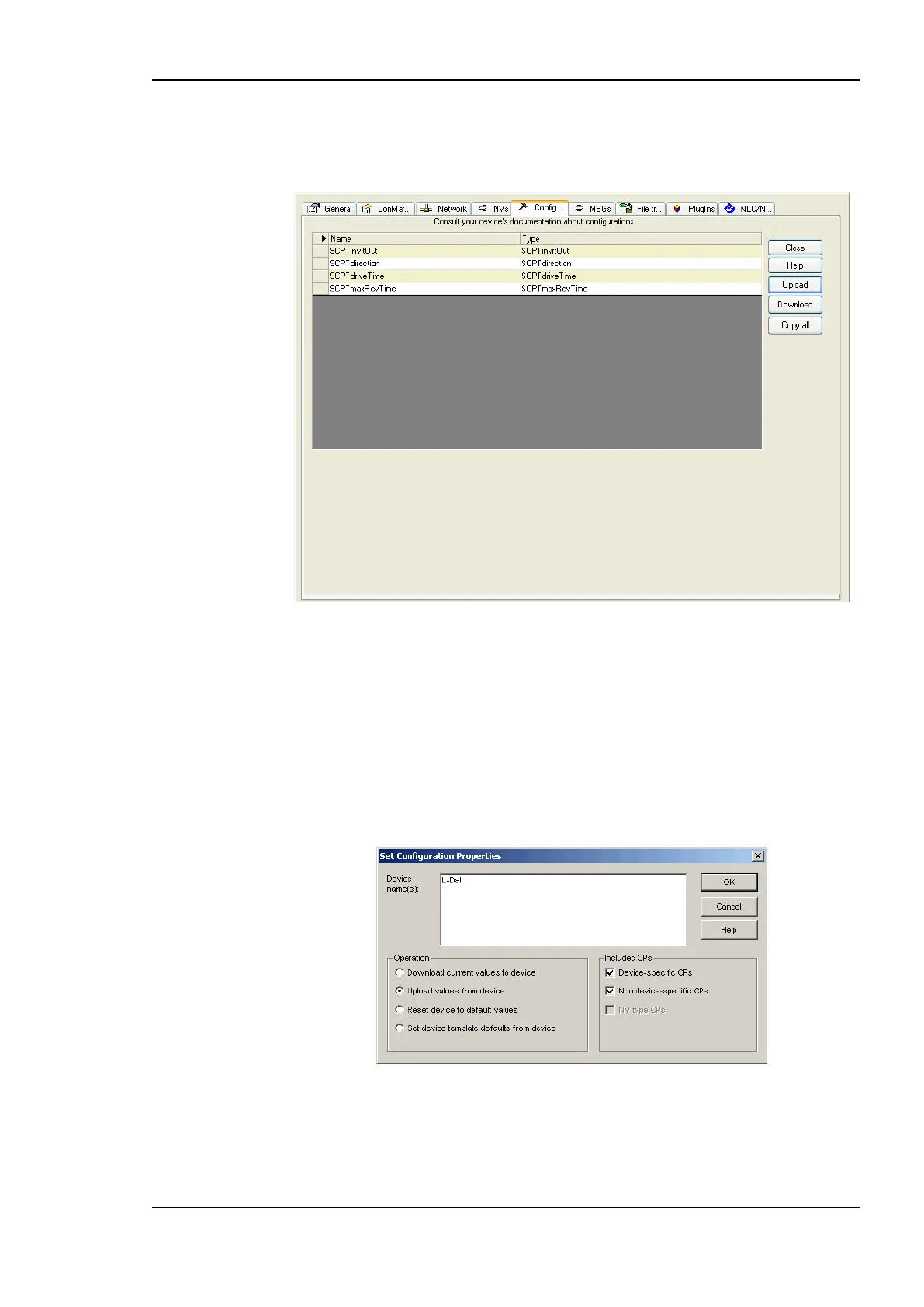

Figure 138: Configuration Tab for Configuration Properties in NL220.
2. Press the Upload button on the Configuration tab of the device properties (see Figure
138).
To Synchronize CPs in LonMaker TE
1. Right-click on a device object and select Commissioning Resync CPs… from the
context menu.
2. This opens the dialog shown in Figure 139.
Figure 139: Set Configuration Properties in LonMaker TE.
3. In this dialog select the radio button Upload values from device in the Operation
group box. To use the current settings of the device as default values for new devices,
select Set device template defaults from device.
