2.8. ADVANCED TOPICS
parts will not cause problems. The Extruder clearance parameters help
Slic3r detect potential collisions:
• Radius - The clearance that should be given around the extruder.
Take care if the extruder is not mounted centrally - take the largest
safe value, generally 80mm.
• Height - The vertical distance between the nozzle tip and the X axis
rods, or lowest part which may interfere with a nished print.

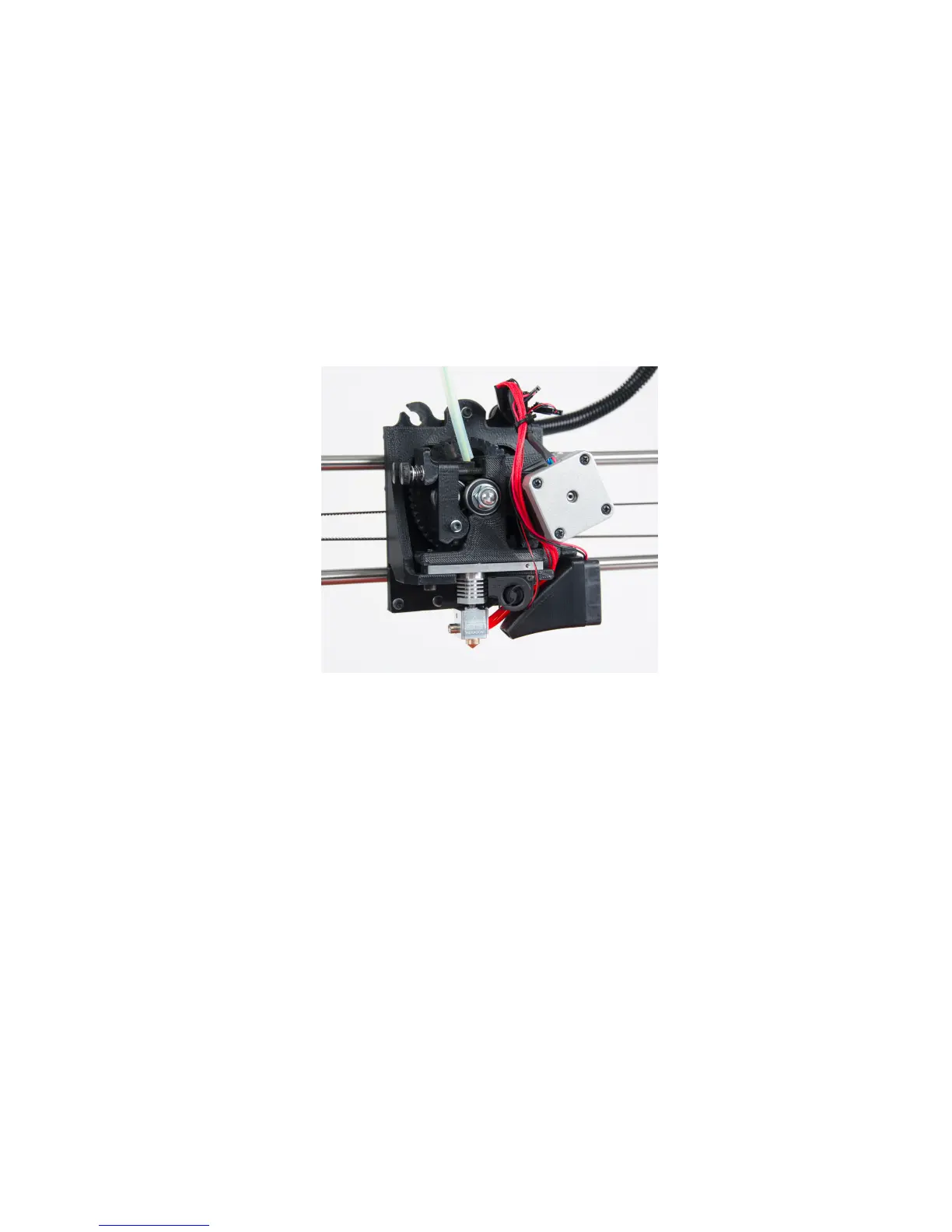

Figure 2.60: The clearance cylinder around an extruder.
121
