2.3. FIRST PRINT

1. Firmware Type

The gcode produced by Slic3r is tailored to particular types of rmware.

The rst step prompts for the rmware that the printer uses. For the TAZ

printer select RepRap (Marlin/Sprinter)

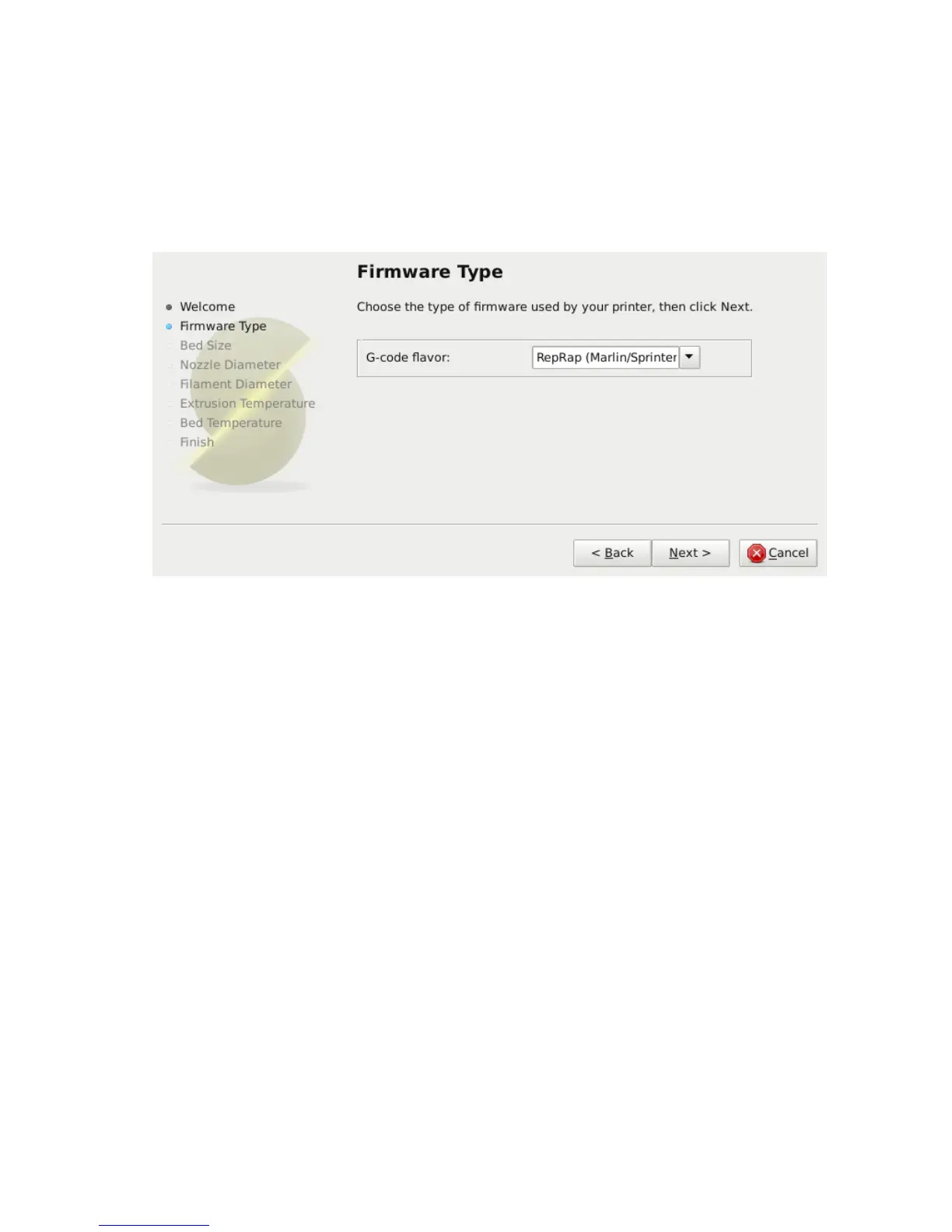

Figure 2.2: Conguration Wizard: Firmware Type
