1.6. VIEW OPTIONS

Ghost

Ghost view mode makes the model translucent to allow you to see what is

behind it.

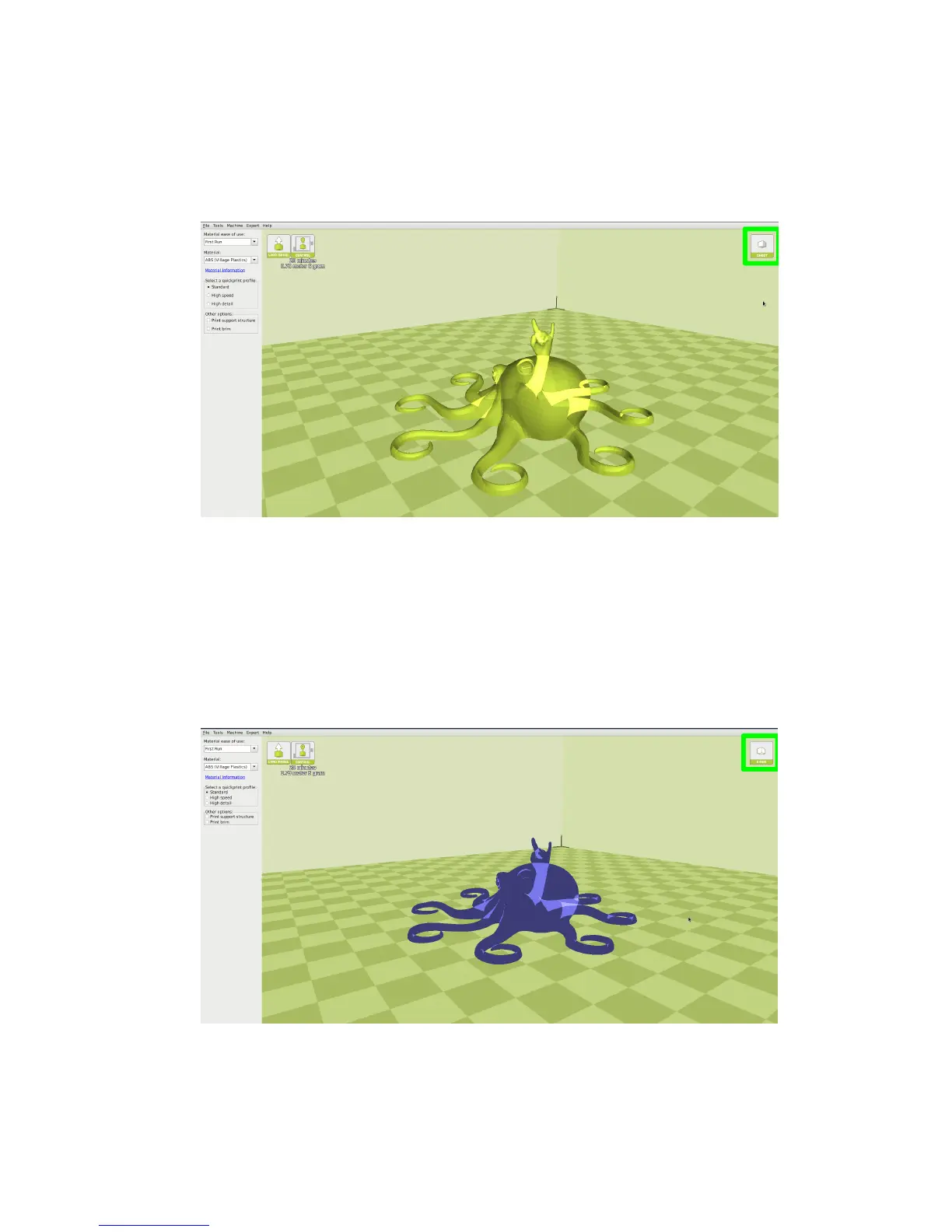

Figure 1.7: View in Ghost

Xray

Xray is very similar to Ghost mode. It will allow you to see into objects,

ensuring that inner details are correct.

Figure 1.8: View in Xray
