2.3. FIRST PRINT

At this stage the wizard is complete and the basic conguration is

dened.

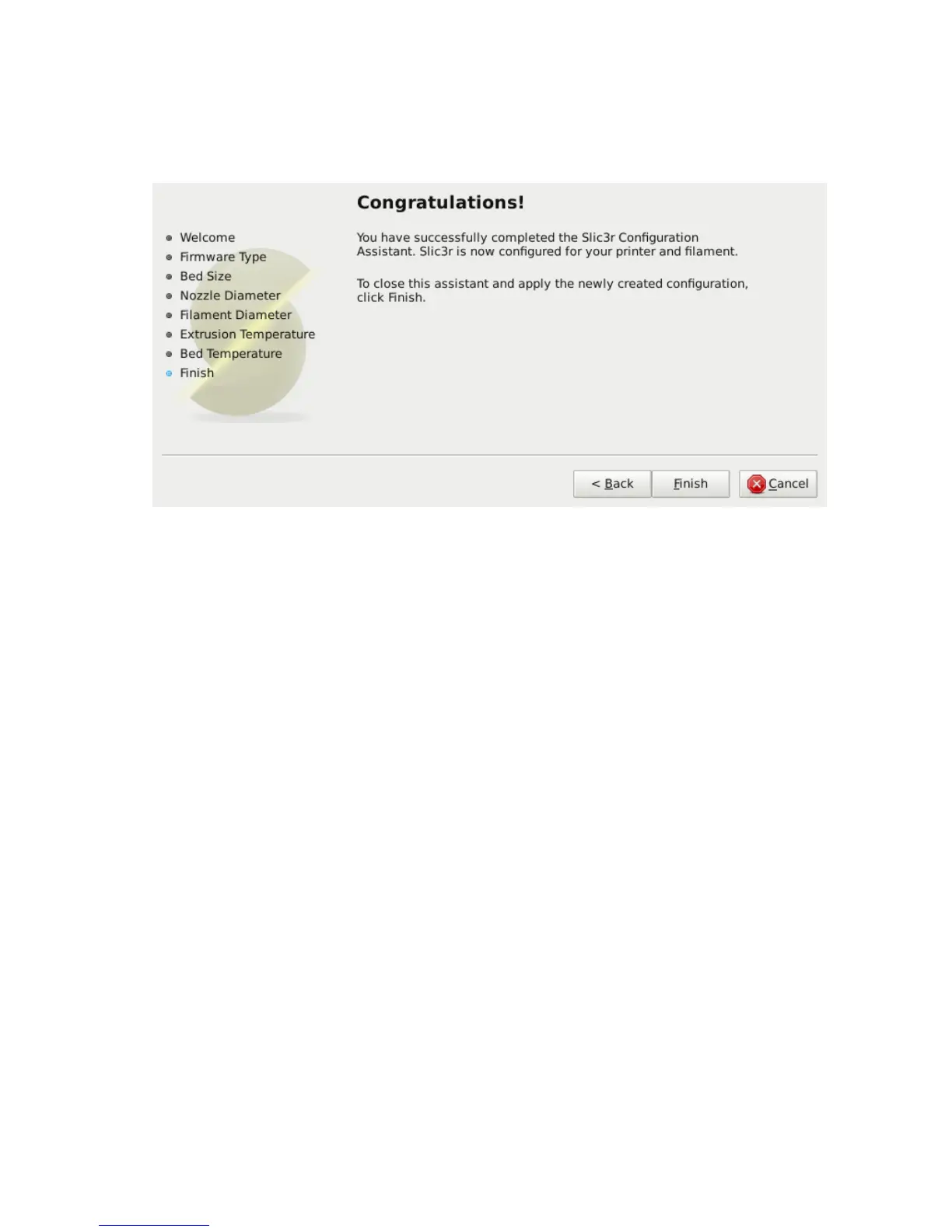

Figure 2.8: Conguration Wizard: End
