2.3. FIRST PRINT
3. Nozzle Diameter
The diameter of the hot-end nozzle is usually clearly displayed either in the
description of the hot-end, or in the associated documentation, when the
hot-end is purchased. The nozzle sizes available for the TAZ hot end are
0.35mm and 0.50mm.
If the nozzle was home-made, or came from a source without a diameter
given, then carefully measure the aperture as accurately as possible. One
way of determining nozzle size is to very slowly (1mm/s) extrude some
lament into free air and measure the thickness of the resulting extrusion
1
.
This has the benet of taking die swell into account, and consequently may
be a useful thing to do even if the diameter is known.

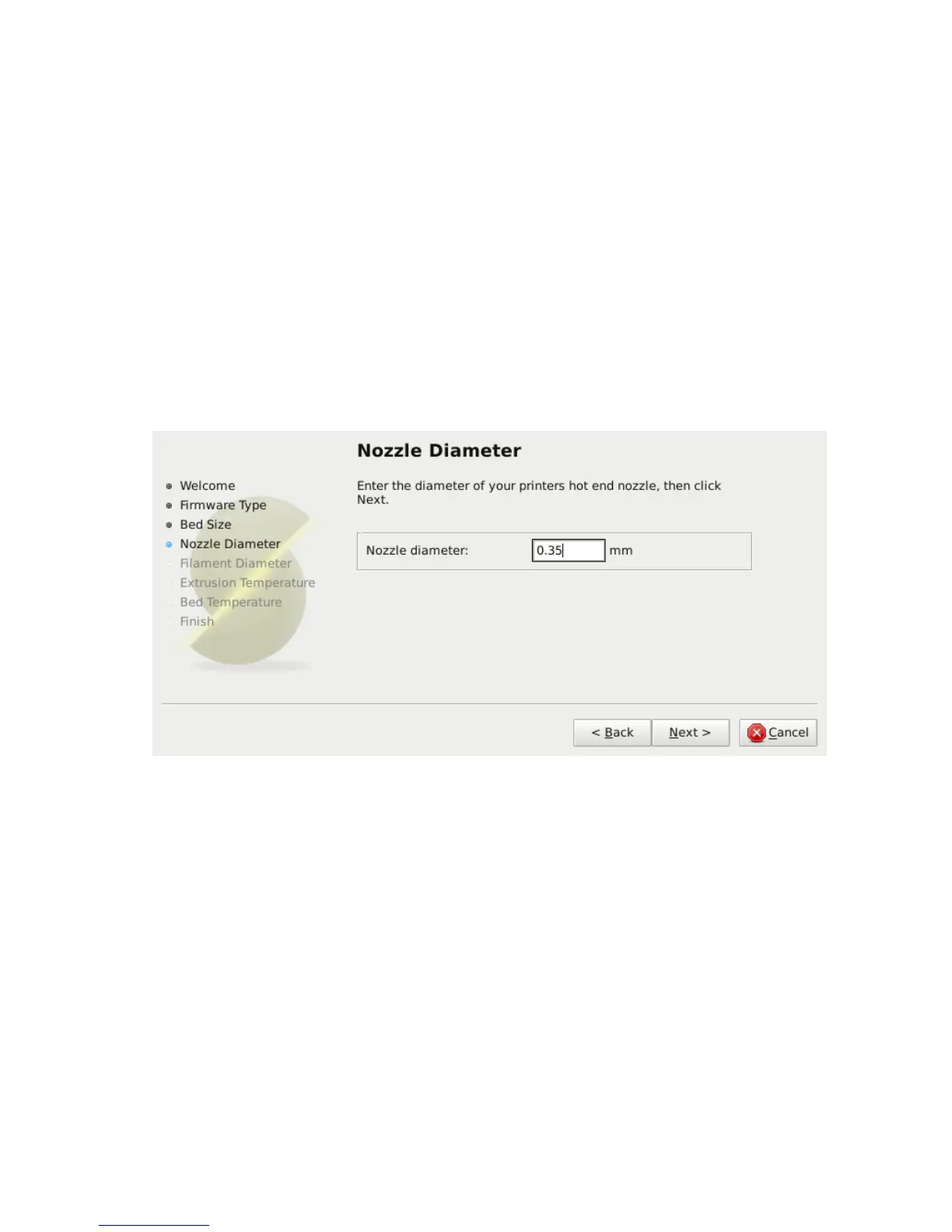

Figure 2.4: Conguration Wizard: Nozzle Diameter
1
http://forums.reprap.org/read.php?1,113374,113953
67
