5-116
Application Manual CDA3000
5 Software functions
Structure of reference processing in the slave

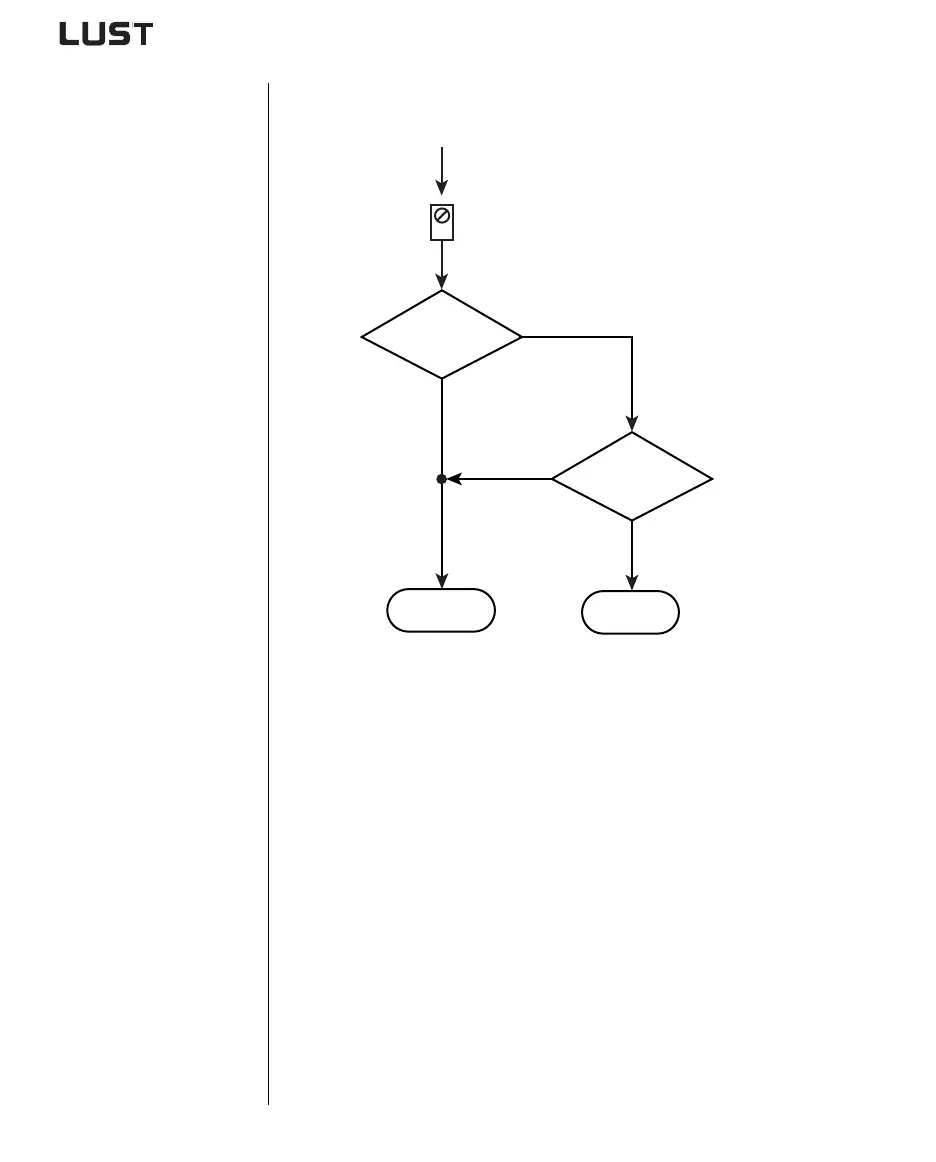

Figure 5.41 Structure of reference processing in the slave
If no telegram with a correct checksum is received within the error trigger
time the power stage is disabled when the time has elapsed.
During the error trigger time the last valid reference is executed.
Telegram received
Checksum OK
Warning message
no
Disable power
stage
Execute reference
ISD01
(Slave)
Reference
Last valid
reference
yes
yes
Error trigger
time elapsed
Error message
yes
no
